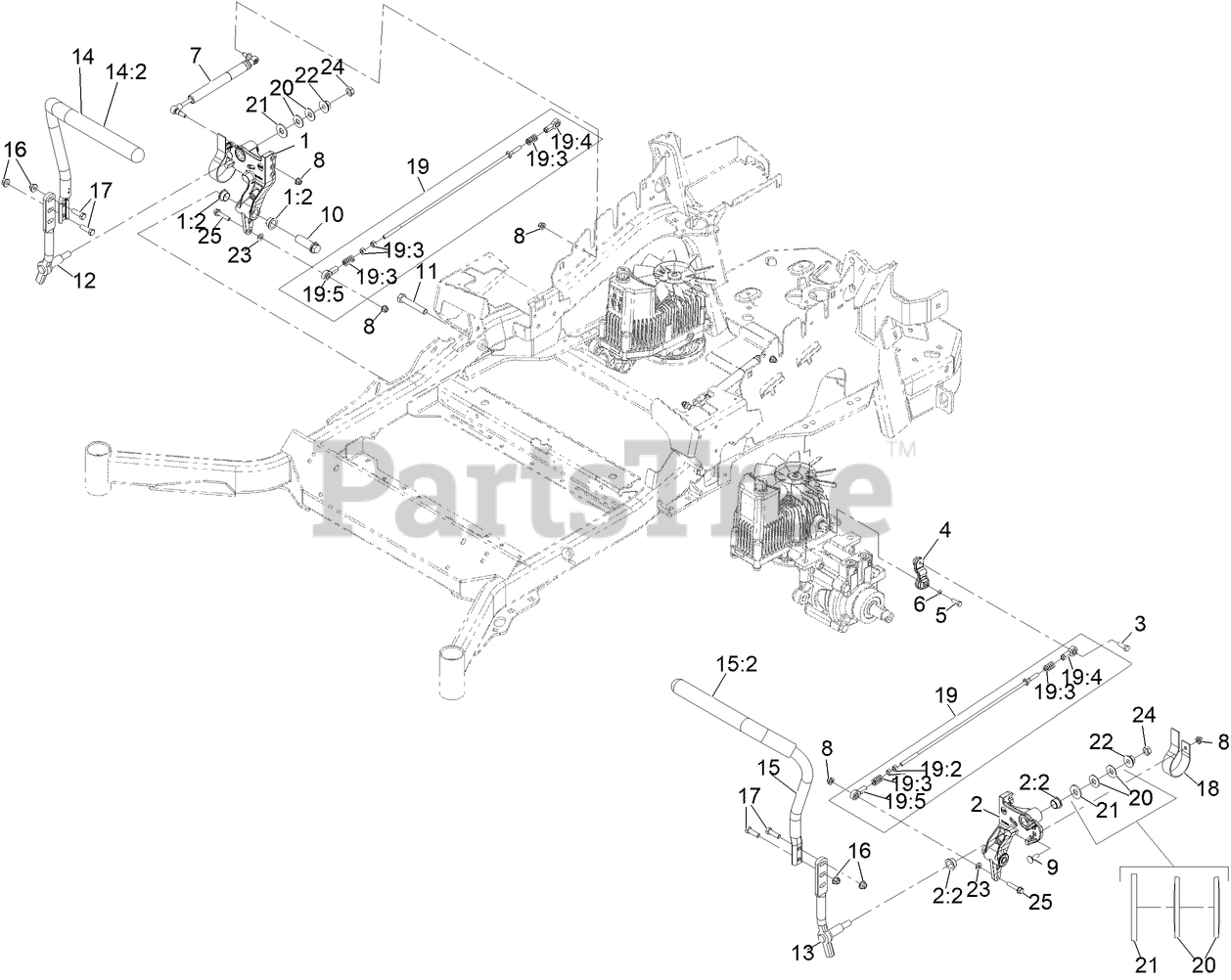

72967 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 418000000 - 999999999) Motion Control Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

Motion Control Assembly Parts Diagram

  • Title

1

Toro 116-0880

RH MOTION CONTROL AND BUSHING ASM

$64.99

$

In Stock, only 3 left!

0

1:2

Toro 109-8054

BUSHING-FLANGE

$5.99

$

In Stock, Qty 20+

0

2

Toro 116-0881

LH MOTION CONTROL AND BUSHING ASM

$64.99

$

In Stock, only 2 left!

0

2:2

Toro 109-8054

BUSHING-FLANGE

$5.99

$

In Stock, Qty 20+

0

3

Toro 116-0648

SCREW-HH, THREAD LOCKING

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$1.49

$

In Stock, Qty 20+

0

4

Toro 109-4581

ARM-CONTROL, PUMP

$10.99

$

In Stock, only 2 left!

0

5

Toro 9080046

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.99

$

In Stock, only 2 left!

0

6

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

7

Toro 146-0859

DAMPER, MOTION CONTROL

$54.99

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 109-5891

HUB-THREADED

$15.99

$

In Stock, Qty 9

0

11

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

12

Toro 116-0039

LEVER-CONTROL MOTION, RH

$59.99

$

In Stock, only 2 left!

0

13

Toro 116-0040

LEVER-CONTROL MOTION, LH

$59.99

$

In Stock, only 2 left!

0

14

Toro 135-4727

HANDLE- RH W/GRIP

$96.99

$

Usually ships in 3-6 days

0

14:2

Toro 109-5668

GRIP-CONTROL, LEVER

$15.99

$

In Stock, only 3 left!

0

15

Toro 135-4476

ASM-HANDLE-LH

$94.99

$

Usually ships in 3-6 days

0

15:2

Toro 109-5668

GRIP-CONTROL, LEVER

$15.99

$

In Stock, only 3 left!

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

18

Toro 109-5575

SPRING-LEAF

$17.99

$

Usually ships in 3-6 days

0

19

Toro 109-8106

FRONT PUMP LINKAGE ASM

$85.99

$

Usually ships in 3-6 days

0

19:2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

19:3

Toro 1-323245

SPRING-COMPRESSION

$7.49

$

In Stock, Qty 20+

0

19:4

Toro 1-633152

BALLJOINT-LH

$23.99

$

In Stock, only 4 left!

0

19:5

Toro 1-543017

BALLJOINT-RH

$23.99

$

In Stock, Qty 7

0

20

Toro 109-9505

WASHER-SPRING

$5.99

$

In Stock, Qty 16

0

21

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

22

Toro 32128-56

NUT-HF

$12.99

$

Usually ships in 3-6 days

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

25

Toro 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 6

0
