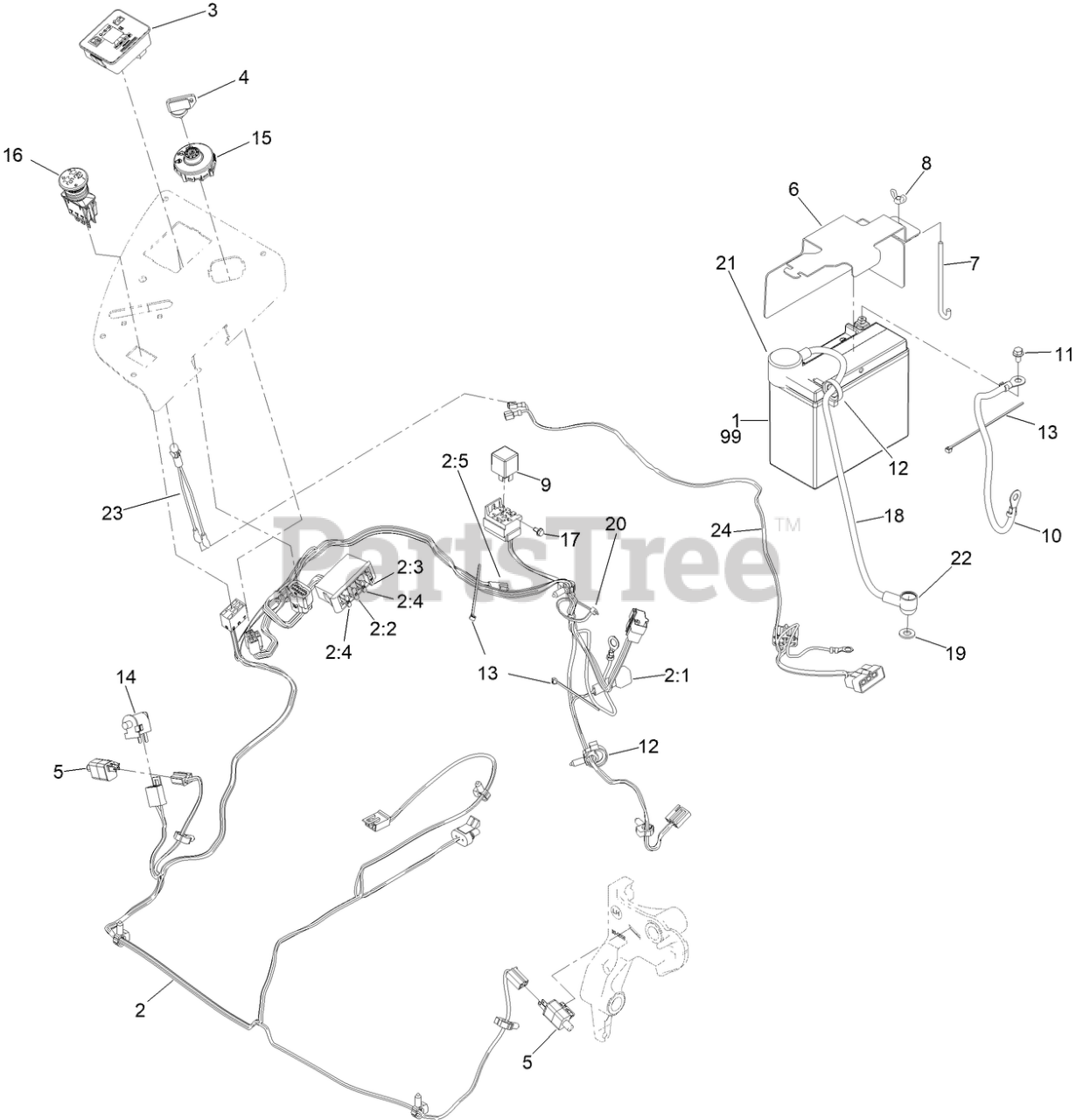

72982 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 414109390) Electrical Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

Electrical Assembly Parts Diagram

  • Title

1

Toro 142-7345

BATTERY-AGM

$185.99

$

In Stock, only 4 left!

0

2

Toro 116-6009

HARNESS-WIRE, MAIN

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$284.99

$

In Stock, Qty 15

0

2:1

Toro 103-3895

DIODE

$70.99

$

In Stock, only 1 left!

0

2:2

Toro 218-578

FUSE-BLADE, 10 AMP

$3.49

$

In Stock, only 4 left!

0

2:3

Toro 109355

FUSE-BLADE, 15 AMP

$4.49

$

In Stock, Qty 8

0

2:4

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

In Stock, Qty 16

0

2:5

Toro 116-0053

CAP-PLUG

$44.99

$

Usually ships in 3-6 days

0

3

Toro 117-3882

FUEL/HOUR METER ASM

$190.99

$

Usually ships in 3-6 days

0

4

Toro 1-603511

KEYS-IGNITION (SPARE PAIR)

$2.99

$

In Stock, Qty 17

0

4

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

5

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

6

Toro 142-6707-03

BRACKET-HOLDDOWN, BATTERY

$22.99

$

Usually ships in 3-6 days

0

7

Toro 142-6406

BOLT-HOLDDOWN

$9.49

$

Usually ships in 3-6 days

0

8

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 20+

0

9

Toro 1-643275

RELAY

$26.99

$

In Stock, Qty 19

0

10

Toro 112-7063

CABLE-BATTERY, BLACK

$52.99

$

Usually ships in 3-6 days

0

11

Toro 126-2713

SCREW-HHF

$5.99

$

In Stock, only 4 left!

0

12

Toro 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

13

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

14

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

15

Toro 137-4100

SWITCH-IGNITION

$30.99

$

In Stock, Qty 20+

0

16

Toro 135-3653

SWITCH, PTO 10A

$75.99

$

In Stock, Qty 20+

0

17

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

18

Toro 115-3864

CABLE-BATTERY, POSITIVE

$34.99

$

In Stock, only 2 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Toro 109-2407

INSULATOR-BATTERY

$5.99

$

In Stock, only 2 left!

0

22

Toro 1-543393

INSULATOR-SOLENOID

$5.99

$

Usually ships in 3-6 days

0

23

Toro 1-643267

INDICATOR-LED, RED

$27.99

$

In Stock, only 2 left!

0

24

Toro 142-6440

HARNESS-INDICATOR LIGHT

$70.99

$

Usually ships in 3-6 days

0

99

Toro 142-7682

HARDWARE KIT, BATTERY

$11.99

$

Usually ships in 3-6 days

0
