72982 (6000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 413000000 - 414109390) Engine, Clutch and Muffler Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

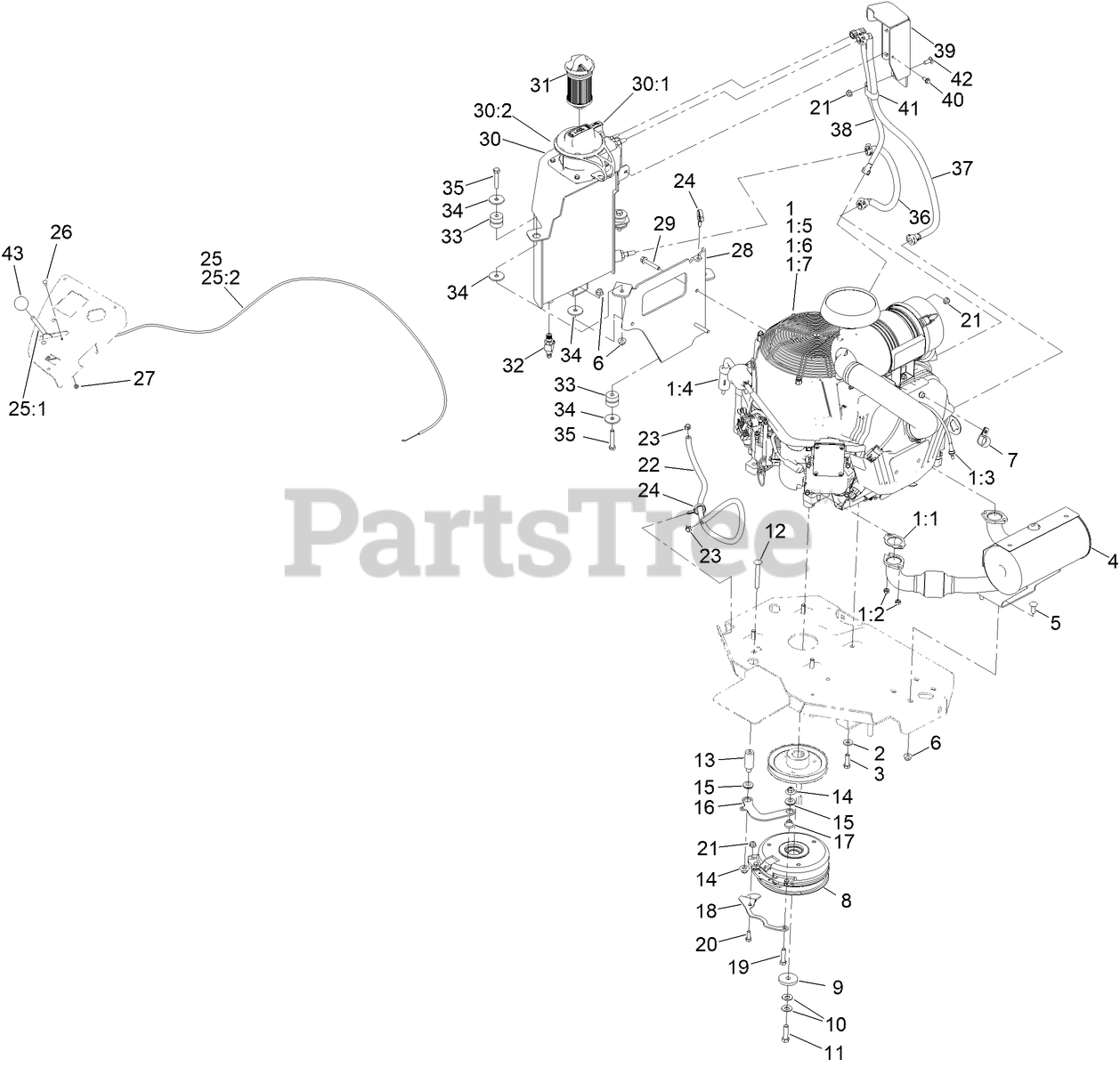

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-VANGUARD

Note: Not serviced separately

$

$

Not available

1

ENGINE-VANGUARD

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Toro 142-6842

GASKET-EXHAUST

$6.99

$

Usually ships in 3-6 days

0

1:2

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

1:3

Toro 142-6844

SENSOR-O2

$174.99

$

Usually ships in 3-6 days

0

1:4

Toro 142-7451

FILTER-FUEL

$12.99

$

Usually ships in 3-6 days

0

1:5

Toro 142-8433

FILTER, OUTER AIR

Note: Not illustrated

$54.99

$

Usually ships in 3-6 days

0

1:6

Toro 142-8434

FILTER, INNER AIR

Note: Not illustrated

$58.99

$

Usually ships in 3-6 days

0

1:7

Toro 142-8435

PLUG, SPARK

Note: Not illustrated

$10.99

$

Usually ships in 3-6 days

0

2

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

4

Toro 142-5876

MUFFLER

$421.99

$

Usually ships in 3-6 days

0

5

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 110-0824

R-CLAMP

$5.99

$

Usually ships in 3-6 days

0

8

Toro 126-4185

CLUTCH KIT

$776.99

$

In Stock, only 1 left!

0

9

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 8

0

10

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

11

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.99

$

In Stock, Qty 12

0

12

Toro 3231-42

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

13

Toro 116-3319

SPACER

$27.99

$

In Stock, only 1 left!

0

14

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 93-5108

GROMMET-RUBBER

$17.99

$

In Stock, only 4 left!

0

16

Toro 116-3317-01

LINK-ANCHOR, CLUTCH

$17.99

$

In Stock, only 3 left!

0

17

Toro 116-3318

SPACER

$21.99

$

In Stock, only 3 left!

0

18

Toro 116-3331-01

BELT-GUIDE

$29.99

$

In Stock, only 1 left!

0

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 109-3491

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

23

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

24

Toro 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

25

Toro 110-5727

THROTTLE CONTROL ASM

$96.99

$

In Stock, only 2 left!

0

25:1

Toro 112-2334

LEVER-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

25:2

Toro 110-5728

See Supercession: 110-5727
(Superseded to 110-5727)

$96.99

$

In Stock, only 2 left!

0

26

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

27

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 142-6608-03

MOUNT-TANK, OIL

$60.99

$

Usually ships in 3-6 days

0

29

Toro 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

30

Toro 142-6840

RESERVOIR-OIL

$

$

Not available

30:1

Toro 142-7452

OIL DIPSTICK ASM

$31.99

$

Usually ships in 3-6 days

0

30:2

Toro 142-7453

OIL TANK CAP ASM

$41.99

$

Usually ships in 3-6 days

0

31

Toro 142-6841

FILTER-OIL

$47.99

$

In Stock, Qty 5

0

32

Toro 103-6602

VALVE-OIL DRAIN

$96.99

$

Usually ships in 3-6 days

0

33

Toro 142-6009

ISOLATOR-TANK

$26.99

$

In Stock, only 2 left!

0

34

Toro 1-213069

WASHER

$2.99

$

In Stock, Qty 20+

0

35

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 142-7420

HOSE-SUPPLY

$26.99

$

Usually ships in 3-6 days

0

37

Toro 142-7421

HOSE-SCAVENGE

$76.99

$

Usually ships in 3-6 days

0

38

Toro 142-6393

HOSE-VENT

$27.99

$

Usually ships in 3-6 days

0

39

Toro 142-6731-03

GUARD-HOSE

$31.99

$

Usually ships in 3-6 days

0

40

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0

41

Toro 120-1959

CLAMP

$3.99

$

Usually ships in 3-6 days

0

42

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

43

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0
