73362 (312-8) - Toro Garden Tractor (SN: 059000001 - 059999999) (1995) Fender And Support Parts Diagram

Garden Tractor

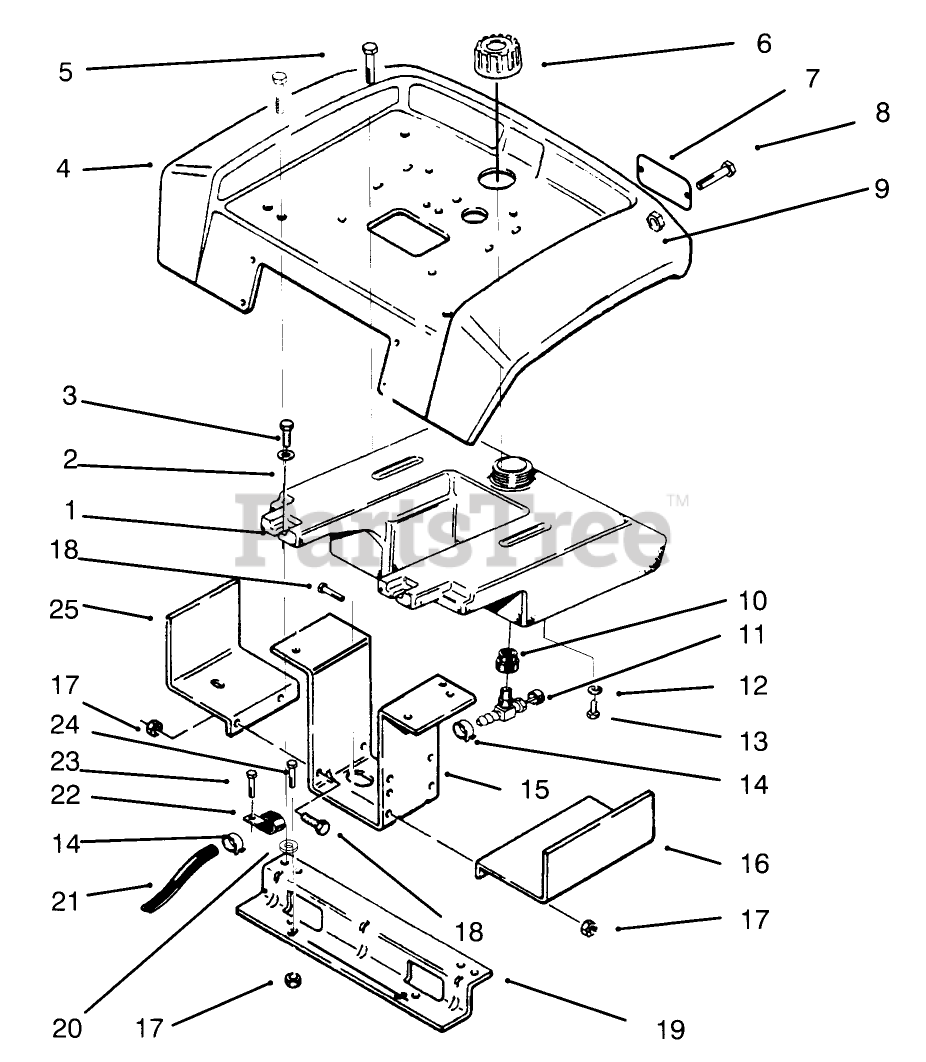

Fender And Support Parts Diagram

  • Title

1

Toro 106234

TANK-FUEL

$

$

Not available

2

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

3

Toro 326697

Bolt

$

$

Currently unavailable

4

Toro 110960

See Supercession: 94-3722-01
(Superseded to 94-3722-01)

$

$

Not available

5

Toro 926694

SCREW

$

$

Not available

6

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

7

Toro 108547

DISCONTINUED
(Superseded to 106557)

$

$

Not available

8

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

10

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

11

Toro 104048

VALVE-FUEL

$41.99

$

In Stock, Qty 15

0

12

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

15

Toro 108464

See Supercession: 108464-03
(Superseded to 108464-03)

$

$

Not available

16

Toro 79-4990

See Supercession: 79-4990-03
(Superseded to 79-4990-03)

$138.99

$

Usually ships in 3-6 days

0

17

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 107951

See Supercession: 95-7665-03
(Superseded to 95-7665-03)

$69.99

$

Usually ships in 3-6 days

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 92-9511

See Supercession: 92-9512
(Superseded to 92-9512)

$43.99

$

Usually ships in 3-6 days

0

22

Toro 8830

CLIP

$

$

Not available

23

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

Usually ships in 3-6 days

0

24

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 106236

See Supercession: 94-6692-03
(Superseded to 94-6692-03)

$

$

Not available
