73401 (314-H) - Toro Garden Tractor (SN: 059000001 - 059000260) (1995) Clutch, Brake And Speed Control Linkage Parts Diagram

Garden Tractor

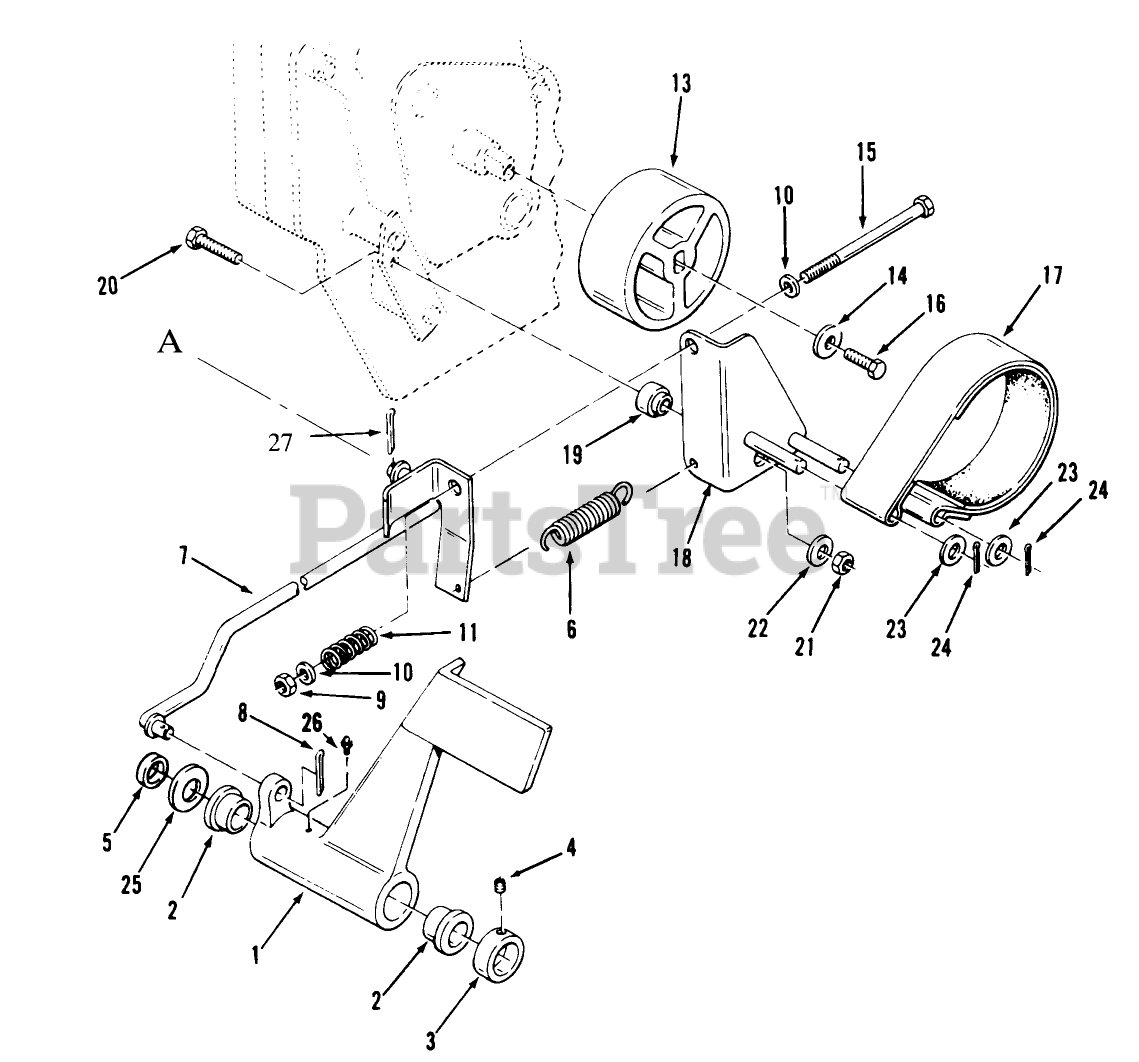

Clutch, Brake And Speed Control Linkage Parts Diagram

  • Title

1

Toro 79-1350

See Supercession: 94-3707-01
(Superseded to 94-3707-01)

Note: In Illustration Center lines A Continue on next page

$

$

Not available

2

Toro 6254

BUSHING

$21.99

$

In Stock, only 2 left!

0

3

Toro 111383

COLLAR

$7.99

$

In Stock, only 1 left!

0

4

Toro 3245-32

SCREW-HSH

$5.99

$

In Stock, only 2 left!

0

5

Toro 107691

SPACER

$

$

Not available

6

Toro 103125

SPRING

$10.99

$

In Stock, only 2 left!

0

7

Toro 109372

DISCONTINUED

$

$

Not available

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, only 3 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 108680

SPRING-COMPRESSION

$

$

Not available

13

Toro 106719

DRUM-BRAKE

$124.99

$

Usually ships in 3-6 days

0

14

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

16

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

Usually ships in 3-6 days

0

17

Toro 109371

ASSY-BRAKE BAND

$195.99

$

In Stock, only 1 left!

0

18

Toro 78-7740

DISCONTINUED

$

$

Not available

19

Toro 109356

DISCONTINUED

$

$

Not available

20

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

23

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 11

0

24

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

25

Toro 1278

WASHER

$2.49

$

In Stock, Qty 14

0

26

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

27

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0
