73420 (416-8) - Toro Garden Tractor (SN: 059000615 - 059000714) (1995) Air Cleaner Parts Diagram

Garden Tractor

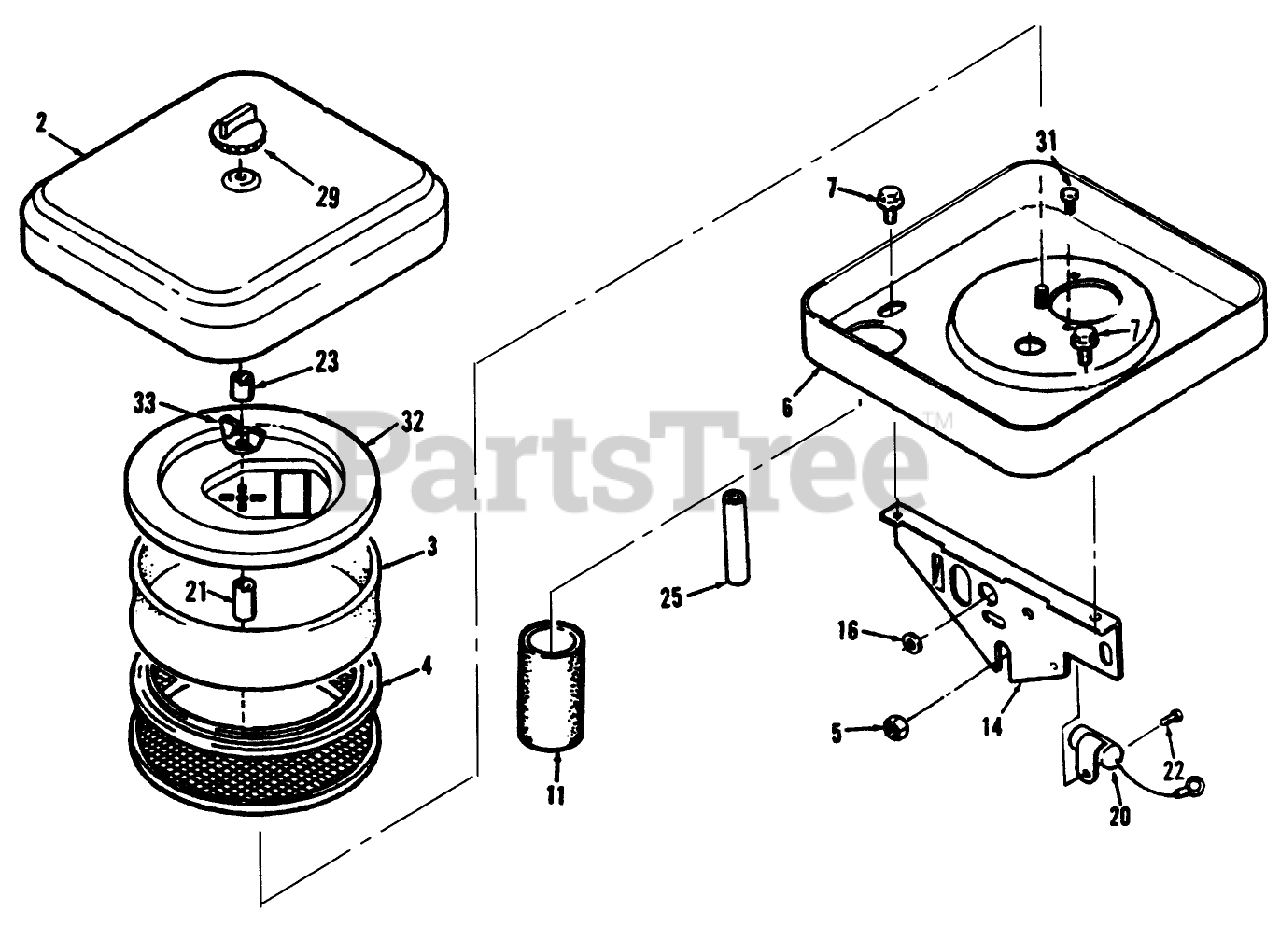

Air Cleaner Parts Diagram

  • Title

2

Toro 94-1840

COVER - AIR CLEANER

$218.99

$

Usually ships in 3-6 days

0

3

Toro NN10176

AIR CLEANER ELEMENT

$

$

Not available

4

Toro NN10174

See Supercession: 82-0620
(Superseded to 82-0620)

$

$

Not available

5

Toro 82-1690

NUT

$

$

Not available

6

Toro 79-6330

DISCONTINUED

$

$

Not available

7

Toro 82-1550

SCREW-TAPPING

$

$

Not available

11

Toro NN10187

DISCONTINUED

$

$

Not available

14

Toro 79-6340

SUPPORT-AIR CLEANER

$

$

Not available

16

Toro 71-6140

GROMMET

$

$

Not available

20

Toro 59-1180

CONDENSER

$51.99

$

Usually ships in 3-6 days

0

22

Toro NN10390

DISCONTINUED

$

$

Not available

23

Toro 79-6520

DISCONTINUED

$

$

Not available

25

Toro 92-0917

DISCONTINUED

$

$

Not available

29

Toro 79-6350

DISCONTINUED
(Superseded to 82-1670)

$

$

Not available

31

Toro 92-0915

DISCONTINUED

$

$

Not available

32

Toro 82-0650

ELEMENT COVER KIT

$

$

Not available

33

Toro 92-0913

DISCONTINUED

$

$

Not available
