73420 (416-8) - Toro Garden Tractor (SN: 059000615 - 059000714) (1995) Frame Hitches Parts Diagram

Garden Tractor

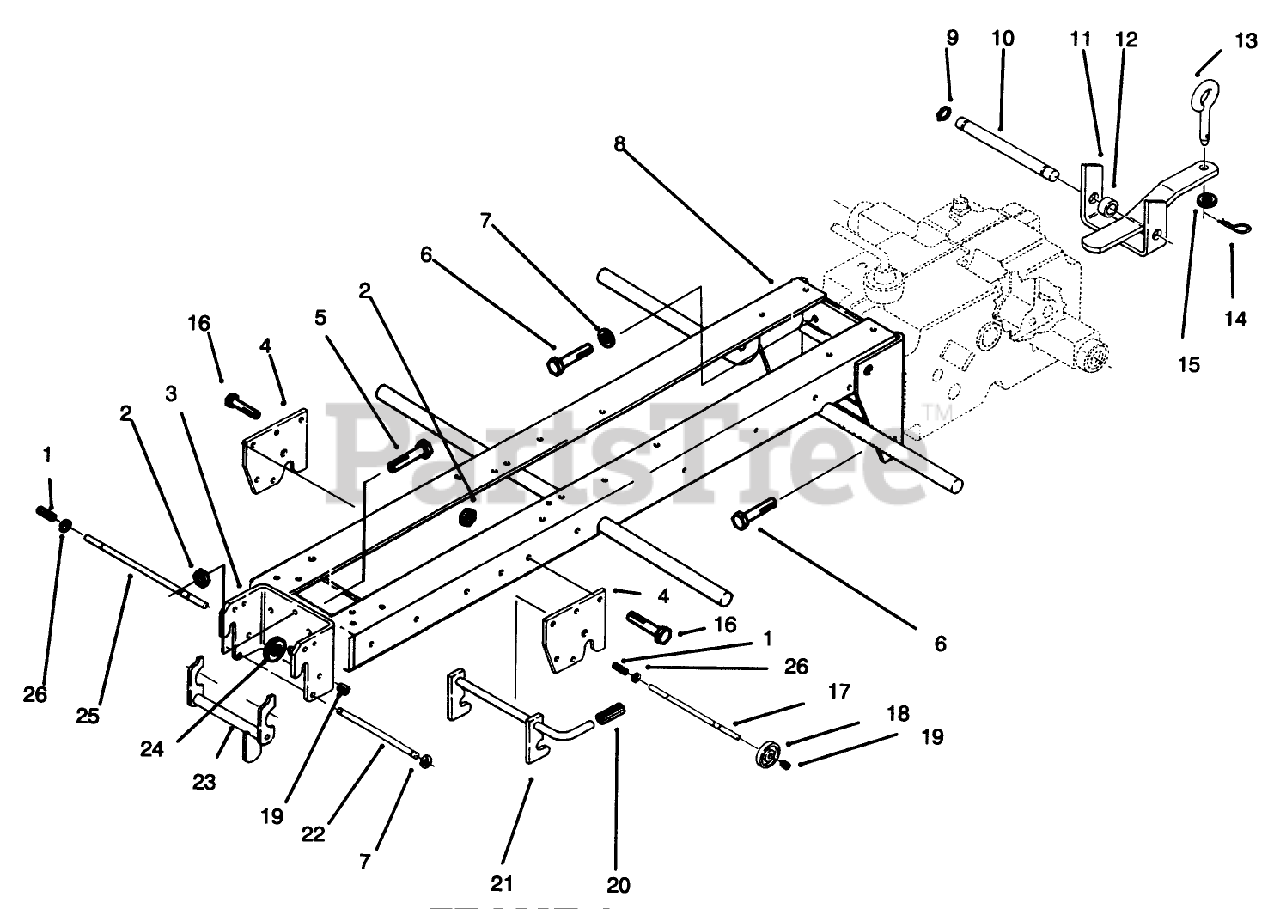

Frame Hitches Parts Diagram

  • Title

1

Toro 8616

SPRING

$4.49

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 101711

See Supercession: 101711-01
(Superseded to 101711-01)

$125.99

$

Usually ships in 3-6 days

0

4

Toro 102644

See Supercession: 102644-01
(Superseded to 102644-01)

$36.99

$

Usually ships in 3-6 days

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

6

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 5

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

8

Toro 78-2680

DISCONTINUED

$

$

Not available

9

Toro 5618

E-RING

$1.49

$

In Stock, only 3 left!

0

10

Toro 105269

PIN-STATIONARY HITCH

$

$

Not available

11

Toro 1644

See Supercession: 98-8083-01
(Superseded to 98-8083-01)

$107.99

$

Usually ships in 3-6 days

0

12

Toro 9791204

SPACER

$

$

Not available

13

Toro 106634

PIN-TOOL

$

$

Not available

14

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

15

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-44

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

17

Toro 101017

LOCK

$33.99

$

Usually ships in 3-6 days

0

18

Toro 83-6520

ROD-LOCK

$50.99

$

Usually ships in 3-6 days

0

19

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

20

Toro 9038

GRIP

$

$

Not available

21

Toro 117930

MID HITCH ASM

$106.99

$

Usually ships in 3-6 days

0

22

Toro 101750

ROD-LATCH PIVOT

$

$

Not available

23

Toro 93-1613

LATCH

$

$

Not available

24

Toro 101707

LOCK

$

$

Not available

25

Toro 101751

ROD-LOCK

$

$

Not available

26

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 13

0
