73420 (416-8) - Toro Garden Tractor (SN: 059000615 - 059000714) (1995) Hood Assembly Parts Diagram

Garden Tractor

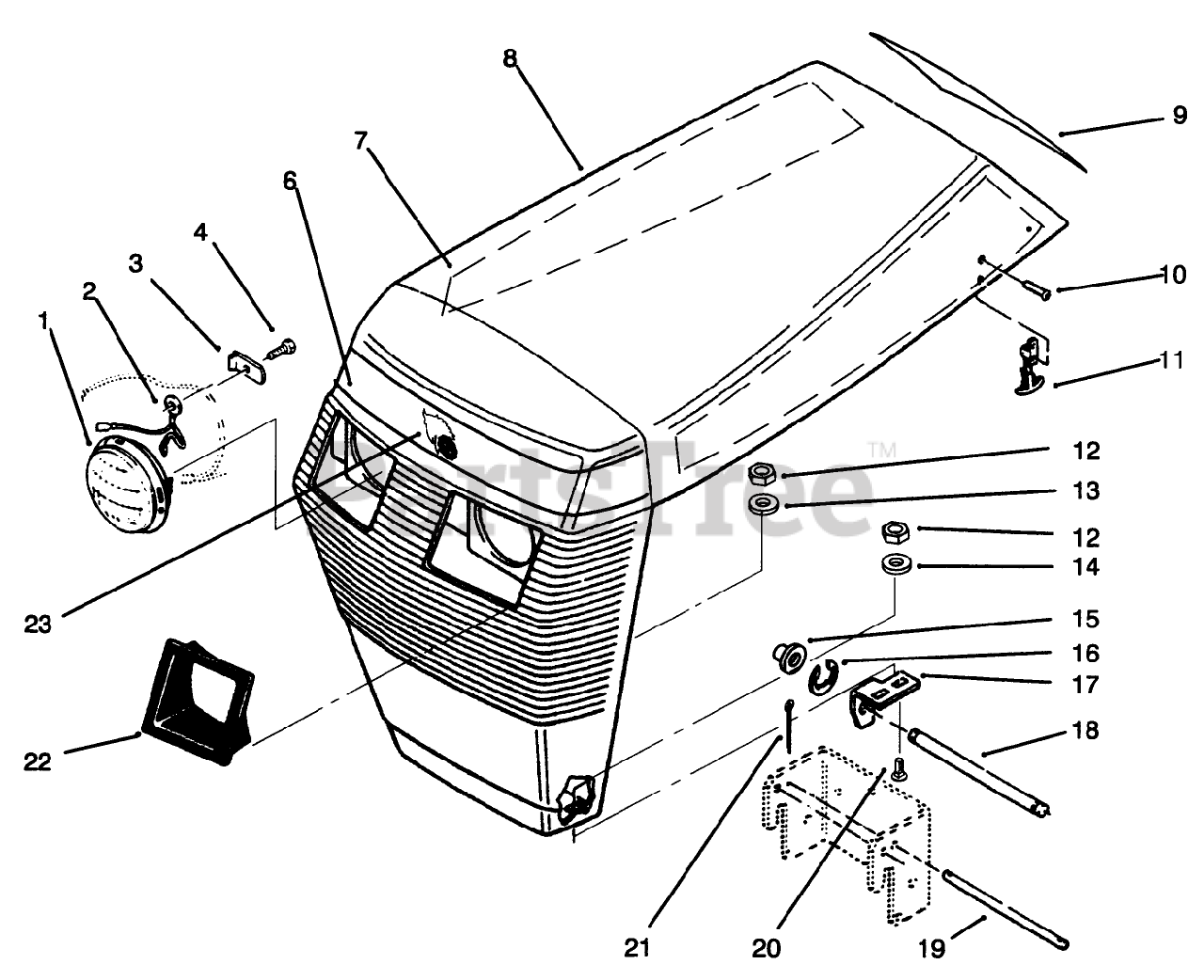

Hood Assembly Parts Diagram

  • Title

1

Toro 102881

HEADLAMP

$

$

Not available

2

Toro 108130

DISCONTINUED

$

$

Not available

3

Toro 109459

LOCK-HEADLIGHT

$8.49

$

In Stock, Qty 6

0

4

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 92-9826

DECAL-FRONT HOOD, TOP

$

$

Not available

7

Toro 92-9825

See Supercession: 106-5848
(Superseded to 106-5848)

$56.99

$

Usually ships in 3-6 days

0

Toro 92-9824

See Supercession: 106-5849
(Superseded to 106-5849)

Note: Not illustrated

$56.99

$

Usually ships in 3-6 days

0

8

Toro 88-2782

DISCONTINUED

$

$

Not available

9

Toro 92-9837

See Supercession: 98-0750
(Superseded to 98-0750)

$

$

Not available

10

Toro 117432

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

11

Toro 117344

HANDLE ASM

$41.99

$

In Stock, only 4 left!

0

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 5979

BUSHING-NYLINER

$3.99

$

In Stock, Qty 10

0

16

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 13

0

17

Toro 116747

BRACKET-GRILL, LH

$14.99

$

In Stock, only 3 left!

0

Toro 116746

BRACKET-GRILL, R H

Note: Not illustrated

$14.99

$

In Stock, Qty 8

0

18

Toro 116745

ROD-GRILL PIVOT

$18.99

$

In Stock, only 2 left!

0

19

Toro 101850

ROD-HOOD STOP

$25.99

$

Usually ships in 3-6 days

0

20

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

22

Toro 109495

DISCONTINUED

$

$

Not available

Toro 109494

DISCONTINUED

Note: Not illustrated

$

$

Not available

23

Toro 92-9836

DISCONTINUED

$

$

Not available
