73420 (416-8) - Toro Garden Tractor (SN: 059000615 - 059000714) (1995) Manual Lift Linkage Parts Diagram

Garden Tractor

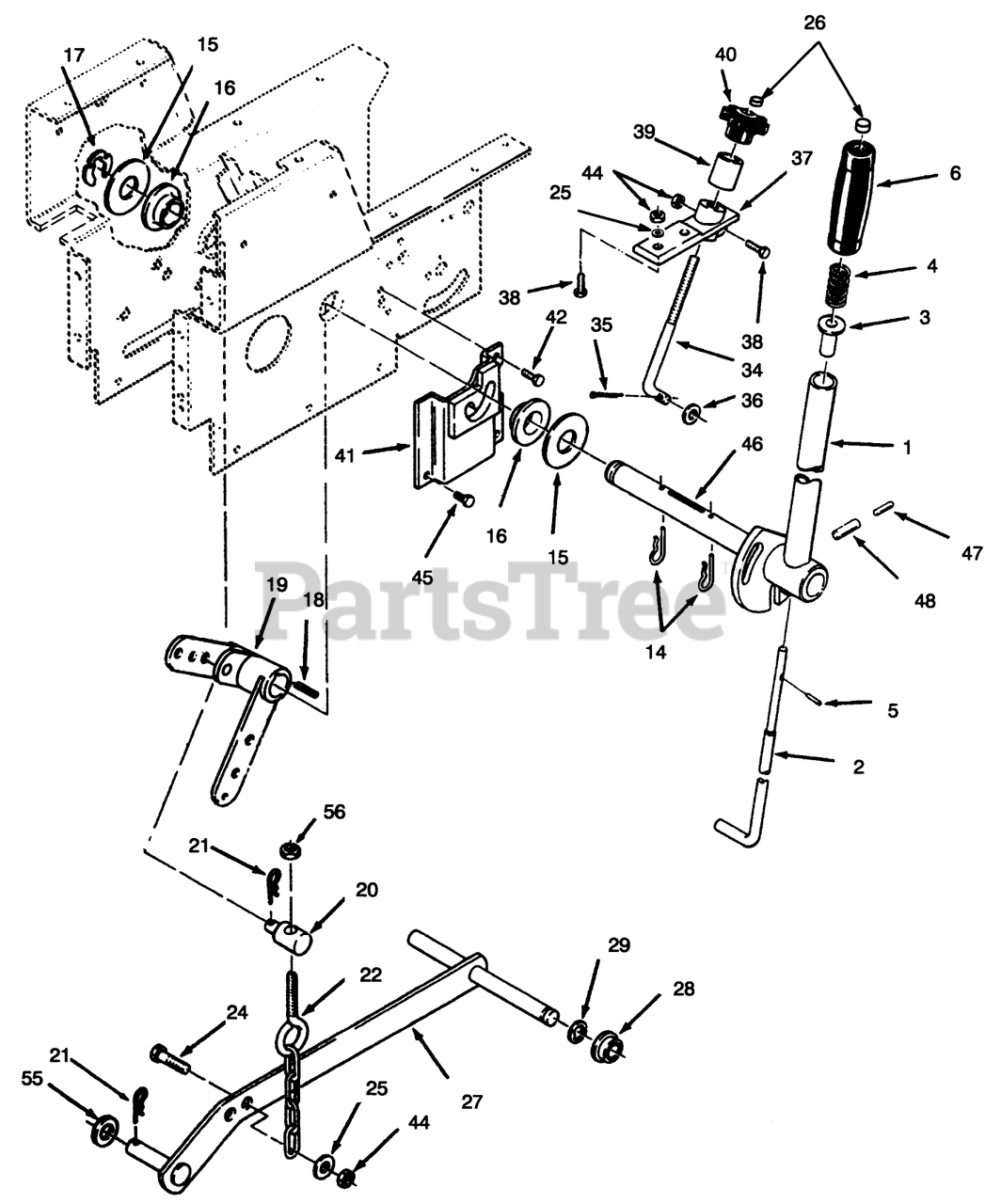

Manual Lift Linkage Parts Diagram

  • Title

1

Toro 108563

See Supercession: 108563-03
(Superseded to 108563-03)

$

$

Not available

2

Toro 106257

ROD-LATCH LIFT

$126.99

$

Usually ships in 3-6 days

0

3

Toro 8130

RETAINER-SPRING

$

$

Not available

4

Toro 3624

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

5

Toro 933148

PIN-SPIROL

$0.99

$

In Stock, only 2 left!

0

6

Toro 6542

HANDGRIP

$

$

Not available

14

Toro 9335074

PIN-HAIR

$5.99

$

In Stock, only 4 left!

0

15

Toro 3256-62

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

16

Toro 106269

BEARING-FLANGE

$10.99

$

Usually ships in 3-6 days

0

17

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 12

0

18

Toro 1121

KEY-SQUARE

$

$

Not available

19

Toro 78-1550

LIFT LEVER ASM

$126.99

$

Usually ships in 3-6 days

0

20

Toro 6739

TRUNNION-LIFT

$27.99

$

In Stock, only 2 left!

0

21

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

22

Toro 106522

CHAIN-LIFT

$

$

Not available

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0

27

Toro 113445

See Supercession: 113445-03
(Superseded to 113445-03)

$149.99

$

Usually ships in 3-6 days

0

28

Toro 6229

BUSHING

$10.99

$

In Stock, only 3 left!

0

29

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

34

Toro 110653

ROD-HEIGHT CONTROL

$59.99

$

Usually ships in 3-6 days

0

35

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

36

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

37

Toro 106345

See Supercession: 106345-03
(Superseded to 106345-03)

$

$

Not available

38

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 106258

See Supercession: 106258-03
(Superseded to 106258-03)

$

$

Not available

40

Toro 5280

KNOB-LIFT CONTROL

$

$

Not available

41

Toro 106411

See Supercession: 106411-03
(Superseded to 106411-03)

$

$

Not available

42

Toro 9266944

See Supercession: 926694
(Superseded to 92-6694)

$

$

Not available

44

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

45

Toro 926696

See Supercession: 9266964
(Superseded to 9266964)

$

$

Not available

46

Toro 108565

SHAFT-LIFT LEVER

$

$

Not available

47

Toro 32121-103

PIN-SPRING

$

$

Not available

48

Toro 32121-25

PIN-ROLL

$4.99

$

Usually ships in 3-6 days

0

55

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

56

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
