73422 (416-8) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) Pto Clutch System Parts Diagram

Garden Tractor

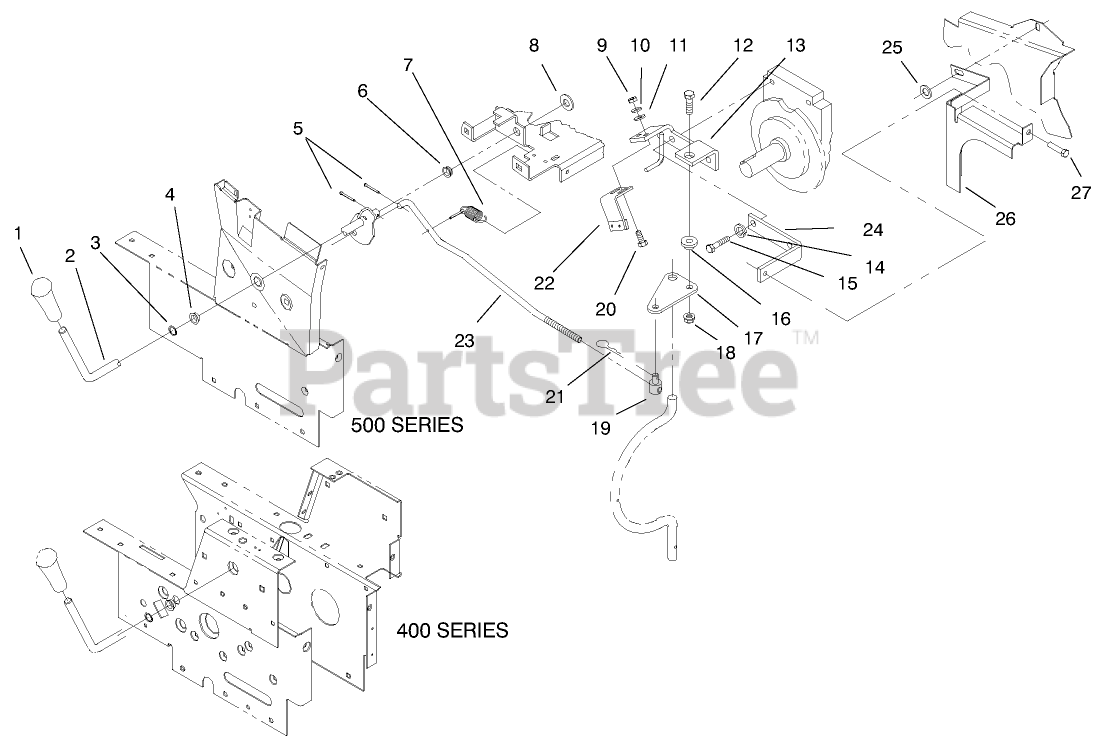

Pto Clutch System Parts Diagram

  • Title

1

Toro 94-3727

DISCONTINUED

$

$

Not available

2

Toro 94-3701

PTO CLUTCH LEVER ASM

$94.99

$

Usually ships in 3-6 days

0

3

Toro 32151-11

RING-EXT GRIP

$12.99

$

In Stock, only 2 left!

0

4

Toro 5666

BUSHING-NYLINER

$16.99

$

In Stock, Qty 5

0

5

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

7

Toro 103125

SPRING

$10.99

$

In Stock, only 1 left!

0

8

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 2 left!

0

9

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 3 left!

0

10

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

13

Toro 113853-03

Bracket-PTO

$

$

Currently unavailable

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 104859

SPACER-LIFT LINK

$55.99

$

Usually ships in 3-6 days

0

17

Toro 110669

PLATE

$33.99

$

Usually ships in 3-6 days

0

18

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, only 2 left!

0

19

Toro 110656

See Supercession: 101161
(Superseded to 101161)

$

$

Not available

20

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

21

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

22

Toro 94-6652

BRAKE ASM

$50.99

$

In Stock, only 4 left!

0

23

Toro 111052

ROD-PTO CLUTCH

$93.99

$

Usually ships in 3-6 days

0
