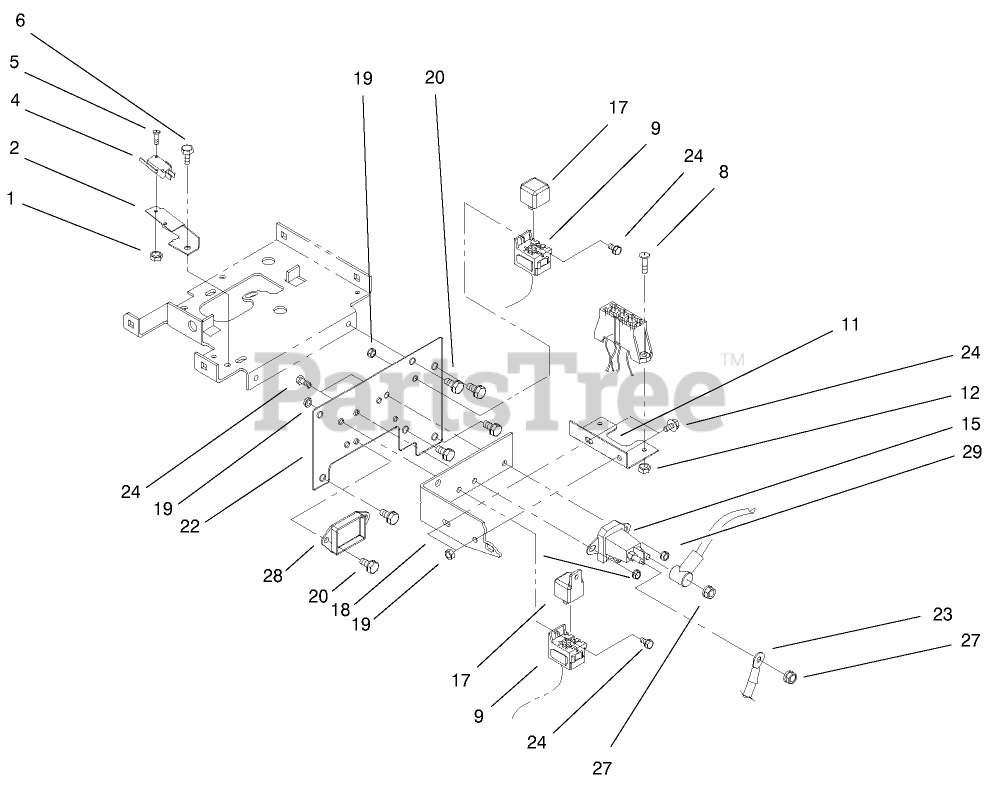

73449 (314-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Hoodstand Electrical Mounting Assembly Parts Diagram

Garden Tractor

Hoodstand Electrical Mounting Assembly Parts Diagram

  • Title

1

Toro 9157324

NUT-HEX, NYL INS

$1.49

$

In Stock, Qty 7

0

2

Toro 115411

DISCONTINUED

$

$

Not available

4

Toro 111332

SWITCH

$14.99

$

In Stock, Qty 7

0

5

Toro 9109484

SCREW-PPH

$0.99

$

In Stock, Qty 10

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

8

Toro 9107944

SCREW-PAN

$2.99

$

Usually ships in 3-6 days

0

9

Toro 100-3537

HARNESS-WIRE,KOHLER,12HP

$599.99

$

Usually ships in 3-6 days

0

9

Toro 100-3538

HARNESS-WIRE,KOHLER,14HP

$728.99

$

Usually ships in 3-6 days

0

11

Toro 117331-03

FUSE HOLDER

$

$

Not available

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 28-4210

SOLENOID

$85.99

$

In Stock, only 4 left!

0

17

Toro 98-7249

RELAY

$25.99

$

In Stock, Qty 11

0

18

Toro 100-6090-03

BRACKET-BELT

$

$

Not available

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 32144-14

SCREW-HWHTF

$5.49

$

In Stock, only 2 left!

0

22

Toro 100-6091-03

PLATE-HOODSTAND, FRONT

$

$

Not available

23

Toro 100-3540

CABLE-BATTERY, POSITIVE

$37.99

$

Usually ships in 3-6 days

0

24

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 8

0

27

Toro 32149-1

NUT-KEPS

$6.99

$

In Stock, only 2 left!

0

28

Toro 99-3700

MODULE

$165.99

$

In Stock, only 3 left!

0

29

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0
