73449 (314-8) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Pto Clutch Cover Assembly Parts Diagram

Garden Tractor

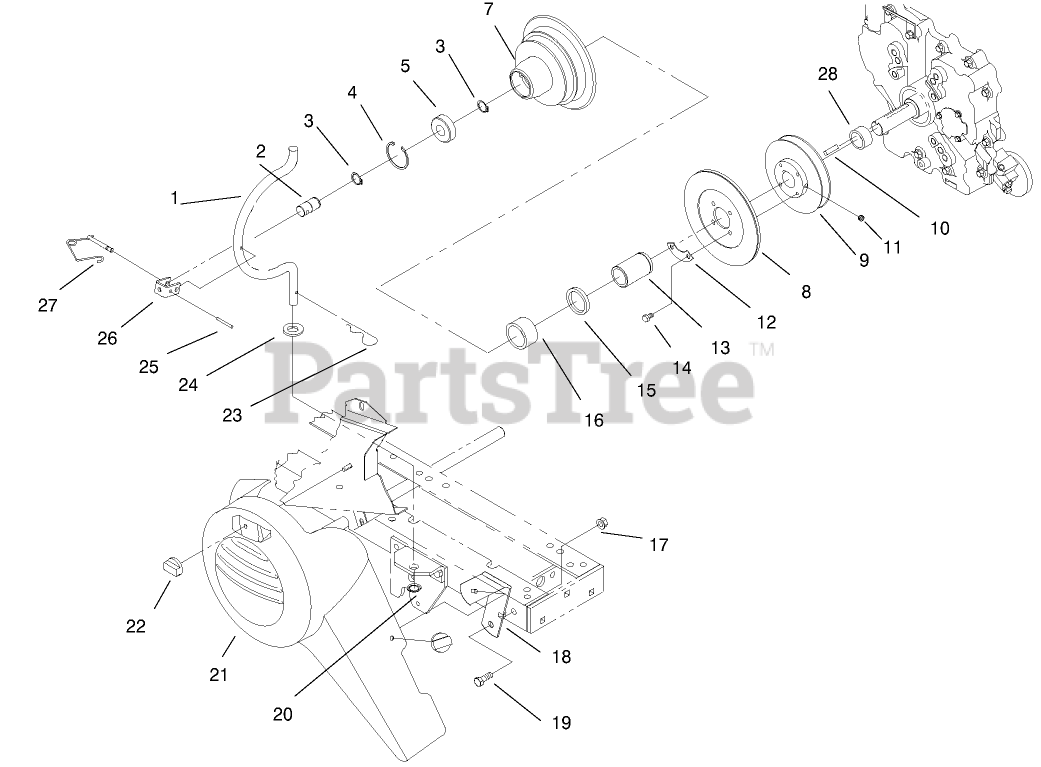

Pto Clutch Cover Assembly Parts Diagram

  • Title

1

Toro 113108

ROD-HOUSING

$148.99

$

Usually ships in 3-6 days

0

2

Toro 102872

SHAFT-PTO

$

$

Not available

3

Toro 32120-72

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

4

Toro 32120-62

RING-RETAINING

$5.49

$

In Stock, Qty 12

0

5

Toro 109842

BEARING-BALL

$34.99

$

In Stock, Qty 8

0

7

Toro 103478-01

DISCONTINUED
(Superseded to 103478-03)

$

$

Not available

8

Toro 94-6650

ASS'Y-CLUTCH PLATE

$203.99

$

In Stock, only 1 left!

0

9

Toro 7466

PULLEY

$209.99

$

Usually ships in 3-6 days

0

10

Toro 105453

KEY

$2.49

$

In Stock, only 2 left!

0

11

Toro 3246-2

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

12

Toro 6659

RETAINER

$20.99

$

In Stock, only 3 left!

0

13

Toro 6658

RACE-BEARING

$

$

Not available

14

Toro 9080026

See Supercession: 110-9381
(Superseded to 110-9381)

$1.99

$

In Stock, Qty 5

0

15

Toro 6663

SEAL-OIL

$

$

Not available

16

Toro 6662

See Supercession: 106769
(Superseded to 106769)

$68.99

$

In Stock, only 4 left!

0

17

Toro 32128-40

NUT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

18

Toro 94-3726-03

BELT COVER BRKT ASM

$

$

Not available

19

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

20

Toro 106695

RING-REINFORCED CIRC

$2.99

$

In Stock, only 2 left!

0

21

Toro 94-3704

GUARD - BELT

$

$

Not available

22

Toro 94-3735

NUT - WING

$10.99

$

Usually ships in 3-6 days

0

23

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 7

0

24

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

25

Toro 933274

PIN-ROLL

$2.49

$

In Stock, only 3 left!

0

26

Toro 113107

CLEVIS

$31.99

$

In Stock, only 2 left!

0

27

Toro 111314

LOCKING PIN ASM

$29.99

$

In Stock, only 2 left!

0

28

Toro 100-3549

SPACER-CRANKSHAFT

$19.99

$

Usually ships in 3-6 days

0
