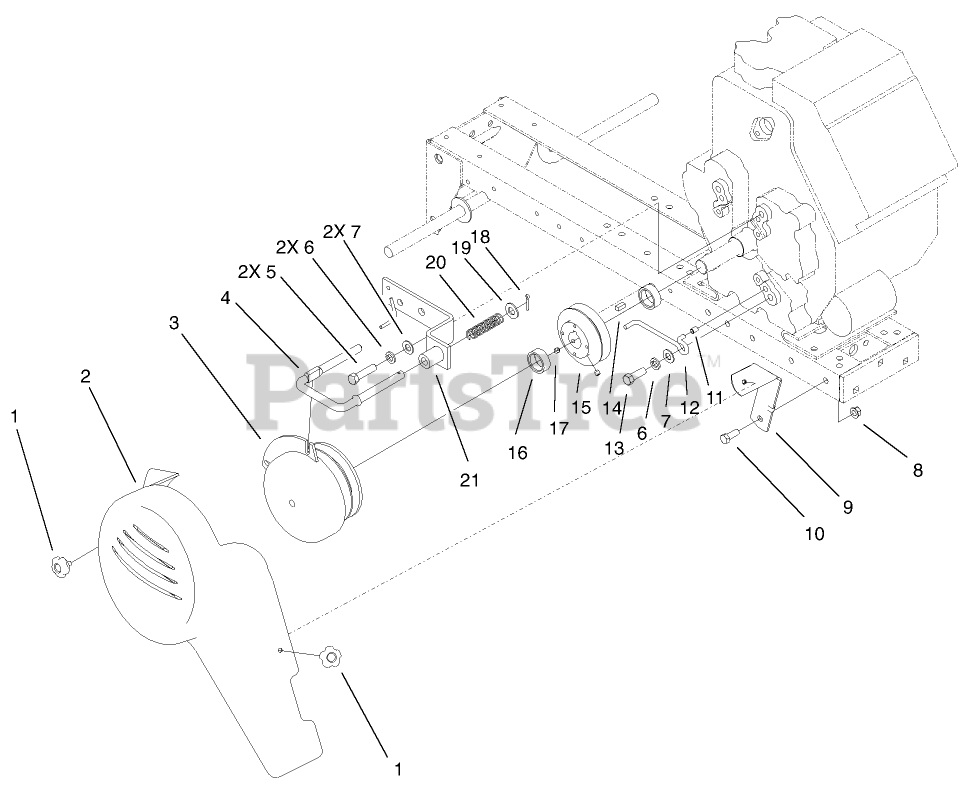

73450 (315-8) - Toro Garden Tractor (SN: 220000001 - 220999999) (2002) Electric Clutch And Cover Assembly Parts Diagram

Garden Tractor

Electric Clutch And Cover Assembly Parts Diagram

  • Title

1

Toro 105-1406

KNOB

$15.99

$

Usually ships in 3-6 days

0

2

Toro 105-1483

GUARD-BELT

$

$

Not available

3

Toro 104-2472

CLUTCH-ELECTRIC, CLASSIC

$1774.99

$

Usually ships in 3-6 days

0

4

Toro 104-4307

ROD-STOP, PTO

$

$

Not available

5

Toro 324-7

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

6

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

8

Toro 32128-40

NUT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

9

Toro 105-1407-01

See Supercession: 105-1407-03
(Superseded to 105-1407-03)

$

$

Not available

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 112841

CAP

$

$

Not available

12

Toro 98-1700

WIRE-GUIDE, BELT

$

$

Not available

13

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 105453

KEY

$2.49

$

In Stock, only 2 left!

0

15

Toro 7466

PULLEY

$209.99

$

Usually ships in 3-6 days

0

16

Toro 100-3549

SPACER-CRANKSHAFT

$19.99

$

Usually ships in 3-6 days

0

17

Toro 3246-2

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

18

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, only 4 left!

0

19

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 95-4256

SPRING-COMPRESSION

$3.99

$

Usually ships in 3-6 days

0

21

Toro 100-8739-03

PTO STOP ASM

$

$

Not available
