73450 (315-8) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) Transmission Case Assembly Parts Diagram

Garden Tractor

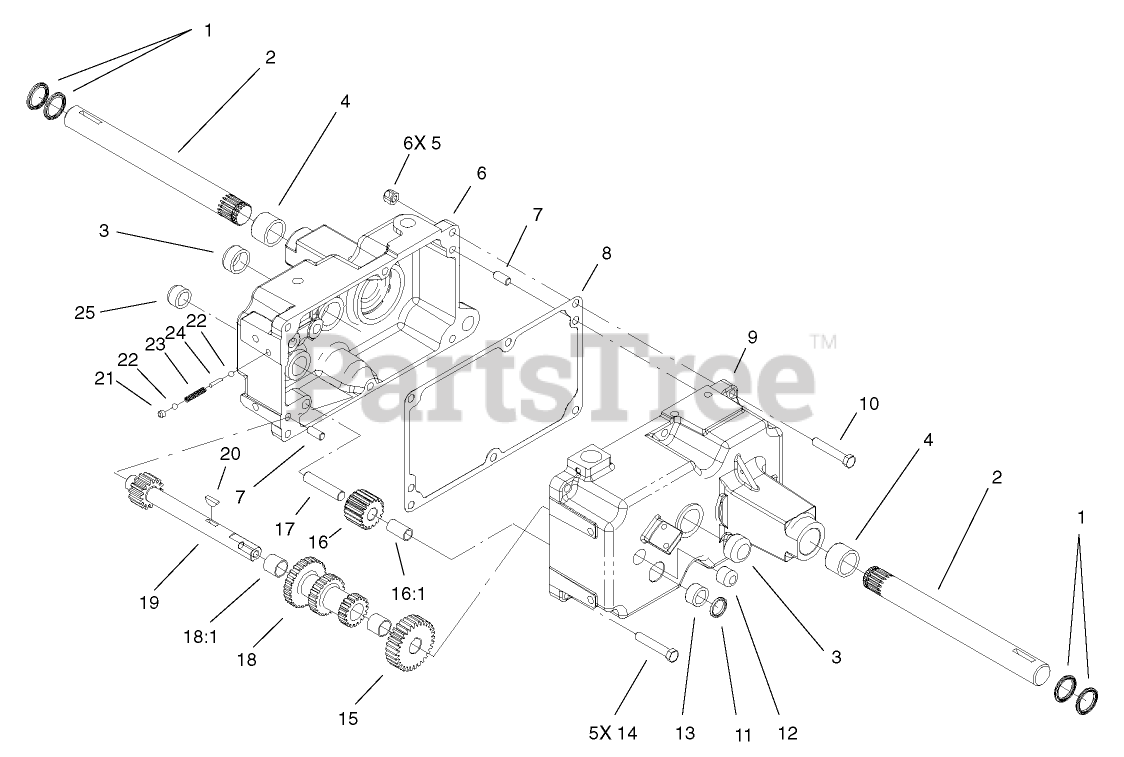

Transmission Case Assembly Parts Diagram

  • Title

1

Toro 100443

SEAL-OIL

$16.99

$

In Stock, Qty 9

0

2

Toro 105875

AXLE-REAR

$470.99

$

Usually ships in 3-6 days

0

3

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

4

Toro 9416

BEARING

$

$

Not available

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 111200-01

CASE-RH TRANS

$

$

Not available

7

Toro 3915

PIN-DOWEL

$8.99

$

Usually ships in 3-6 days

0

8

Toro 3912

GASKET-TRANSMISSION

$11.99

$

In Stock, Qty 7

0

9

Toro 95-5143-01

CASE-TRANS LH

$1285.99

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 100441

SEAL-OIL

$10.99

$

In Stock, Qty 8

0

12

Toro 83-2890

DISCONTINUED

$

$

Not available

13

Toro 1523

BEARING-NEEDLE

$47.99

$

Usually ships in 3-6 days

0

14

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

16

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$182.99

$

Usually ships in 3-6 days

0

17

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available

18

Toro 7269

GEAR-CLUSTER

$

$

Not available

19

Toro 83-3530

SHAFT-CLUSTER

$629.99

$

Usually ships in 3-6 days

0

20

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

21

Toro 1243

CUP-PLUG

$6.49

$

In Stock, Qty 5

0

22

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

23

Toro 106030

SPRING-SHIFT STOP

$3.49

$

In Stock, Qty 13

0

24

Toro 5614

PIN-SHIFT

$

$

Not available

25

Toro 1529

BEARING-NEEDLE

$56.99

$

Usually ships in 3-6 days

0
