73501 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000411) (1995) Electrical System Parts Diagram

Garden Tractor

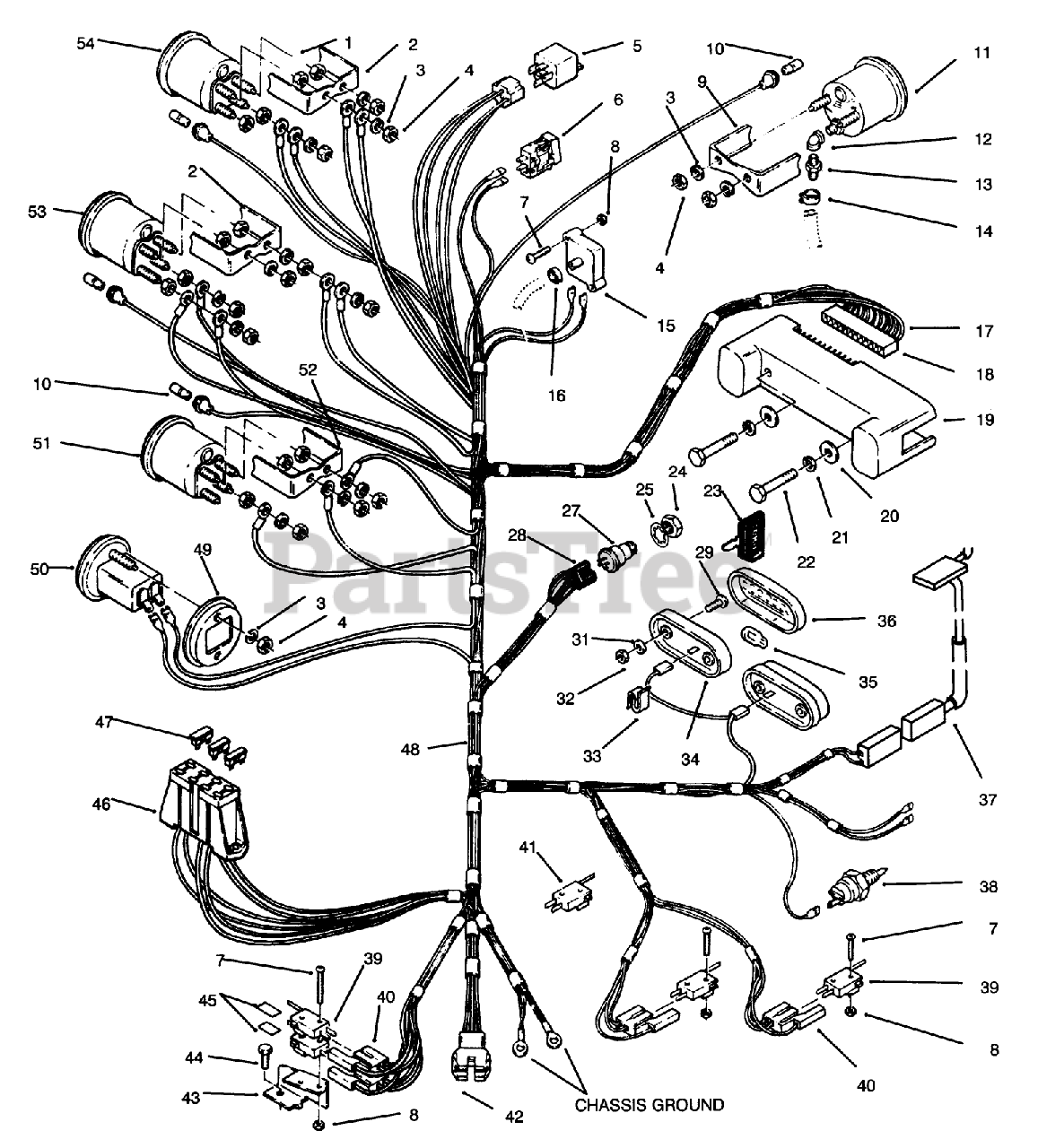

Electrical System Parts Diagram

  • Title

2

Toro 78-0080

CLAMP-MOUNTING

$

$

Not available

3

Toro 3255-25

See Supercession: 3255-20
(Superseded to 3255-20)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3217-27

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro 116397

RELAY

$43.99

$

In Stock, only 1 left!

0

6

Toro 113191

See Supercession: 107-9238
(Superseded to 107-9238)

$65.99

$

Usually ships in 3-6 days

0

7

Toro 910948

See Supercession: 9109484
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

8

Toro 915732

See Supercession: 9157324
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

9

Toro 78-0100

Bracket-Mounting

$

$

Currently unavailable

10

Toro 79-0450

DISCONTINUED

$

$

Not available

Toro 79-0460

DISCONTINUED
(Superseded to 79-0450)

Note: Not illustrated

$

$

Not available

11

Toro 79-2660

DISCONTINUED

$

$

Not available

12

Toro 943021

ELBOW

$

$

Not available

13

Toro 105076

DISCONTINUED

$

$

Not available

14

Toro 950154

DISCONTINUED

$

$

Not available

15

Toro 114270

DISCONTINUED

$

$

Not available

16

Toro 114767

DISCONTINUED

$

$

Not available

17

Toro 114633

Terminal

$

$

Currently unavailable

18

Toro 114632

Connector-Male

$

$

Currently unavailable

19

Toro 79-2130

DISCONTINUED

$

$

Not available

20

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3253-15

WASHER-LOCK

$1.99

$

Usually ships in 3-6 days

0

22

Toro 910783

SCREW

$

$

Not available

23

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

24

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

25

Toro 9201604

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

27

Toro 111216

See Supercession: 103990
(Superseded to 103990)

$30.99

$

In Stock, Qty 9

0

28

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 7

0

29

Toro 3250-31

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

32

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

33

Toro 3023

DISCONTINUED

$

$

Not available

34

Toro 105202

DISCONTINUED

$

$

Not available

35

Toro 109045

LIGHT BULB

$

$

Not available

36

Toro 112564

LENS-TAIL LIGHT

$10.99

$

In Stock, only 4 left!

0

37

Toro 38-1420

SWITCH-SEAT

$

$

Not available

38

Toro 113193

DISCONTINUED

$

$

Not available

39

Toro 111332

SWITCH

$14.99

$

In Stock, Qty 7

0

40

Toro 111498

CONNECTOR BODY

$5.99

$

In Stock, only 2 left!

0

41

Toro 115230

SWITCH - CLUTCH

$38.99

$

In Stock, only 1 left!

0

42

Toro 113119

9-CIRCUIT CAP

$

$

Not available

43

Toro 111488

DISCONTINUED
(Superseded to 115411)

$

$

Not available

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

45

Toro 111642

BARRIER - SWITCH

$

$

Not available

46

Toro 120930

See Supercession: 67-7160
(Superseded to 67-7160)

$21.99

$

In Stock, only 2 left!

0

47

Toro 114594

DUP PART SEE $BOOK

$

$

Not available

Toro 109101

FUSE-BLADE, 20 AMP

$2.49

$

In Stock, Qty 11

0

Toro NN10277

FUSE-30 AMP

$

$

Not available

48

Toro 79-3630

DISCONTINUED

$

$

Not available

49

Toro 78-3320

CLAMP-HOUR METER

$12.99

$

Usually ships in 3-6 days

0

50

Toro 78-0020

See Supercession: 66-2950
(Superseded to 66-2950)

$

$

Not available

51

Toro 78-0060

TACHOMETER

$

$

Not available

52

Toro 78-0090

BRACKET - GAUGE MOUNT

$

$

Not available

53

Toro 78-0040

See Supercession: 95-3830
(Superseded to 95-3830)

$236.99

$

Usually ships in 3-6 days

0

54

Toro 78-0030

DISCONTINUED
(Superseded to 17-8049)

$

$

Not available

Toro 117257

DISCONTINUED

Note: Not illustrated

$

$

Not available
