73501 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000411) (1995) Engine And Exhaust Parts Diagram

Garden Tractor

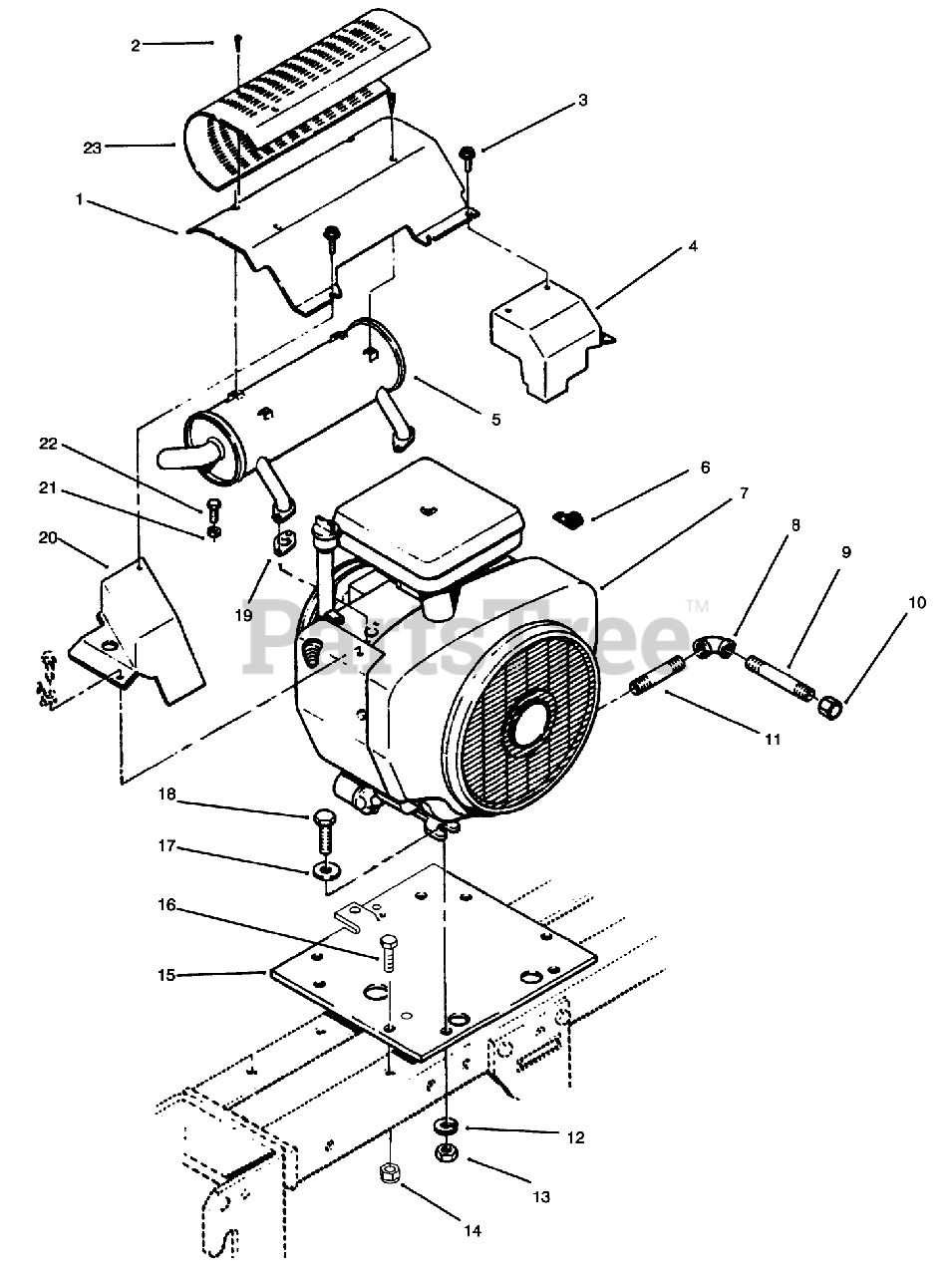

Engine And Exhaust Parts Diagram

  • Title

1

Toro 114217

See Supercession: 94-1803
(Superseded to 94-1803)

$

$

Not available

2

Toro 114888

DISCONTINUED

$

$

Not available

3

Toro 12-3270

SCREW

$3.99

$

In Stock, only 2 left!

0

4

Toro 114216

See Supercession: 114216-03
(Superseded to 114216-03)

$

$

Not available

5

Toro 116471

MUFFLER-EXHAUST

$1741.99

$

Usually ships in 3-6 days

0

6

Toro 8830

CLIP

$

$

Not available

7

Toro 79-5220

See Supercession: 95-7691
(Superseded to 95-7691)

$

$

Not available

8

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

Usually ships in 3-6 days

0

9

Toro 114763

PIPE-NIPPLE 3/8 X 4"

$15.99

$

Usually ships in 3-6 days

0

10

Toro 288-4

CAP-PIPE

$23.99

$

Usually ships in 3-6 days

0

11

Toro 114636

See Supercession: 289-45
(Superseded to 289-45)

$

$

Not available

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 4 left!

0

13

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 15

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 116609

PLATE-ENGINE *B

$155.99

$

Usually ships in 3-6 days

0

16

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-8

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 57-9210

GASKET

$42.99

$

In Stock, only 2 left!

0

20

Toro 114215

DISCONTINUED
(Superseded to 114215-03)

$

$

Not available

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 115783

SHIELD

$

$

Not available
