73501 (520-H) - Toro Garden Tractor (SN: 059000001 - 059000411) (1995) Transaxle Assembly Parts Diagram

Garden Tractor

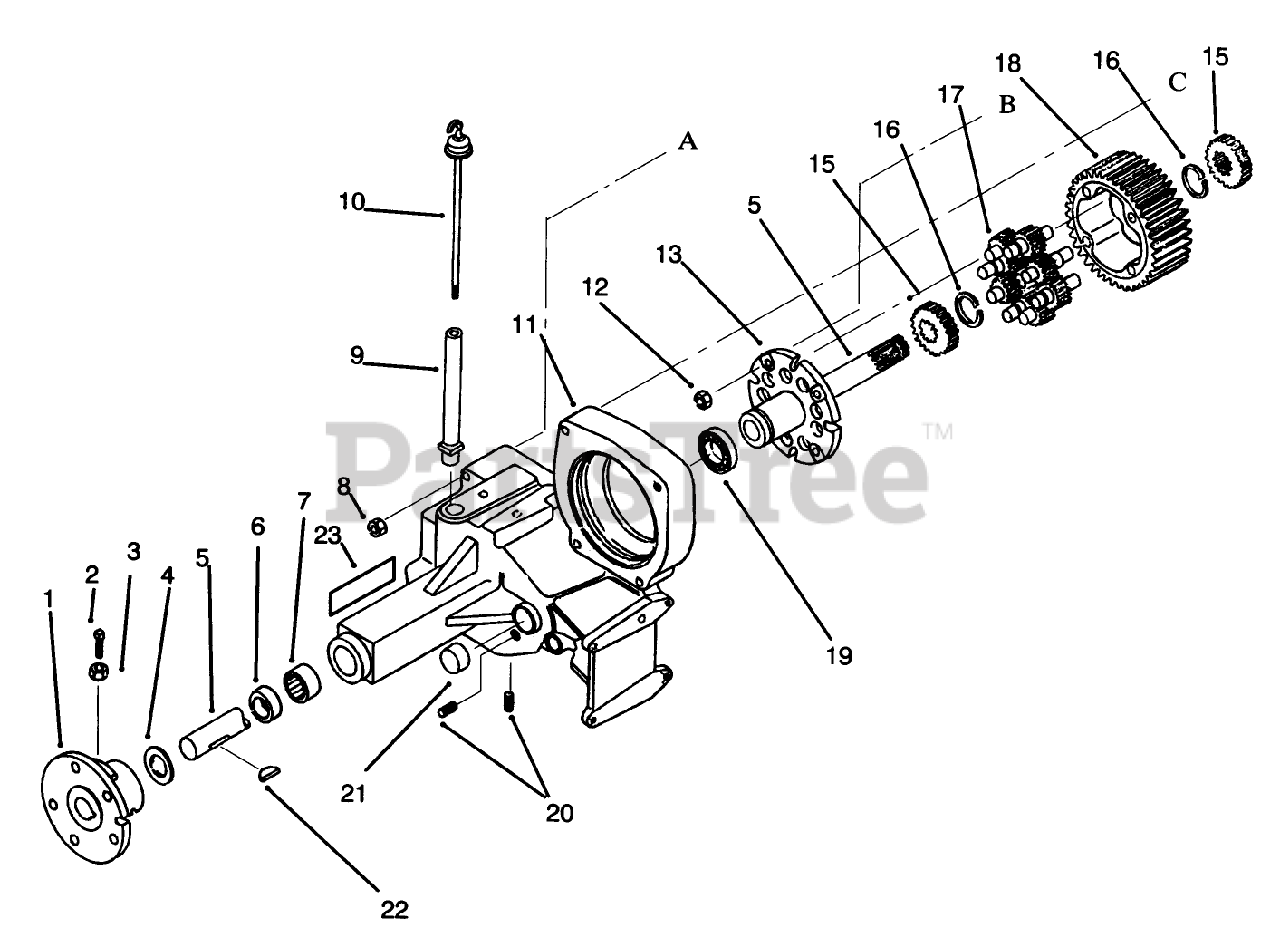

Transaxle Assembly Parts Diagram

  • Title

1

Toro 105763

See Supercession: 105763-03
(Superseded to 105763-03)

$213.99

$

In Stock, only 1 left!

0

2

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

3

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

4

Toro 106826

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

5

Toro 108362

DISCONTINUED

$

$

Not available

6

Toro 6449

SEAL-OIL

$29.99

$

In Stock, Qty 20+

0

7

Toro 9416

BEARING

$

$

Not available

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

10

Toro 110768

DISCONTINUED
(Superseded to 110768-03)

$

$

Not available

11

Toro 92-7298

CASE-TRANSMISSION RH

$

$

Not available

12

Toro 108881

NUT-HEX

$6.99

$

In Stock, Qty 8

0

13

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

15

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

16

Toro 105876

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

17

Toro 101623

GEAR-PINION, 11T

$126.99

$

Usually ships in 3-6 days

0

18

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1450.99

$

Usually ships in 3-6 days

0

19

Toro 111199

BEARING-BALL

$143.99

$

In Stock, only 2 left!

0

20

Toro 281-10

PLUG

$19.99

$

Usually ships in 3-6 days

0

21

Toro 1532

BEARING-NEEDLE

$65.99

$

In Stock, only 2 left!

0

22

Toro 937108

KEY-WOODRUFF

$6.49

$

In Stock, only 2 left!

0

Toro 92-7297

DISCONTINUED

Note: Not Illustrated/In Illustration Center lines A, B and C Continue on next page

$

$

Not available

23

Toro 88-2790

DECAL - DANGER

$

$

Not available
