73502 (520-H) - Toro Garden Tractor (SN: 069000001 - 069999999) (1996) Frame, Front Axle Parts Diagram

Garden Tractor

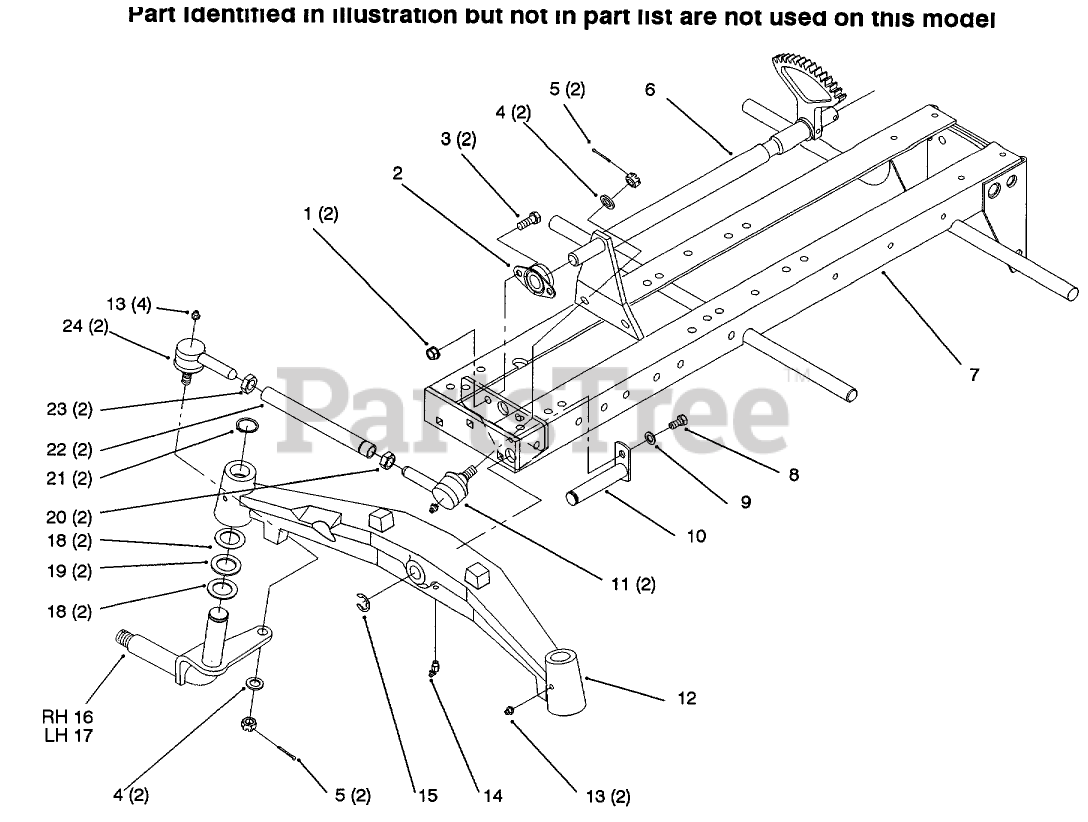

Frame, Front Axle Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 6472

BEARING-FLANGED

$28.99

$

In Stock, only 2 left!

0

3

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 9202424

See Supercession: 920242
(Superseded to 920242)

$6.99

$

Usually ships in 3-6 days

0

5

Toro 3272-7

PIN-COTTER
(Superseded to 702947)

$65.99

$

Usually ships in 3-6 days

0

6

Toro 78-1490

DISCONTINUED
(Superseded to 78-1490-03)

$

$

Not available

7

Toro 94-3716-01

Frame

$

$

Currently unavailable

8

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 6216

PIN AND PLATE ASM

$55.99

$

Usually ships in 3-6 days

0

11

Toro 112772

See Supercession: 112772-03
(Superseded to 112772-03)

$91.99

$

In Stock, only 1 left!

0

12

Toro 116823

DISCONTINUED
(Superseded to 116823-01)

$

$

Not available

13

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

14

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

15

Toro 5618

E-RING

$1.49

$

In Stock, only 3 left!

0

16

Toro 112764

DISCONTINUED
(Superseded to 112764-01)

$

$

Not available

17

Toro 112765

See Supercession: 112765-01
(Superseded to 112765-01)

$

$

Not available

18

Toro 9548

WASHER-THRUST

$

$

Not available

19

Toro 9865

See Supercession: 252-66
(Superseded to 252-66)

$14.99

$

In Stock, only 3 left!

0

20

Toro 3220-11

NUT-JAM

$1.49

$

Usually ships in 3-6 days

0

21

Toro 32151-29

RING-RETAINING

$5.99

$

In Stock, only 2 left!

0

22

Toro 112773

DISCONTINUED
(Superseded to 112773-01)

$

$

Not available

23

Toro 112775

NUT-HEX JAM 9/16-18

$

$

Not available

24

Toro 112771

See Supercession: 112771-03
(Superseded to 112771-03)

$91.99

$

In Stock, only 1 left!

0
