73502 (520-H) - Toro Garden Tractor (SN: 079000001 - 079999999) (1997) Oil Fill Tube Base Parts Diagram

Garden Tractor

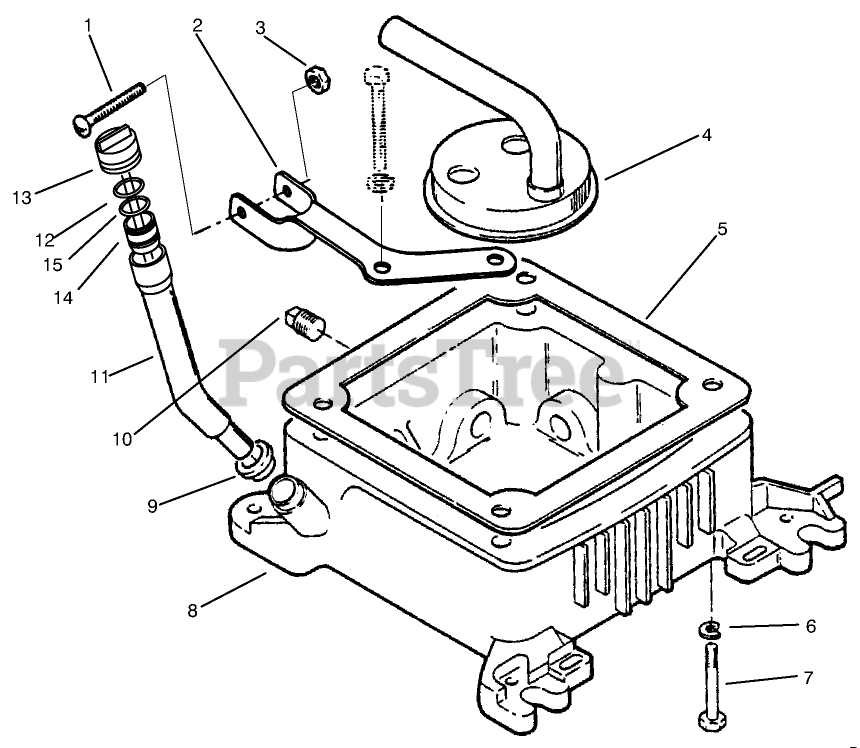

Oil Fill Tube Base Parts Diagram

  • Title

1

Toro 82-1560

DISCONTINUED

$

$

Not available

2

Toro 79-6460

BRACKET-FILL TUBE

$67.99

$

Usually ships in 3-6 days

0

3

Toro 82-1700

DISCONTINUED

$

$

Not available

4

Toro 57-8490

OIL CUP ASM

$

$

Not available

5

Toro 57-8090

GASKET

$44.99

$

Usually ships in 3-6 days

0

6

Toro 82-1310

WASHER-FLAT

$

$

Not available

7

Toro NN10379

DISCONTINUED

$

$

Not available

8

Toro 71-5730

OIL BASE ASSY

$

$

Not available

9

Toro 71-6170

SEAL-OIL FILL TUBE

$37.99

$

In Stock, only 2 left!

0

10

Toro 82-1130

PLUG - SQUARE HEAD

$

$

Not available

11

Toro NN10854

DISCONTINUED

$

$

Not available

11

Toro NN10448

DISCONTINUED
(Superseded to NN10854)

$

$

Not available

12

Toro 57-9610

SEAL 0-RING

$18.99

$

Usually ships in 3-6 days

0

Toro 95-2843

RING - O

Note: Not illustrated

$

$

Not available

13

Toro 98-1704

ASM - INDICATOR, OIL FILL

$

$

Not available

Toro NN10159

See Supercession: 115-0940
(Superseded to 115-0940)

Note: Not illustrated

$

$

Not available

14

Toro 98-1706

DISCONTINUED

$

$

Not available

15

Toro NN10323

See Supercession: 57-9610
(Superseded to 57-9610)

$18.99

$

Usually ships in 3-6 days

0
