73547 (520 Lxi) - Toro Garden Tractor (SN: 200000242 - 200999999) (2000) Carburetor Assembly Parts Diagram
Garden Tractor

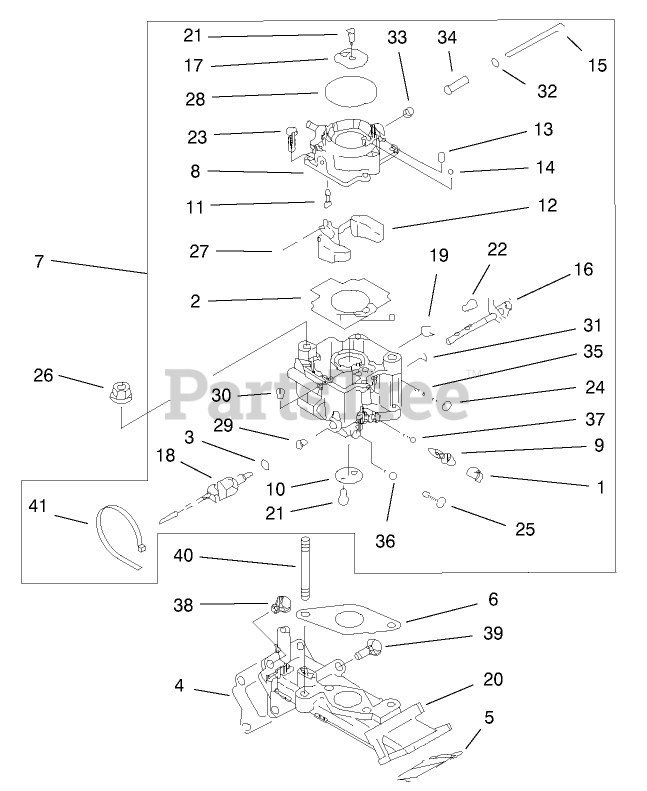

Carburetor Assembly Parts Diagram
Toro 95-9857
$60.99
$
Toro 95-9858
$
$
Not available
Toro 95-9859
$
$
Not available
Toro 95-9860
$
$
Not available
Toro 95-9861
$7.49
$
Toro 95-9862
$
$
Not available
Toro 98-7366
$
$
Not available
Toro 95-9864
$
$
Not available
Toro 95-9865
$47.99
$
Toro 95-9866
$20.99
$
Toro 95-9867
$
$
Not available
Toro 95-9868
$147.99
$
Toro 95-9869
$17.99
$
Toro 95-9870
$17.99
$
Toro 95-9871
$25.99
$
Toro 98-7367
$
$
Not available
Toro 95-9873
$
$
Not available
Toro 95-9874
$
$
Not available
Toro 95-9875
$
$
Not available
$309.99
$
Toro 95-9877
$
$
Not available
Toro 95-9878
$
$
Not available
Toro 95-9879
$
$
Not available
Toro 95-9880
$
$
Not available
Toro 95-9881
$19.99
$
$
$
Not available
Toro 95-9883
$
$
Not available
Toro 95-9972
$
$
Not available
Toro 95-9884
$54.99
$
Toro 95-9885
$41.99
$
Toro 95-9886
$
$
Not available
Toro 95-3887
$103.99
$
Toro 95-9888
$
$
Not available
Toro 95-9889
$
$
Not available
Toro 95-9890
$
$
Not available
Toro 95-9891
$
$
Not available
Toro 95-9892
$
$
Not available
Toro 95-9893
$6.99
$
Toro 95-9894
$
$
Not available
Toro 95-9895
$
$
Not available
Toro 98-7368
$
$
Not available
