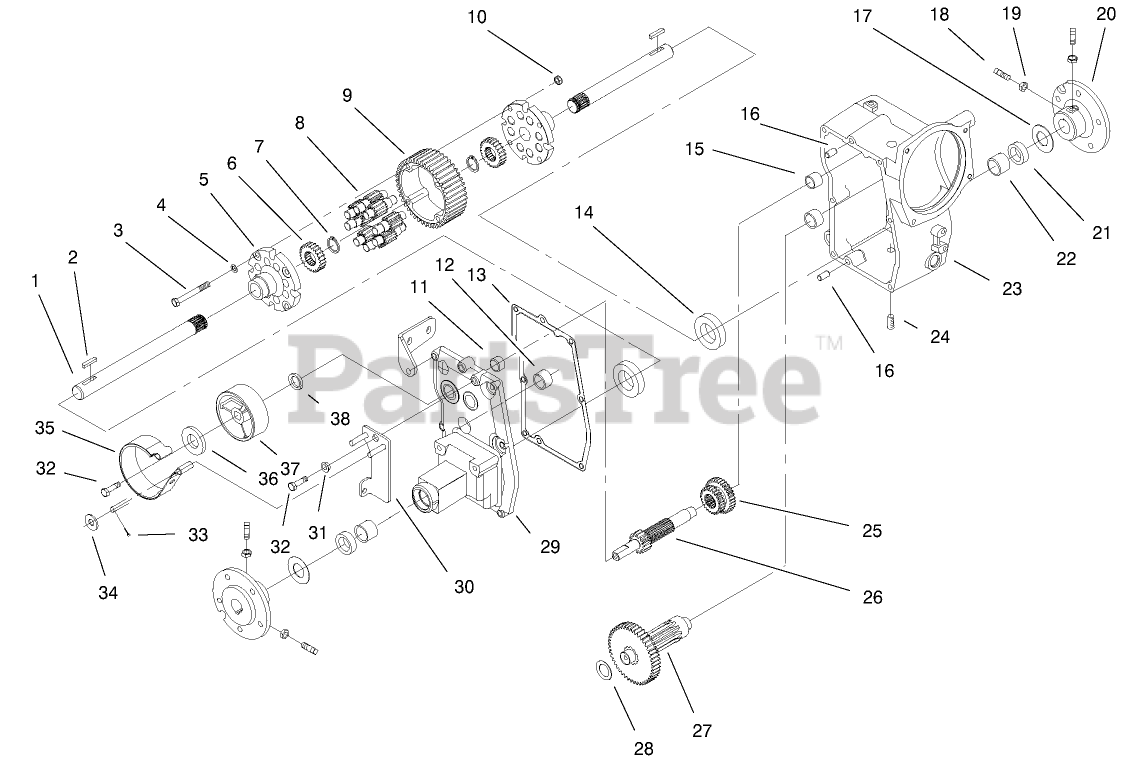

73547 (520 Lxi) - Toro Garden Tractor (SN: 200000242 - 200999999) (2000) Hydro Transaxle Assembly Parts Diagram

Garden Tractor

Hydro Transaxle Assembly Parts Diagram

  • Title

1

Toro 79-3340

AXLE-REAR

$

$

Not available

2

Toro 79-3370

KEY

$12.99

$

Usually ships in 3-6 days

0

3

Toro 911423

See Supercession: 1-800805
(Superseded to 1-800805)

$5.99

$

In Stock, Qty 20+

0

4

Toro 107374

WASHER

$0.99

$

In Stock, Qty 10

0

5

Toro 111196

END CAP-DIFFERENTIAL

$254.99

$

In Stock, only 1 left!

0

6

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

7

Toro 105876

RING-SNAP

$6.49

$

Usually ships in 3-6 days

0

8

Toro 101623

GEAR-PINION, 11T

$126.99

$

Usually ships in 3-6 days

0

9

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1450.99

$

Usually ships in 3-6 days

0

10

Toro 108881

NUT-HEX

$6.99

$

In Stock, Qty 8

0

11

Toro 1540

BEARING-NEEDLE

$45.99

$

Usually ships in 3-6 days

0

12

Toro 94-2021

DISCONTINUED

$

$

Not available

13

Toro 99-5334

GASKET-CASE

$

$

Not available

14

Toro 111199

BEARING-BALL

$143.99

$

In Stock, only 2 left!

0

15

Toro 1529

BEARING-NEEDLE

$56.99

$

Usually ships in 3-6 days

0

16

Toro 108363

PIN-LOCATING

$

$

Not available

17

Toro 106826

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

18

Toro 3243-5

SCREW-SET, SQH

$2.99

$

In Stock, Qty 11

0

19

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 5

0

20

Toro 105763-03

HUB-WHEEL

$213.99

$

In Stock, only 1 left!

0

21

Toro 6449

SEAL-OIL

$29.99

$

In Stock, Qty 20+

0

22

Toro 9416

BEARING

$

$

Not available

23

Toro 94-2001-03

DISCONTINUED

$

$

Not available

24

Toro 99-8551

PLUG-PIPE

$

$

Not available

25

Toro 94-2008

GEAR-SLIDING

$

$

Not available

26

Toro 94-2007

SHAFT-BRAKE

$

$

Not available

27

Toro 94-2006

GEAR ASM

$1118.99

$

Usually ships in 3-6 days

0

28

Toro 9547

WASHER-THRUST

$7.99

$

Usually ships in 3-6 days

0

29

Toro 94-2002-03

DISCONTINUED

$

$

Not available

30

Toro 94-2019-03

ARM-PIVOT, BRAKE (BLACK)

$

$

Not available

31

Toro 100309

CAM-SPACER

$10.99

$

Usually ships in 3-6 days

0

32

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 94-2419

BAND-BRAKE

$

$

Not available

36

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

37

Toro 94-2009

DRUM-BRAKE

$

$

Not available

38

Toro 253-44

SEAL-OIL

$28.99

$

In Stock, only 2 left!

0
