73547 (520 Lxi) - Toro Garden Tractor (SN: 200000242 - 200999999) (2000) Starter Assembly Parts Diagram

Garden Tractor

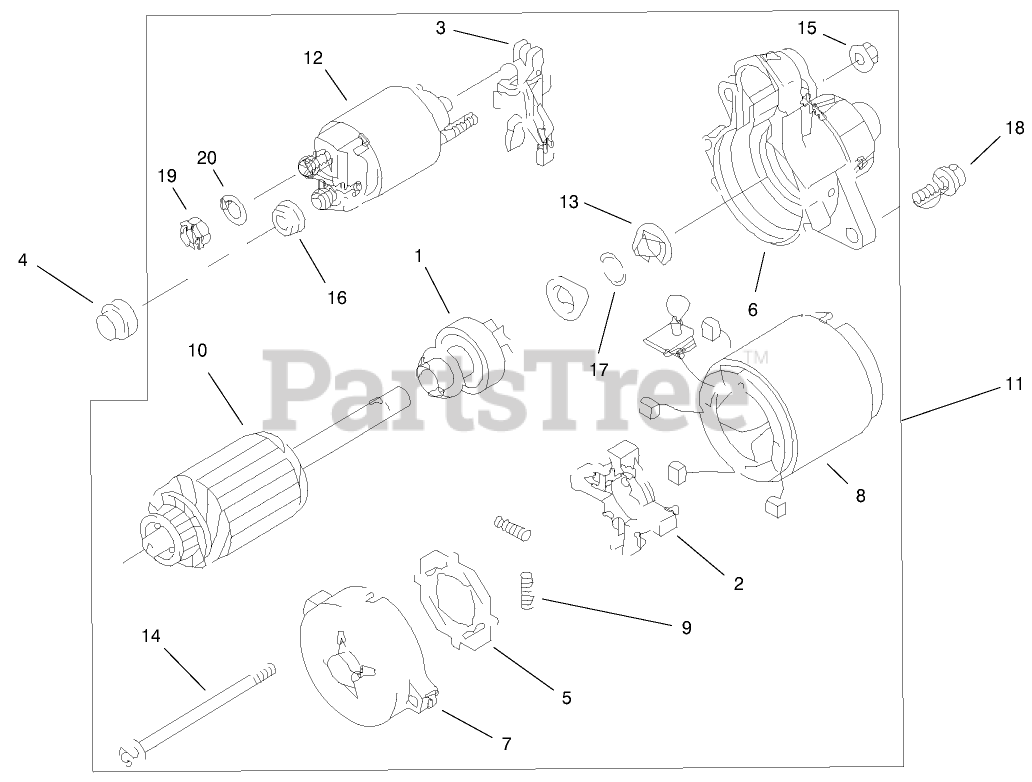

Starter Assembly Parts Diagram

  • Title

1

Toro 95-9961

CLUTCH ASM

$

$

Not available

2

Toro KW10048

DISCONTINUED

$

$

Not available

3

Toro KW10051

LEVER-SHIFT

$

$

Not available

4

Toro 95-9963

DISCONTINUED

$

$

Not available

5

Toro KW10073

INSULATOR

$42.99

$

Usually ships in 3-6 days

0

6

Toro 95-9964

COVER ASM

$

$

Not available

7

Toro 95-9965

COVER ASM

$

$

Not available

8

Toro KW10081

BRUSH

$

$

Not available

9

Toro KW10082

SPRING-BRUSH

$

$

Not available

10

Toro KW10084

ARMATURE

$

$

Not available

11

Toro 95-9966

STARTER - ELECTRIC

$

$

Not available

12

Toro KW10098

SWITCH ASSY

$

$

Not available

13

Toro 95-9967

STOPPER

$21.99

$

Usually ships in 3-6 days

0

14

Toro KW10190

BOLT

$40.99

$

Usually ships in 3-6 days

0

15

Toro KW10197

NUT

$

$

Not available

16

Toro KW10198

NUT

$

$

Not available

17

Toro KW10219

RING-SNAP

$

$

Not available

18

Toro KW10031

BOLT-FLANGED (8X30)

$2.49

$

Usually ships in 3-6 days

0

19

Toro 95-9968

DISCONTINUED

$

$

Not available

20

Toro KW10143

DISCONTINUE

$

$

Not available
