73550 (523 Dxi) - Toro Garden Tractor (SN: 089000001 - 089999999) (1998) Engine Assembly 4 Parts Diagram

Garden Tractor

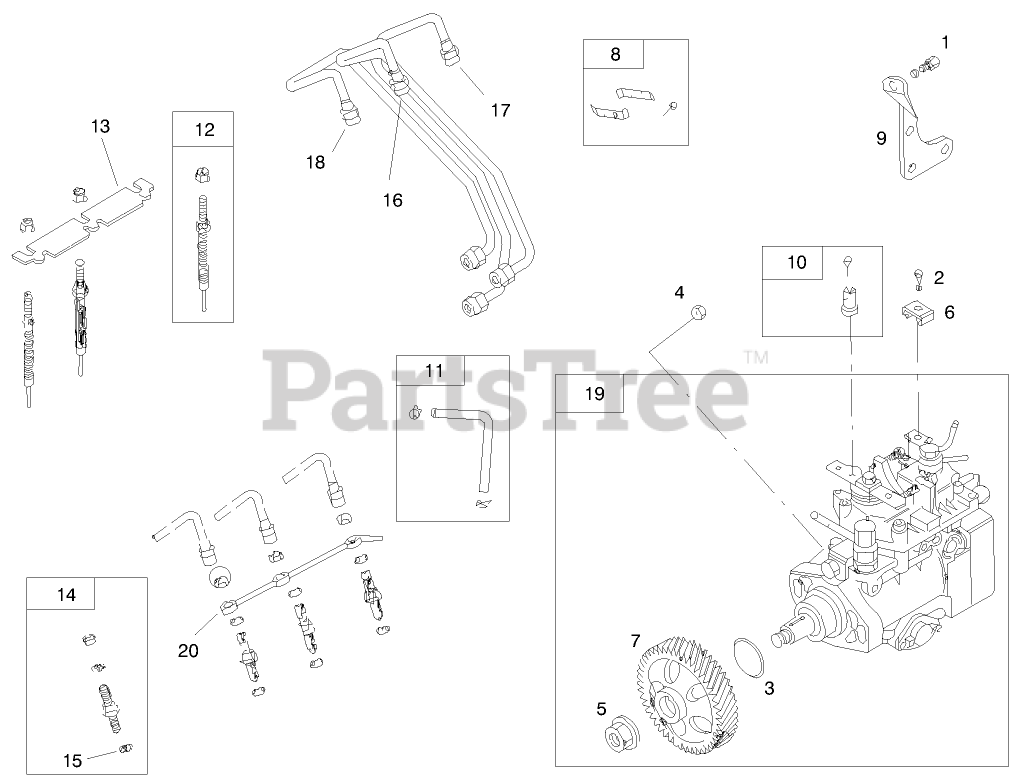

Engine Assembly 4 Parts Diagram

  • Title

1

Toro 99-9616

SCREW-HEX

$

$

Not available

2

Toro 99-9617

See Supercession: 99-9056
(Superseded to 99-9056)

$56.99

$

Usually ships in 3-6 days

0

3

Toro 99-9618

O-RING

$

$

Not available

4

Toro 99-9619

NUT-HEX, METRIC

$

$

Not available

5

Toro 99-9620

NUT-HEX, METRIC

$

$

Not available

6

Toro 99-9688

CLAMP-CASING

$

$

Not available

7

Toro 99-9689

GEAR-DRIVE

$

$

Not available

8

Toro 99-9625

CLAMP

$

$

Not available

9

Toro 99-9626

BRACKET-SUPPORT

$

$

Not available

10

Toro 99-9628

CLAMP-SWIVEL

$21.99

$

Usually ships in 3-6 days

0

11

Toro 99-9629

HOSE / CLAMP ASM

$

$

Not available

12

Toro 99-9630

See Supercession: 114-4695
(Superseded to 114-4695)

$196.99

$

Usually ships in 3-6 days

0

13

Toro 99-9631

STRAP-PLUG, GLOW

$50.99

$

Usually ships in 3-6 days

0

14

Toro 99-9632

NOZZLE-INJECTOR

$773.99

$

Usually ships in 3-6 days

0

15

Toro 99-9633

SEAT-INJECTOR

$

$

Not available

16

Toro 99-9634

PIPE-INJECTOR, NO. 2

$125.99

$

Usually ships in 3-6 days

0

17

Toro 99-9635

PIPE-INJECTOR, NO. 3

$

$

Not available

18

Toro 99-9690

PIPE-INJECTOR, NO. 1

$

$

Not available

19

Toro 99-9691

PUMP-INJECTION

$10791.99

$

Usually ships in 3-6 days

0

20

Toro 99-9637

PIPE-RETURN, FUEL

$104.99

$

Usually ships in 3-6 days

0
