73552 (523 Dxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Engine Assembly 5 Parts Diagram

Garden Tractor

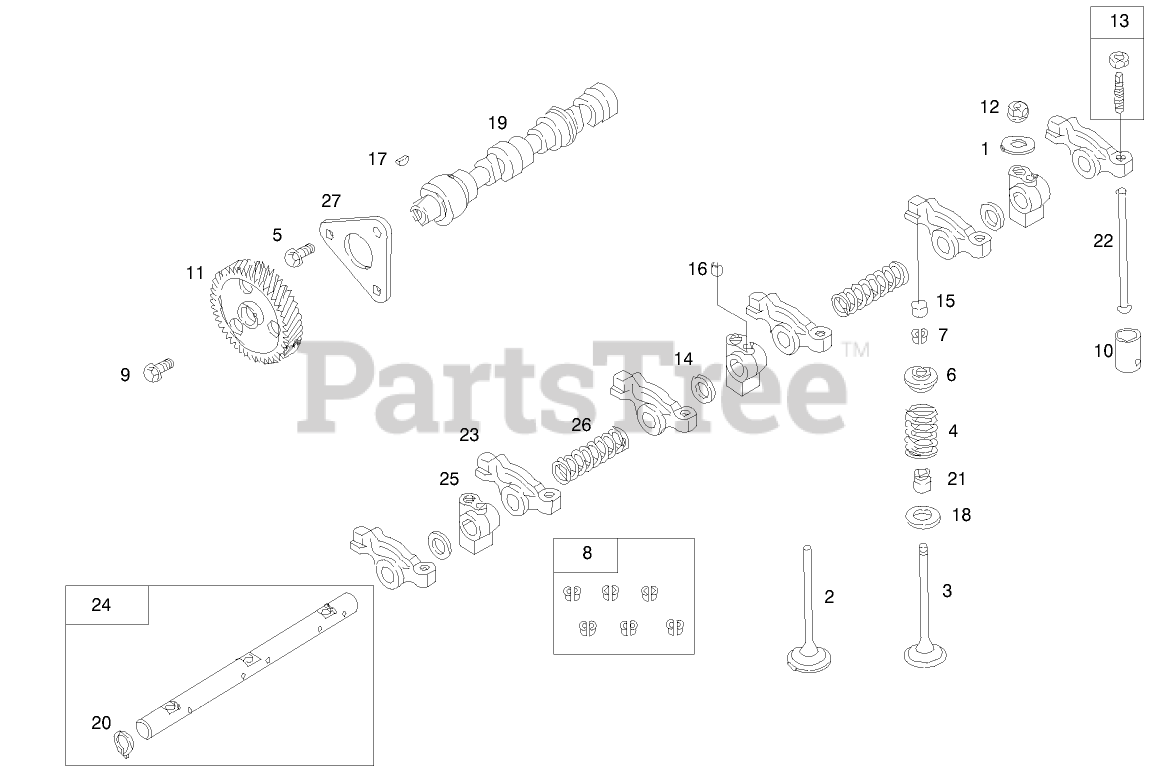

Engine Assembly 5 Parts Diagram

  • Title

1

Toro 99-9079

WASHER-FLAT

$14.99

$

Usually ships in 3-6 days

0

2

Toro 99-9638

VALVE-EXHAUST

$

$

Not available

3

Toro 99-9639

VALVE-INTAKE

$

$

Not available

4

Toro 99-9640

SPRING-VALVE

$14.99

$

Usually ships in 3-6 days

0

5

Toro 99-9083

SCREW-HEX

$14.99

$

Usually ships in 3-6 days

0

6

Toro 99-9084

RETAINER-VALVE

$18.99

$

Usually ships in 3-6 days

0

7

Toro 99-9086

KEEPER-VALVE (SET)

$

$

Not available

8

Toro 99-9087

See Supercession: 99-9086
(Superseded to 99-9086)

$

$

Not available

9

Toro 99-9085

SCREW-METRIC

$

$

Not available

10

Toro 99-9088

TAPPET-VALVE

$50.99

$

Usually ships in 3-6 days

0

11

Toro 99-9641

GEAR-CAM

$

$

Not available

12

Toro 99-9091

NUT-HEX, METRIC

$14.99

$

Usually ships in 3-6 days

0

13

Toro 99-9092

ADJUSTER-ARM, ROCKER

$16.99

$

Usually ships in 3-6 days

0

14

Toro 99-9093

WASHER-SPACER

$16.99

$

Usually ships in 3-6 days

0

15

Toro 99-9094

CAP-VALVE

$

$

Not available

16

Toro 99-9090

SCREW-METRIC

$20.99

$

Usually ships in 3-6 days

0

17

Toro 99-9642

KEY-TIMING

$

$

Not available

18

Toro 99-9096

SEAT-SPRING, VALVE

$

$

Not available

19

Toro 99-9097

SHAFT-CAM

$

$

Not available

20

Toro 99-9099

RETAINER

$18.99

$

Usually ships in 3-6 days

0

21

Toro 99-9643

SEAL-VALVE

$

$

Not available

22

Toro 99-9103

ROD-PUSH

$

$

Not available

23

Toro 99-9104

ARM-ROCKER

$142.99

$

Usually ships in 3-6 days

0

24

Toro 99-9106

SHAFT-ARM, ROCKER

$

$

Not available

25

Toro 99-9107

SUPPORT-ARM, ROCKER

$53.99

$

Usually ships in 3-6 days

0

26

Toro 99-9108

SPRING-SHAFT, ROCKER

$

$

Not available

27

Toro 99-9109

RETAINER-CAMSHAFT

$

$

Not available
