73552 (523 Dxi) - Toro Garden Tractor (SN: 200000001 - 200999999) (2000) Liquid Cooled Diesel Engine Assembly 3 Parts Diagram

Garden Tractor

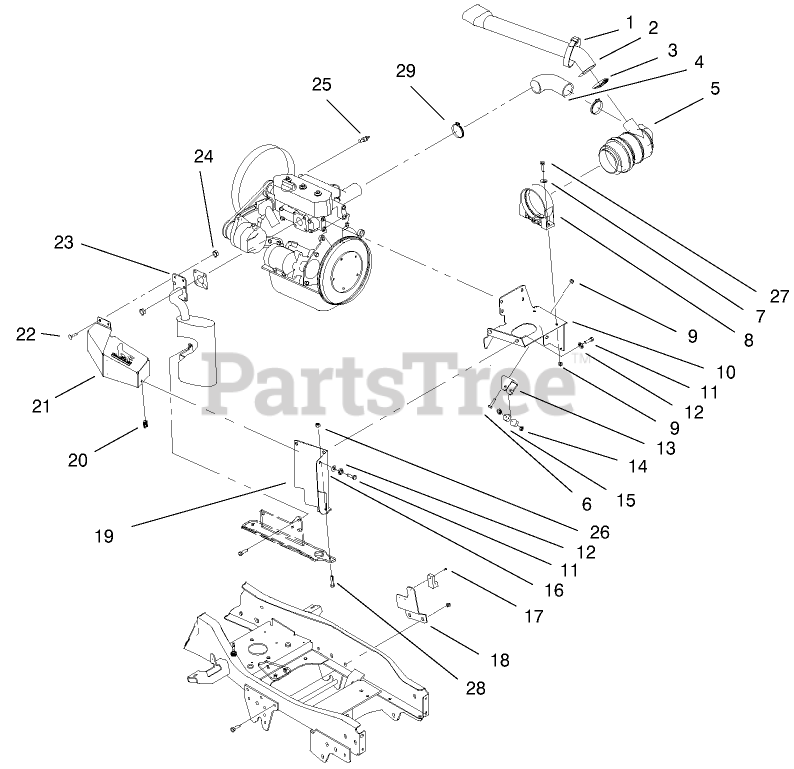

Liquid Cooled Diesel Engine Assembly 3 Parts Diagram

  • Title

1

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

2

Toro 98-1628

HOSE - AIR CLEANER

$

$

Not available

3

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 95-4265

HOSE - AIR CLEANER OUTLET

$

$

Not available

5

Toro 93-2190

AIR CLEANER ASM

$280.99

$

Usually ships in 3-6 days

0

5:2

Toro 93-2195

See Supercession: 108-3811
(Superseded to 108-3811)

Note: Not illustrated

$25.99

$

In Stock, Qty 20+

0

5:3

Toro 94-3652

COVER ASM

Note: Not illustrated

$108.99

$

In Stock, only 2 left!

0

5:4

Toro 94-1414

VALVE-VACUATOR

Note: Not illustrated

$

$

Currently unavailable

5:5

Toro 285-17

PLUG-PIPE

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0

6

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 95-5806

BRACKET-MOUNTING

$32.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 95-3891-03

DISCONTINUED

$

$

Not available

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

13

Toro 95-4067-03

BRACKET-CLUTCH ANCHOR

$

$

Not available

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 240-14

BUMPER-RUBBER

$16.99

$

Usually ships in 3-6 days

0

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

18

Toro 95-4239-03

BRACKET-RELAY

$

$

Not available

19

Toro 98-1634-03

HEAT SHIELD ASM

$

$

Not available

20

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

21

Toro 98-1638-03

HEAT SHIELD ASM

$

$

Not available

22

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

23

Toro 94-7958

DISCONTINUED

$

$

Not available

24

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

25

Toro 94-7621

SENDER-TEMPERATURE

$93.99

$

Usually ships in 3-6 days

0

26

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

27

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

28

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 5

0

29

Toro 2412-130

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0
