73570 (520 xi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) Lower Manual Steering Assembly Parts Diagram

Garden Tractor

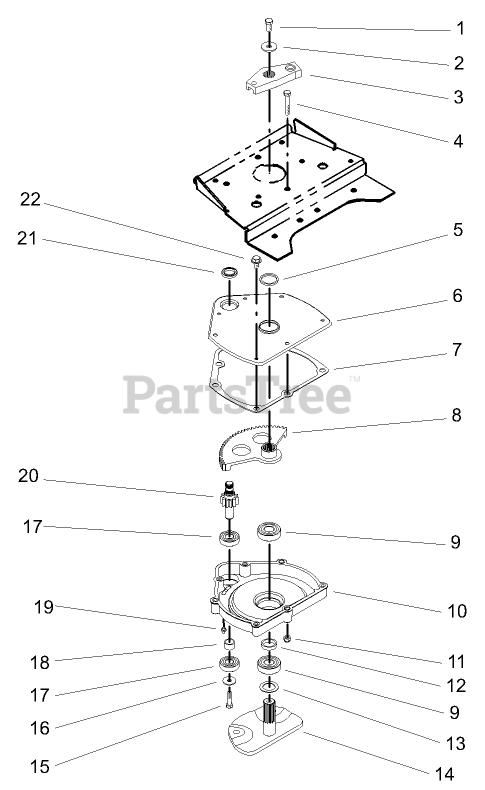

Lower Manual Steering Assembly Parts Diagram

  • Title

1

Toro 98-3052

SCREW-LOCKING, THREAD

$1.99

$

Usually ships in 3-6 days

0

2

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

3

Toro 94-2140

ARM - MECH STRG UPPER

$96.99

$

Usually ships in 3-6 days

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

5

Toro 103118

SEAL

$25.99

$

In Stock, only 1 left!

0

6

Toro 94-2134-03

COVER-STEERING HOUSING

$

$

Not available

7

Toro 94-2135

GASKET

$

$

Not available

8

Toro 94-2137

GEAR-SECTOR

$

$

Not available

9

Toro 251-82

BEARING-BALL

$25.99

$

In Stock, only 4 left!

0

10

Toro 94-2133

DISCONTINUED

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 94-2218

SPACER-SHAFT, OUTPUT

$14.99

$

Usually ships in 3-6 days

0

13

Toro 3256-42

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

14

Toro 94-2142-03

SHAFT-SECTOR

$

$

Not available

15

Toro 98-3498

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

17

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

18

Toro 94-2217

SPACER-SHAFT, INPUT

$11.99

$

Usually ships in 3-6 days

0

19

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

20

Toro 94-2136

PINION - INPUT SHAFT

$

$

Not available

21

Toro 94-7856

SEAL - OIL

$

$

Not available

22

Toro 32144-10

SCREW-HWH

$5.49

$

In Stock, Qty 16

0
