73590 (523 Dxi) - Toro Garden Tractor (SN: 210000001 - 210999999) (2001) Engine Assembly 11 Parts Diagram

Garden Tractor

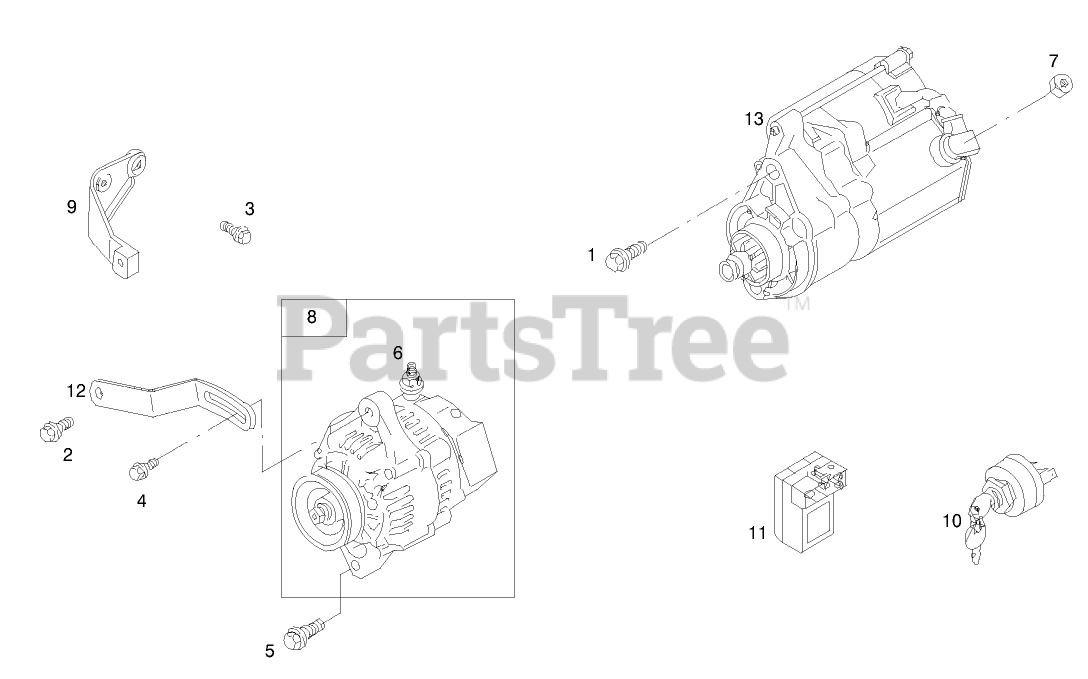

Engine Assembly 11 Parts Diagram

  • Title

1

Toro 99-9201

SCREW-HEX

$

$

Not available

2

Toro 99-9202

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

3

Toro 99-9203

SCREW-HEX

$

$

Not available

4

Toro 99-9663

SCREW-HEX, METRIC

$

$

Not available

5

Toro 99-9205

SCREW-HEX, METRIC

$24.99

$

Usually ships in 3-6 days

0

6

Toro 99-9114

NUT-HEX, METRIC

$16.99

$

Usually ships in 3-6 days

0

7

Toro 99-9206

NUT-HEX, METRIC

$

$

Not available

8

Toro 99-9209

ALTERNATOR

$1077.99

$

Usually ships in 3-6 days

0

9

Toro 99-9211

BRACKET-SUPPORT

$

$

Not available

10

Toro 99-9665

KEY SWITCH

$

$

Not available

11

Toro 99-9666

See Supercession: 115-2292
(Superseded to 115-2292)

$500.99

$

Usually ships in 3-6 days

0

12

Toro 99-9212

BRACKET-ADJUSTING

$

$

Not available

13

Toro 99-9693

See Supercession: 110-2598
(Superseded to 110-2598)

$880.99

$

Usually ships in 3-6 days

0
