73590 (523 Dxi) - Toro Garden Tractor (SN: 230000001 - 230999999) (2003) Steering Tower Fuel Tank Support Assembly Parts Diagram

Garden Tractor

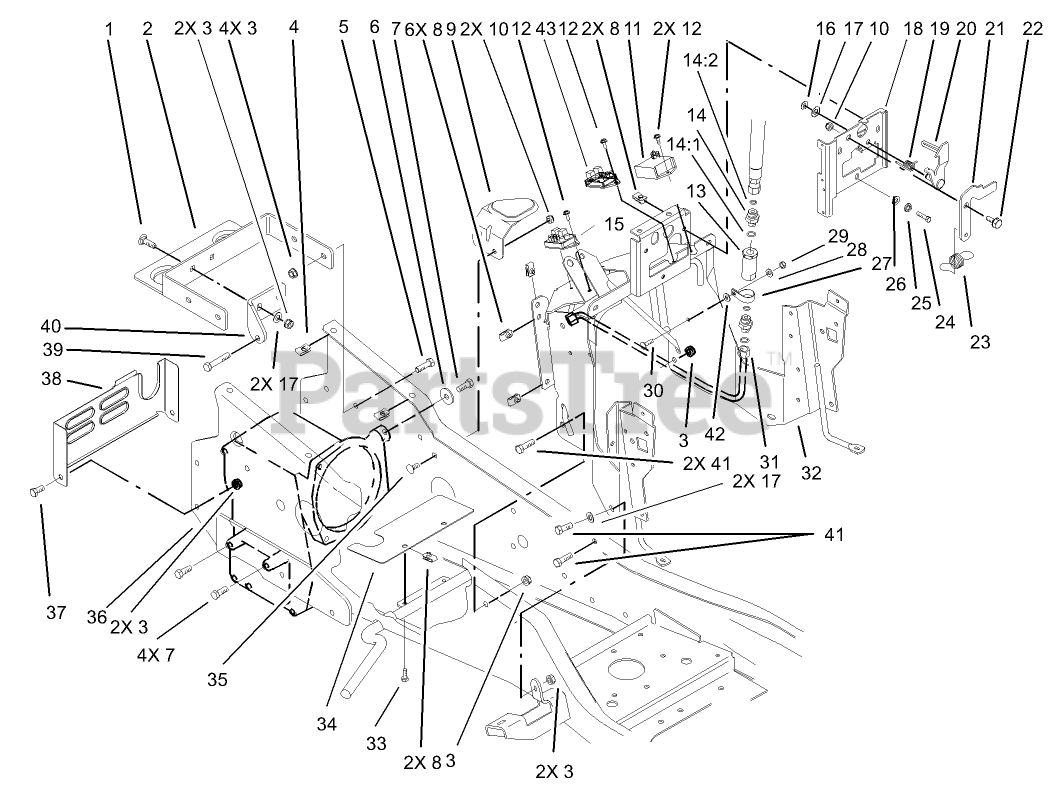

Steering Tower Fuel Tank Support Assembly Parts Diagram

  • Title

1

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

2

Toro 94-7740-03

SUPPORT-GAS TANK

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

5

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

6

Toro 2844

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Toro 3235-22

SCREW-HH, LOCK

$3.49

$

Usually ships in 3-6 days

0

8

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

9

Toro 95-3961-03

SUPPORT-TANK, FUEL

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 99-1939

MODULE-LOW FUEL

$

$

Not available

12

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

13

Toro 95-3991

FILTER-SCREEN, HYD

$285.99

$

Usually ships in 3-6 days

0

14

Toro 95-4138

See Supercession: 340-2
(Superseded to 340-2)

$13.99

$

In Stock, only 2 left!

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

14:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

15

Toro 99-3703

MODULE-CRUISE

$181.99

$

Usually ships in 3-6 days

0

16

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 13

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 95-3892-03

BRACKET-LATCH

$

$

Not available

19

Toro 95-4165

SPRING-LEVER, LATCH

$

$

Not available

20

Toro 95-3899

DISCONTINUED

$

$

Not available

21

Toro 95-3900

LATCH-LEVER, TENSION

$

$

Not available

22

Toro 37-8771

BOLT-SHOULDER,HFH

$5.99

$

In Stock, Qty 11

0

23

Toro 95-3895

SPRING-LEVER, LATCH

$

$

Not available

24

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 2412-106

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

30

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

31

Toro 94-7971

TUBE-HYD

$

$

Not available

32

Toro 99-4441-03

TOWER ASM

$

$

Not available

33

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 95-4246

BAFFLE-FAN

$

$

Not available

35

Toro 3230-20

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

36

Toro 99-5306-03

FRAME

$1887.99

$

Usually ships in 3-6 days

0

37

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

38

Toro 95-4005-03

COVER-REAR

$

$

Not available

39

Toro 94-7972

SCREW-HH W/LOCTITE

$5.99

$

In Stock, Qty 12

0

40

Toro 94-7739-03

STRAP-TORQUE

$

$

Not available

41

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

42

Toro 32115-15

PUSHNUT-RETAINER, BOLT

$1.49

$

In Stock, Qty 5

0

43

Toro 99-3701

MODULE-CLUTCH

$164.99

$

Usually ships in 3-6 days

0
