74-1560 - Toro 24" Gear Case, Power Throw and Power Shift Snow Thrower 32 Inch Gear Case Assembly Parts Diagram

24" Gear Case, Power Throw and Power Shift Snow Thrower

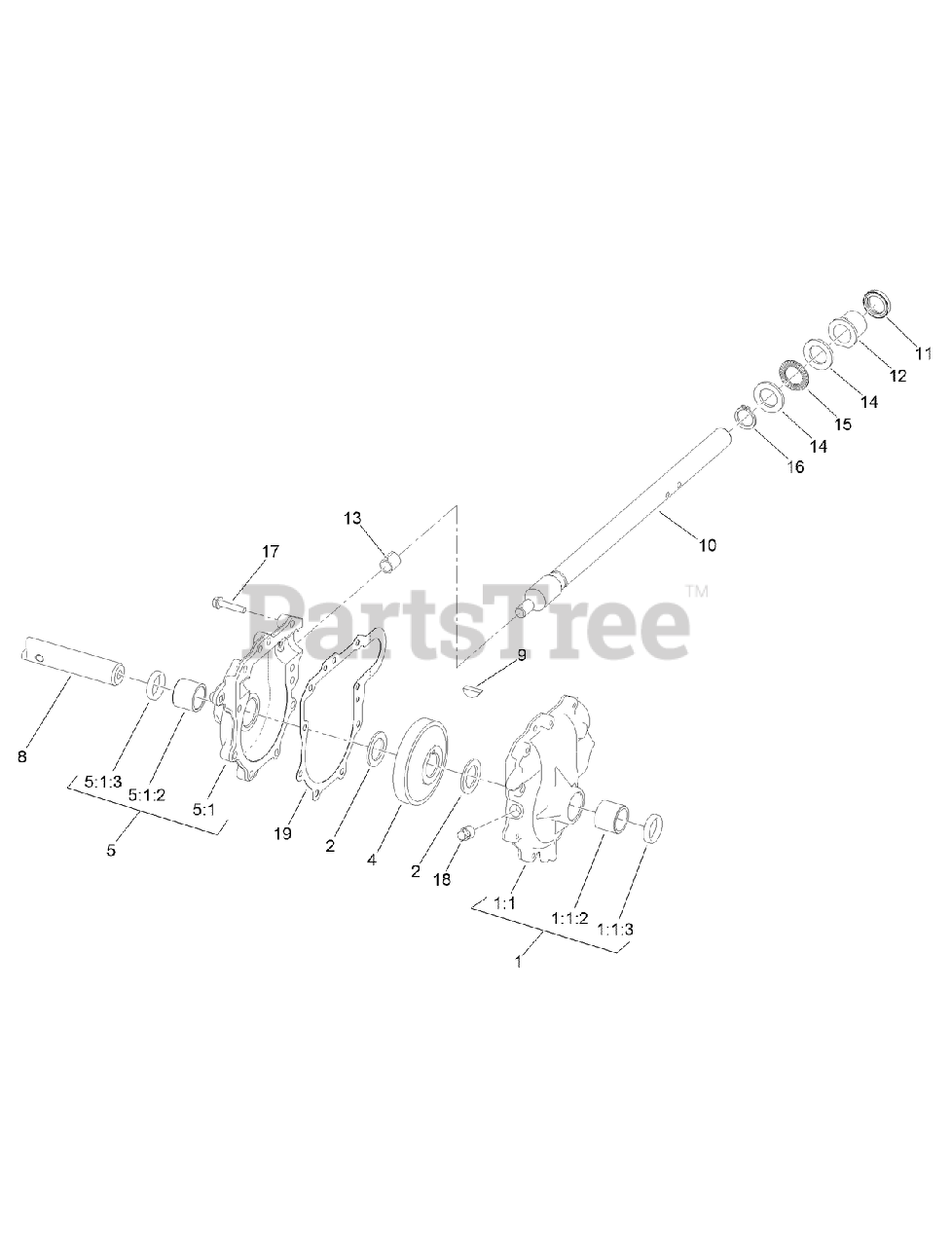

32 Inch Gear Case Assembly Parts Diagram

  • Title

1

Toro 108-7325

LH AUGER GEARCASE ASM

$183.99

$

Usually ships in 3-6 days

0

1:1

Gearcase-Auger, LH

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 112-6635

BUSHING-SLEEVE

$7.49

$

In Stock, only 2 left!

0

1:1:3

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

2

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 3 left!

0

4

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$75.99

$

In Stock, only 4 left!

0

5

Toro 108-7327

RH AUGER GEARCASE ASM

$183.99

$

Usually ships in 3-6 days

0

5:1

Loose Parts Package

Note: Not serviced separately

$

$

Not available

5:1:2

Toro 112-6635

BUSHING-SLEEVE

$7.49

$

In Stock, only 2 left!

0

5:1:3

Toro 7-0045

SEAL-OIL

$21.99

$

In Stock, Qty 12

0

8

Toro 62-1532

SHAFT-AUGER

$

$

Not available

9

Toro 3257-10

KEY-WOODRUFF

$7.49

$

In Stock, only 3 left!

0

10

Toro 66-7811

SHAFT-IMPELLER

$305.99

$

Usually ships in 3-6 days

0

11

Toro 253-149

SEAL-OIL

$14.99

$

In Stock, only 2 left!

0

12

Toro 37-6560

BUSHING-INPUT

$46.99

$

In Stock, only 2 left!

0

13

Toro 62-1150

BUSHING-WORM

$8.49

$

In Stock, only 2 left!

0

14

Toro 252-78

WASHER-THRUST

$25.99

$

In Stock, only 2 left!

0

15

Toro 252-76

BEARING-THRUST

$25.99

$

In Stock, only 1 left!

0

16

Toro 32151-33

RING-RETAINING, EXT

$3.99

$

In Stock, Qty 9

0

17

Toro 108-4862

SCREW-HWHTF

$3.99

$

In Stock, Qty 13

0

18

Toro 121-6832

PLUG-PIPE, SQH

$1.49

$

Usually ships in 3-6 days

0

19

Toro 108-7330

GASKET-GEARCASE, AUGER

$35.99

$

In Stock, only 2 left!

0
