74010 (4000) - Toro 52" Z Master Zero-Turn Mower (SN: 413000000 - 414067744) Caster and Wheel Assembly Parts Diagram

52" Z Master Zero-Turn Mower

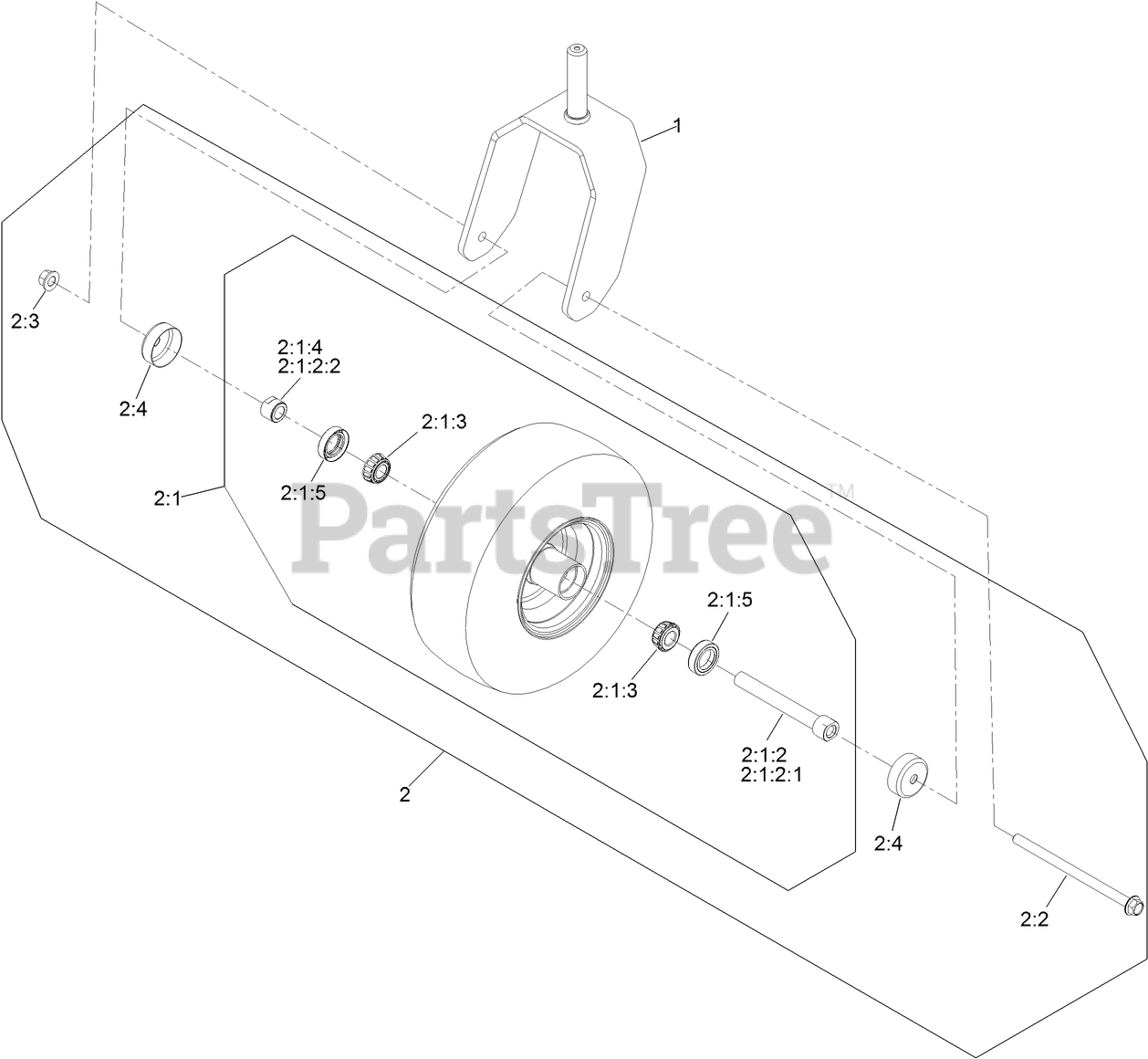

Caster and Wheel Assembly Parts Diagram

  • Title

1

Toro 142-7827-01

CASTER-FORK

$127.99

$

In Stock, Qty 20+

0

2

Toro 140-4896

ASM-WHEEL BRGS AXLE 13X6.50-6

$226.99

$

Usually ships in 3-6 days

0

2:1

ASM WHL/BRGS 13X6.50-6

Note: Not serviced separately

$

$

Not available

2:1:2

Toro 126-7796

CASTER AXLE ASM

$22.99

$

In Stock, only 1 left!

0

2:1:2:1

Toro 126-5220

AXLE-CASTER

$

$

Currently unavailable

2:1:2:2

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

2:1:3

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

2:1:4

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

2:1:5

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

2:2

Toro 126-5389

SCREW-HHF

$8.99

$

In Stock, Qty 20+

0

2:3

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

2:4

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0
