74010 (4000) - Toro 52" Z Master Zero-Turn Mower (SN: 413000000 - 414067744) Engine, Clutch and Muffler Assembly Parts Diagram

52" Z Master Zero-Turn Mower

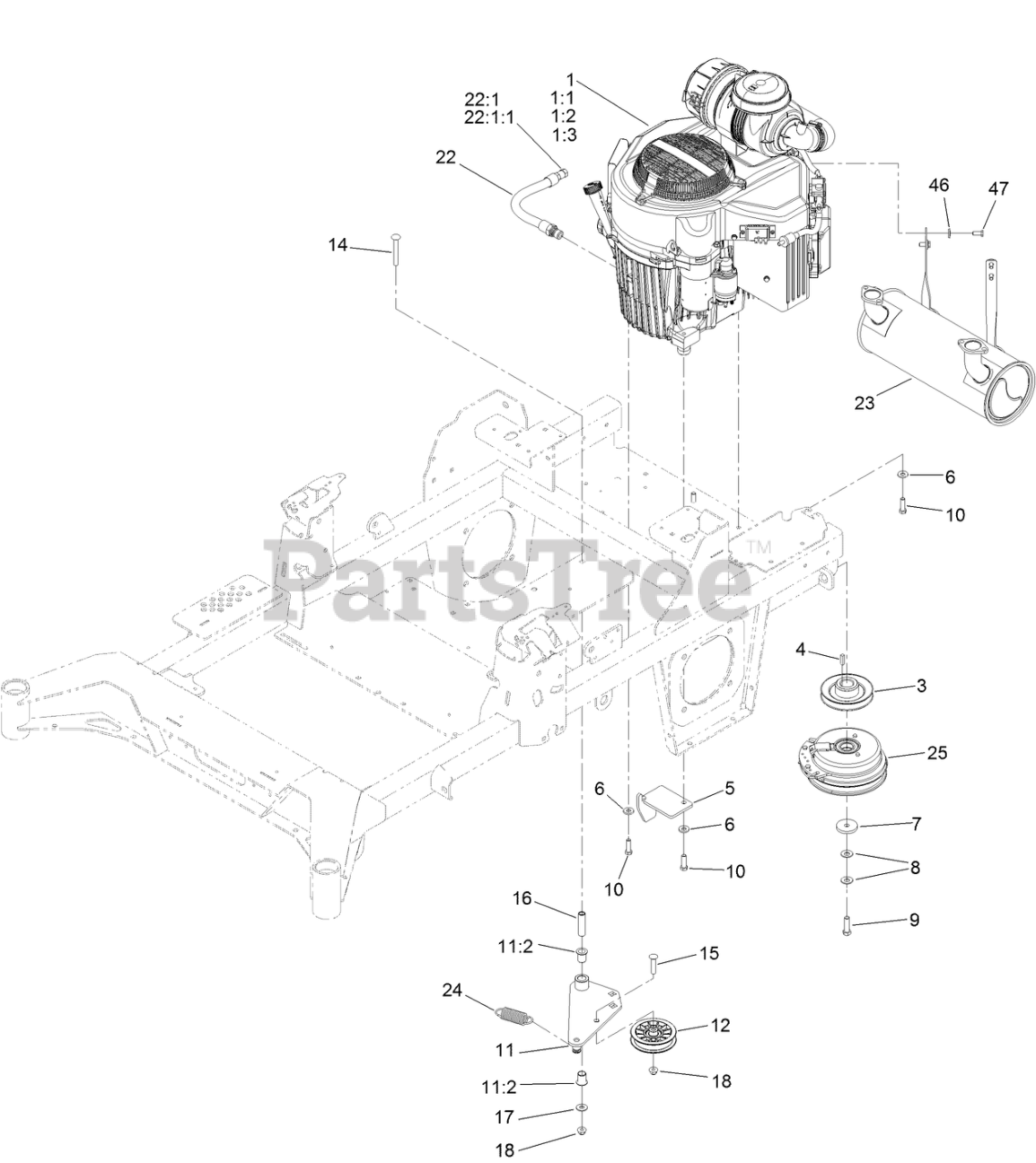

Engine, Clutch and Muffler Assembly Parts Diagram

  • Title

1

Toro 126-2131

ENGINE-KAWASAKI, FX921V-S04-R

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Not serviced separately

$

$

Not available

1:1

KAWASAKI 49065-7007 ENGINE OIL FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:2

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:2

KAWASAKI 11013-7044 ENGINE AIR FILTER

Note: Not serviced separately

$

$

Not available

1:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: Not serviced separately

$

$

Not available

1:3

KAWASAKI 11013-7045 SAFETY FILTER

Note: Obtain parts from www.kawpower.com

$

$

Not available

3

Toro 139-6702

SHEAVE, W/HUB

$34.99

$

Usually ships in 3-6 days

0

4

Toro 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

5

Toro 140-1190

ANCHOR-CLUTCH

$18.99

$

Usually ships in 3-6 days

0

6

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

7

Toro 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 9

0

8

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

9

Toro 109-9761

SCREW-HH, W/LOCTITE

$5.99

$

In Stock, Qty 13

0

10

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Toro 144-2671

IDLER ARM ASM

$63.99

$

Usually ships in 3-6 days

0

11:2

Toro 138-2573

BUSHING-FLANGE

$3.49

$

In Stock, only 2 left!

0

12

Toro 116-2456

PULLEY-FLAT IDLER

$26.99

$

In Stock, Qty 20+

0

14

Toro 3231-42

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

15

Toro 3231-29

SCREW-CARR

$8.49

$

In Stock, Qty 16

0

16

Toro 139-6690

BUSHING, IDLER PIVOT

$8.49

$

In Stock, only 2 left!

0

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

$42.99

$

In Stock, Qty 6

0

22:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 2 left!

0

22:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

23

Toro 140-8002

MUFFLER

$296.99

$

Usually ships in 3-6 days

0

24

Toro 1-653331

SPRING-IDLER

$13.99

$

In Stock, only 2 left!

0

25

Toro 116-1604

See Supercession: 116-1620
(Superseded to 116-1620)

$392.99

$

In Stock, Qty 18

0

46

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

47

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0
