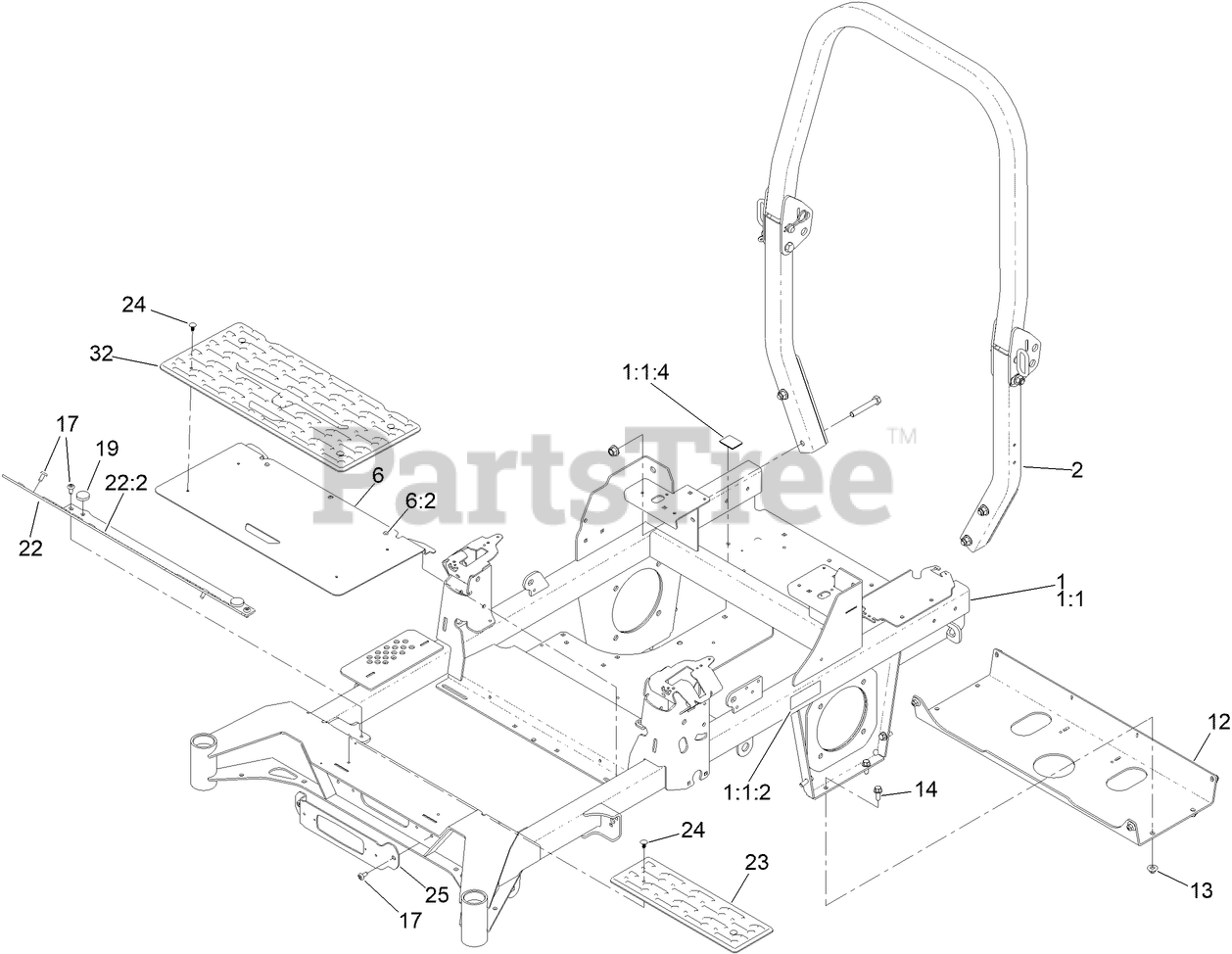

74010 (4000) - Toro 52" Z Master Zero-Turn Mower (SN: 413000000 - 414067744) Frame Assembly Parts Diagram

52" Z Master Zero-Turn Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 144-6589

FRAME ASM
(Superseded to 147-7830)

$3315.99

$

Usually ships in 3-6 days

0

1:1

FRAME-48/52

Note: Not serviced separately

$

$

Not available

1:1:2

Toro 126-4363

DECAL-WARNING

$18.99

$

Usually ships in 3-6 days

0

1:1:4

Toro 144-2687

DECAL, BELT ROUTING

$2.99

$

Usually ships in 3-6 days

0

2

Toro 139-8062

ASM-ROPS

$606.99

$

Usually ships in 3-6 days

0

6

Toro 138-6098

ASM-FLOOR PAN

$129.99

$

Usually ships in 3-6 days

0

6:2

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.99

$

In Stock, Qty 10

0

12

Toro 139-6717-01

PLATE-HYDRO

$209.99

$

Usually ships in 3-6 days

0

13

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

17

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

19

Toro 109-9233

BUMPER-PUSH-IN, RUBBER

$5.99

$

In Stock, Qty 10

0

22

Toro 140-4995

TOEBOARD

$181.99

$

Usually ships in 3-6 days

0

22:2

Toro 126-8383

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

23

Toro 140-4992

STEP

$23.99

$

Usually ships in 3-6 days

0

24

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

25

Toro 140-4994-01

BRACKET-LIGHT

$20.99

$

Usually ships in 3-6 days

0

32

Toro 140-7950

FLOORMAT-FIXED SEAT

$58.99

$

Usually ships in 3-6 days
