74022 (4000) - Toro 72" Z Master Zero-Turn Mower (SN: 412000000 - 414070031) Deck Assembly Parts Diagram

72" Z Master Zero-Turn Mower

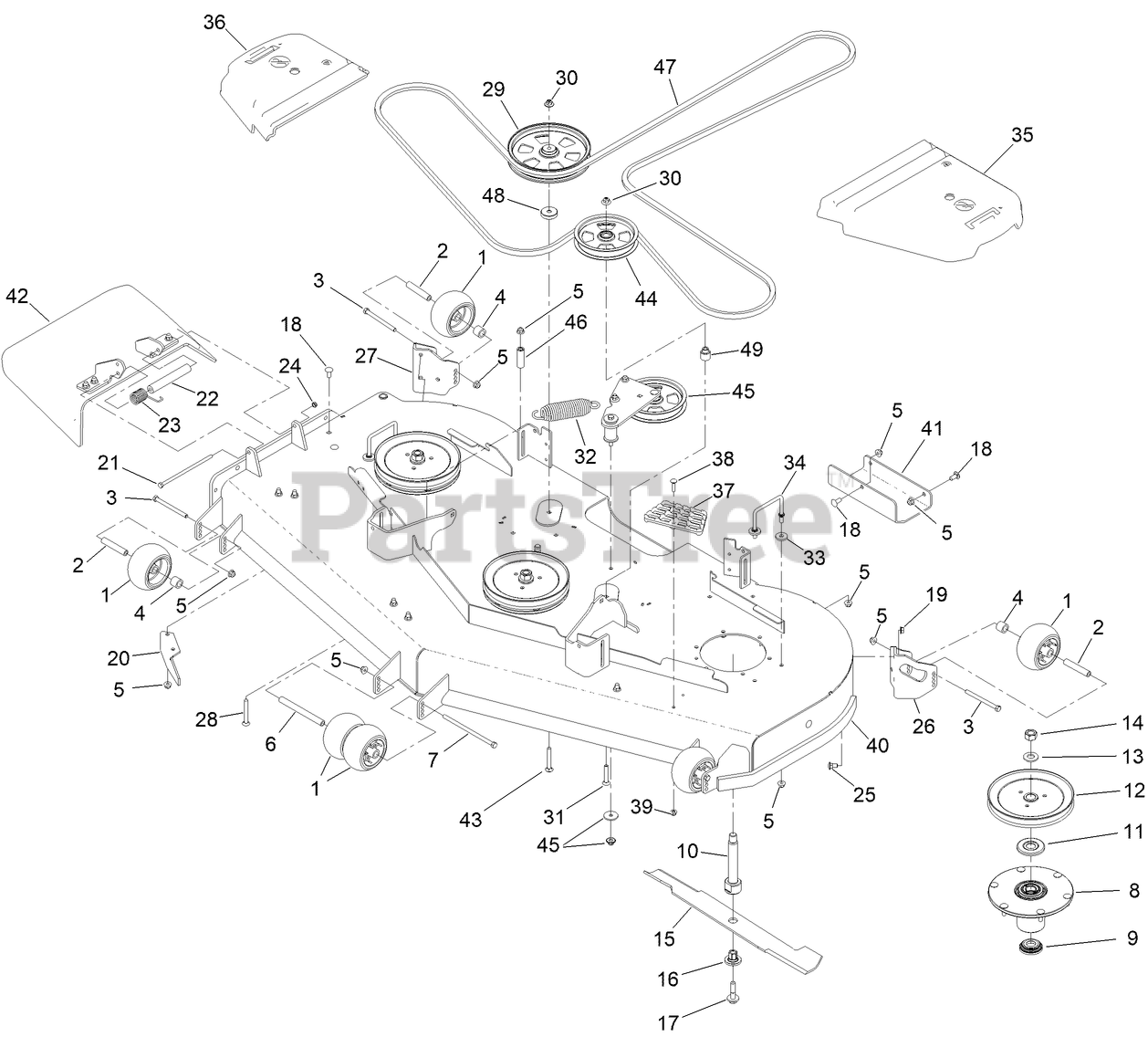

Deck Assembly Parts Diagram

  • Title

1

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

2

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

3

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

4

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

7

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

8

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

9

Toro 137-9784

GUARD-BOTTOM

$6.99

$

In Stock, Qty 11

0

10

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

11

Toro 103-1330

GUARD-BEARING, TOP

$5.99

$

In Stock, Qty 20+

0

12

Toro 138-6060

SHEAVE-DRIVE, BLADE

$38.99

$

In Stock, Qty 5

0

13

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

14

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

15

Toro 140-1238

BLADE

$41.99

$

In Stock, Qty 20+

0

16

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

17

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

18

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

19

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

20

Toro 106-3216-01

BAFFLE-DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

21

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 15

0

22

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0

23

Toro 108-4052

SPRING-TORSION

$28.99

$

In Stock, Qty 6

0

24

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

25

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 13

0

26

Toro 106-7354-01

MOUNT-WHEEL, LH

$120.99

$

Usually ships in 3-6 days

0

27

Toro 106-7355-01

MOUNT-WHEEL, RH

$120.99

$

Usually ships in 3-6 days

0

28

Toro 126-4687

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

29

Toro 132-4734

PULLEY-IDLER,FLAT

$71.99

$

In Stock, Qty 7

0

30

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

31

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

32

Toro 116-6317

SPRING-EXTENSION

$31.99

$

In Stock, Qty 20+

0

33

Toro 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

34

Toro 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

0

35

Toro 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

36

Toro 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

37

Toro 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 2 left!

0

38

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 145-1971

DECK DECAL ASM

$3993.99

$

Usually ships in 3-6 days

0

41

Toro 145-1941-01

PLATE-SKID

$47.99

$

Usually ships in 3-6 days

0

42

Toro 144-2635

RUBBER DEFLECTOR ASM

$186.99

$

Usually ships in 3-6 days

0

43

Toro 3231-9

SCREW-CARR

$2.99

$

In Stock, Qty 7

0

44

Toro 132-9424

PULLEY-IDLER, FLAT

$47.99

$

In Stock, Qty 20+

0

45

Toro 139-1087

IDLER ARM ASM

$156.99

$

In Stock, only 2 left!

0

46

Toro 116-5809

SPACER-HYDRO

$6.99

$

In Stock, only 1 left!

0

47

Toro 145-1940

BELT, V-5V X 206.6"

$226.99

$

Usually ships in 3-6 days

0

48

Toro 145-1942

SPACER-PULLEY

$24.99

$

Usually ships in 3-6 days

0

49

Toro 139-8061

BUSHING, IDLER

$6.99

$

In Stock, Qty 12

0
