74022 (4000) - Toro 72" Z Master Zero-Turn Mower (SN: 418029152 - 418289203) Caster Wheel and Fork Assembly Parts Diagram
72" Z Master Zero-Turn Mower

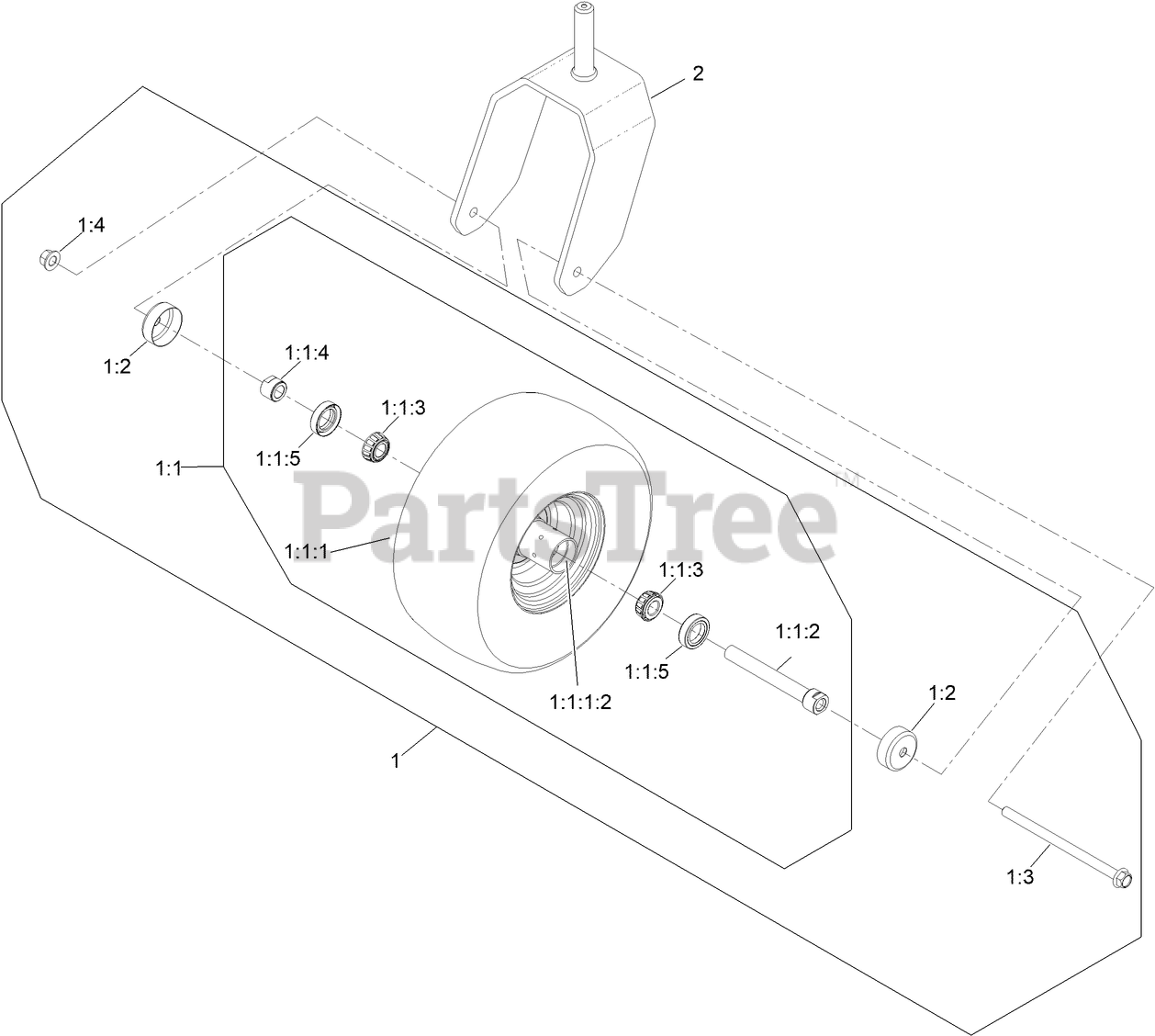

Caster Wheel and Fork Assembly Parts Diagram
Toro 145-1919
ASM-WHEEL BRGS AXLE 15X6.5-6
$363.99
$
Usually ships in 3-6 days
1:1
ASM WHL/BRGS 15X6.5-6
Note: Not serviced separately
$
$
Not available
Toro 145-1921
WHEEL AND TIRE ASM 15X6.5-6 SP
$
$
Currently unavailable
Toro 1-633584
BEARING-CUP
$9.49
$
In Stock, Qty 20+
Toro 126-7796
CASTER AXLE ASM
$22.99
$
In Stock, only 1 left!
Toro 1-633585
BEARING-CONE, TAPER
$25.99
$
In Stock, Qty 20+
Toro 103-3051
SPACER-NUT
$9.49
$
In Stock, Qty 20+
Toro 103-0063
SEAL-CASTER
$10.99
$
In Stock, Qty 20+
Toro 103-2768
GUARD-SEAL
$3.99
$
In Stock, Qty 20+
Toro 126-5389
SCREW-HHF
$8.99
$
In Stock, Qty 20+
Toro 99-5107
NUT-LOCK
$2.49
$
In Stock, Qty 20+
Toro 147-0295-01
15IN CASTER FORK
$147.99
$
In Stock, only 2 left!
