74055 (4000) - Toro 60" Z Master Zero-Turn Mower (SN: 413000000 - 414070843) Caster Wheel and Fork Assembly Parts Diagram

60" Z Master Zero-Turn Mower

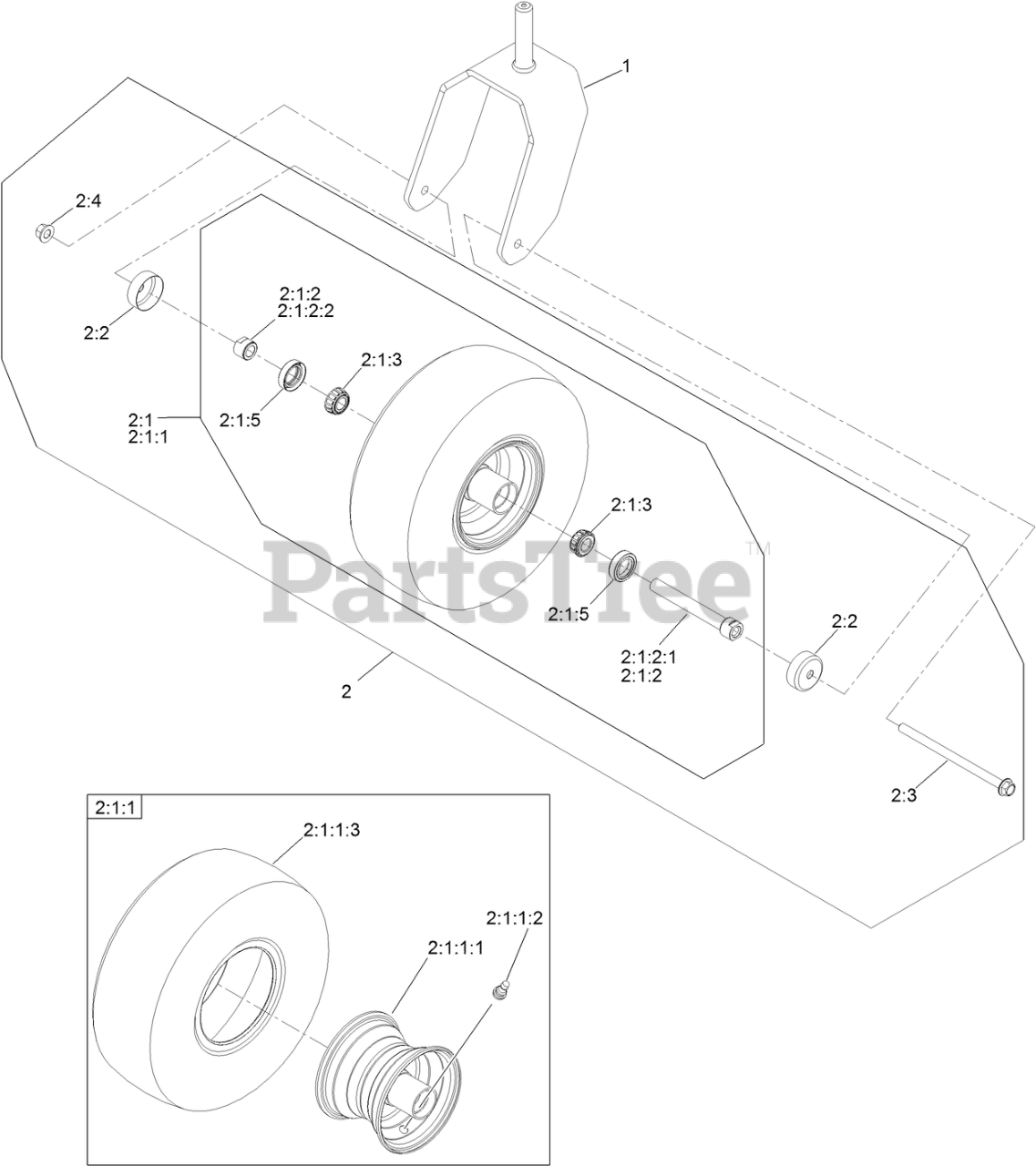

Caster Wheel and Fork Assembly Parts Diagram

  • Title

1

Toro 147-0295-01

15IN CASTER FORK

$147.99

$

In Stock, only 2 left!

0

2

Toro 140-4943

ASM-WHEEL BRGS AXLE 15X6.5-6

$236.99

$

Usually ships in 3-6 days

0

2:1

ASM WHL/BRGS 15X6.5-6

Note: Not serviced separately

$

$

Not available

2:1:1

Toro 140-4945

WHEEL AND TIRE ASM 15X6.5-6

$205.99

$

Usually ships in 3-6 days

0

2:1:1:1

Toro 139-3624

WHEEL RIM 6X4.5

$112.99

$

Usually ships in 3-6 days

0

2:1:1:2

Toro 5108

VALVE

$8.49

$

Usually ships in 3-6 days

0

2:1:1:3

Toro 140-4946

TIRE

$146.99

$

Usually ships in 3-6 days

0

2:1:2

CASTER AXLE ASM

Note: Not serviced separately

$

$

Not available

2:1:2:1

Toro 126-5220

AXLE-CASTER

$

$

Currently unavailable

2:1:2:2

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

2:1:3

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

2:1:5

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

2:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:3

Toro 126-5389

SCREW-HHF

$8.99

$

In Stock, Qty 20+

0

2:4

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0
