74060 (7500-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 402252575 - 404399999) Hydraulic Assembly Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

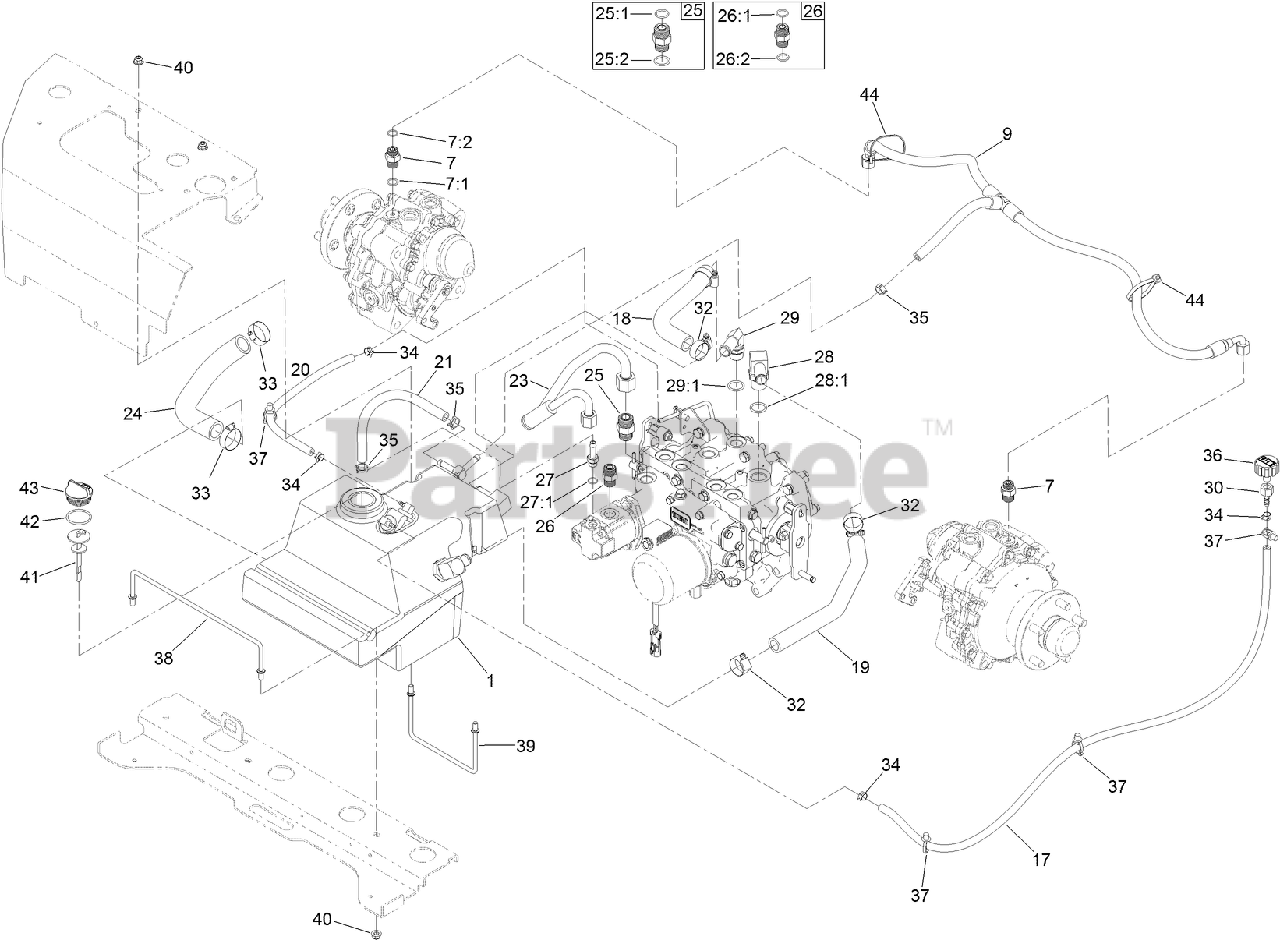

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 126-6764

HYD RESERVOIR ASM
(Superseded to 142-5034)

$

$

Not available

7

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 16

0

7:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

9

Toro 135-3731

TEE HOSE ASM

$144.99

$

Usually ships in 3-6 days

0

17

Toro 126-6776

HOSE

$27.99

$

Usually ships in 3-6 days

0

18

Toro 126-6767

HOSE-RETURN

$19.99

$

Usually ships in 3-6 days

0

19

Toro 126-6768

HOSE-RETURN

$26.99

$

Usually ships in 3-6 days

0

20

Toro 126-6778

HOSE

$14.99

$

Usually ships in 3-6 days

0

21

Toro 126-6766

HOSE

$7.99

$

Usually ships in 3-6 days

0

23

Toro 126-8688

TUBE ASM

$206.99

$

Usually ships in 3-6 days

0

24

Toro 126-6774

HOSE-SUCTION

$27.99

$

Usually ships in 3-6 days

0

25

Toro 340-7

FITTING-STRAIGHT

$16.99

$

In Stock, only 4 left!

0

25:1

Toro 237-65

O-RING

$3.49

$

In Stock, Qty 11

0

25:2

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

26

Toro 340-4

FITTING-STRAIGHT

$13.99

$

In Stock, only 3 left!

0

26:1

Toro 237-30

O-RING

$3.49

$

In Stock, Qty 20+

0

26:2

Toro 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

27

Toro 103-1912

ADAPTER-STRAIGHT

$26.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

28

Toro 353-987

FITTING-ELBOW, 90

$87.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-81

O-RING

$3.49

$

In Stock, only 2 left!

0

29

Toro 87-8170

FITTING-90

$52.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

30

Toro 354-95

FITTING-STRAIGHT

$7.99

$

Usually ships in 3-6 days

0

32

Toro 2412-129

CLAMP-HOSE

$5.99

$

In Stock, only 3 left!

0

33

Toro 2412-34

CLAMP-HOSE

$2.99

$

In Stock, only 2 left!

0

34

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

35

Toro 103-1988

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

36

Toro 68-6150

BREATHER

$31.99

$

In Stock, only 2 left!

0

37

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, only 3 left!

0

38

Toro 126-7547

ROD-SUPPORT, HYD TANK

$26.99

$

Usually ships in 3-6 days

0

39

Toro 126-7546

ROD-SUPPORT, HYD TANK

$31.99

$

Usually ships in 3-6 days

0

40

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

41

Toro 112-6365

DIPSTICK

$98.99

$

Usually ships in 3-6 days

0

42

Toro 94-8166

O-RING

$5.49

$

Usually ships in 3-6 days

0

43

Toro 93-7498

PLUG-PLASTIC

$30.99

$

In Stock, only 4 left!

0

44

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
