74074 (7500-D) - Toro 72" Z Master Zero-Turn Mower, Rear-Discharge Deck (SN: 404400000 - 999999999) Deck Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Rear-Discharge Deck

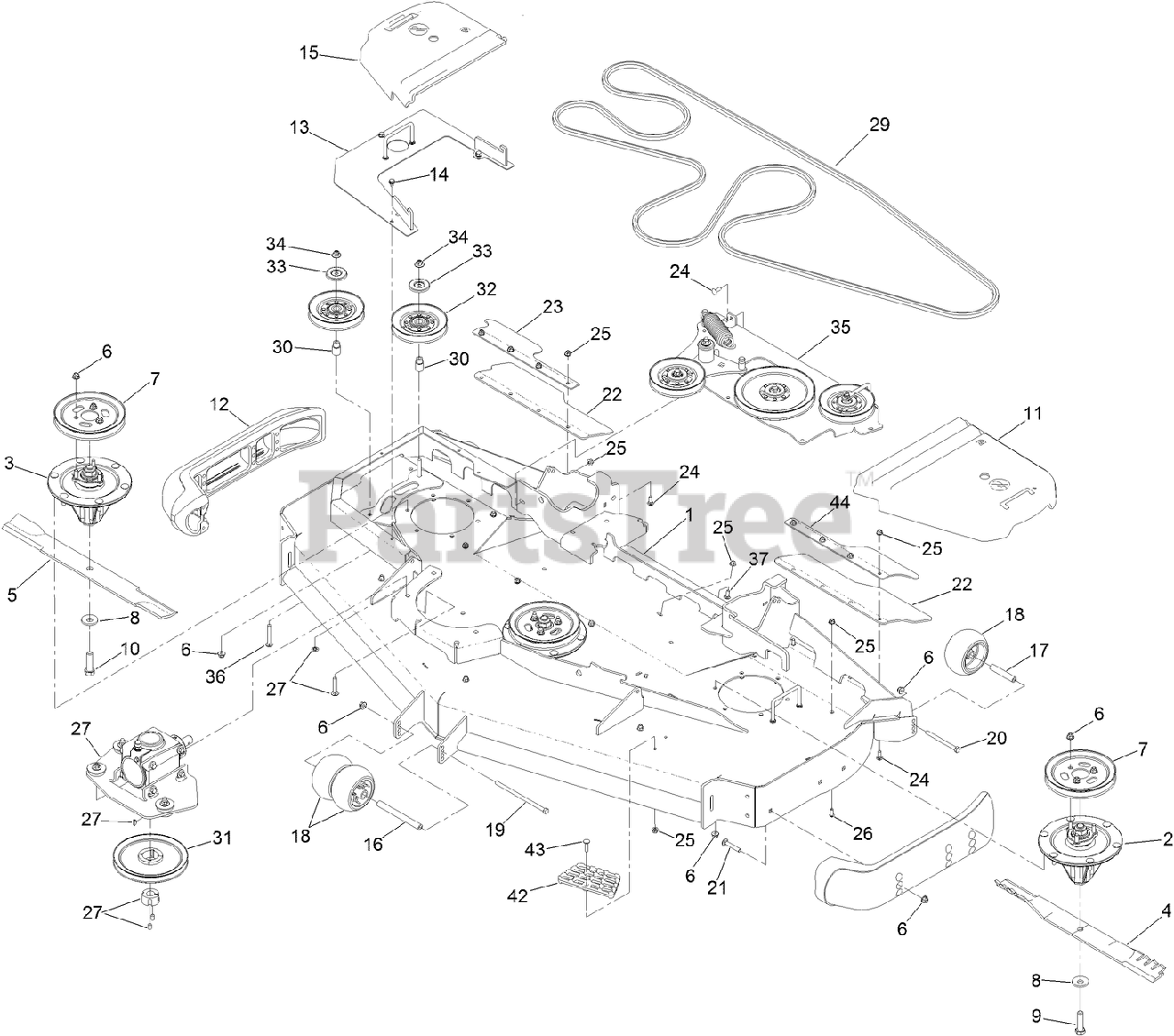

Deck Assembly Parts Diagram

  • Title

1

Toro 126-6819

DECK DECAL ASM

$2421.99

$

Usually ships in 3-6 days

0

2

Toro 127-0560

SPINDLE ASM

$593.99

$

In Stock, Qty 5

0

3

Toro 127-0570

LH SPINDLE ASM

$593.99

$

In Stock, only 1 left!

0

4

Toro 105-7719-03

BLADE-ATOMIC, 24.5IN

$56.99

$

In Stock, Qty 7

0

5

Toro 125-9327-01

BLADE-ROTARY, 24.5IN (LOW FLOW)

$41.99

$

In Stock, only 2 left!

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 105-7734

PULLEY

$53.99

$

In Stock, Qty 11

0

8

Toro 103-0865

WASHER-BLADE BOLT, HEAVY

$6.49

$

In Stock, Qty 20+

0

9

Toro 51-4060

SCREW-BLADE

$8.99

$

In Stock, Qty 20+

0

10

Toro 125-9326

SCREW-BLADE, LH

$27.99

$

In Stock, only 2 left!

0

11

Toro 109-6938

COVER-BELT, LH

$109.99

$

In Stock, Qty 20+

0

12

Toro 112-1479

SKID-BUMPER, DECK

$114.99

$

Usually ships in 3-6 days

0

13

Toro 125-9374-01

COVER-REVERSE DRIVE

$168.99

$

Usually ships in 3-6 days

0

14

Toro 9266934

SCREW

$10.99

$

In Stock, only 2 left!

0

15

Toro 116-0094

COVER-BELT, RH

$96.99

$

In Stock, Qty 20+

0

16

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

17

Toro 98-7912

TUBE-SPANNER

$15.99

$

In Stock, Qty 20+

0

18

Toro 1-603299

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

19

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

20

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

21

Toro 3231-7

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

22

Toro 135-0709

GUARD-TIRE

$31.99

$

Usually ships in 3-6 days

0

23

Toro 135-0402-01

SUPPORT-FLAP, OUTER (RH)

$54.99

$

Usually ships in 3-6 days

0

24

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 3274-55

SCREW-HSBH

$5.99

$

In Stock, Qty 6

0

27

GEARBOX ASM

Note: Not serviced separately

$

$

Not available

29

Toro 126-2561

BELT-BB

$237.99

$

Usually ships in 3-6 days

0

30

Toro 126-3312

STANDOFF-IDLER

$18.99

$

Usually ships in 3-6 days

0

31

Toro 107-4767

PULLEY

$275.99

$

Usually ships in 3-6 days

0

32

Toro 126-8766

IDLER V

$111.99

$

In Stock, only 2 left!

0

33

Toro 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

0

34

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 126-3372

IDLER MOUNT ASM

$819.99

$

Usually ships in 3-6 days

0

36

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

37

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

42

Toro 126-4781-03

STEP-DECK

$32.99

$

In Stock, only 2 left!

0

43

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

44

Toro 135-0403-01

SUPPORT-FLAP, OUTER (LH)

$54.99

$

Usually ships in 3-6 days

0
