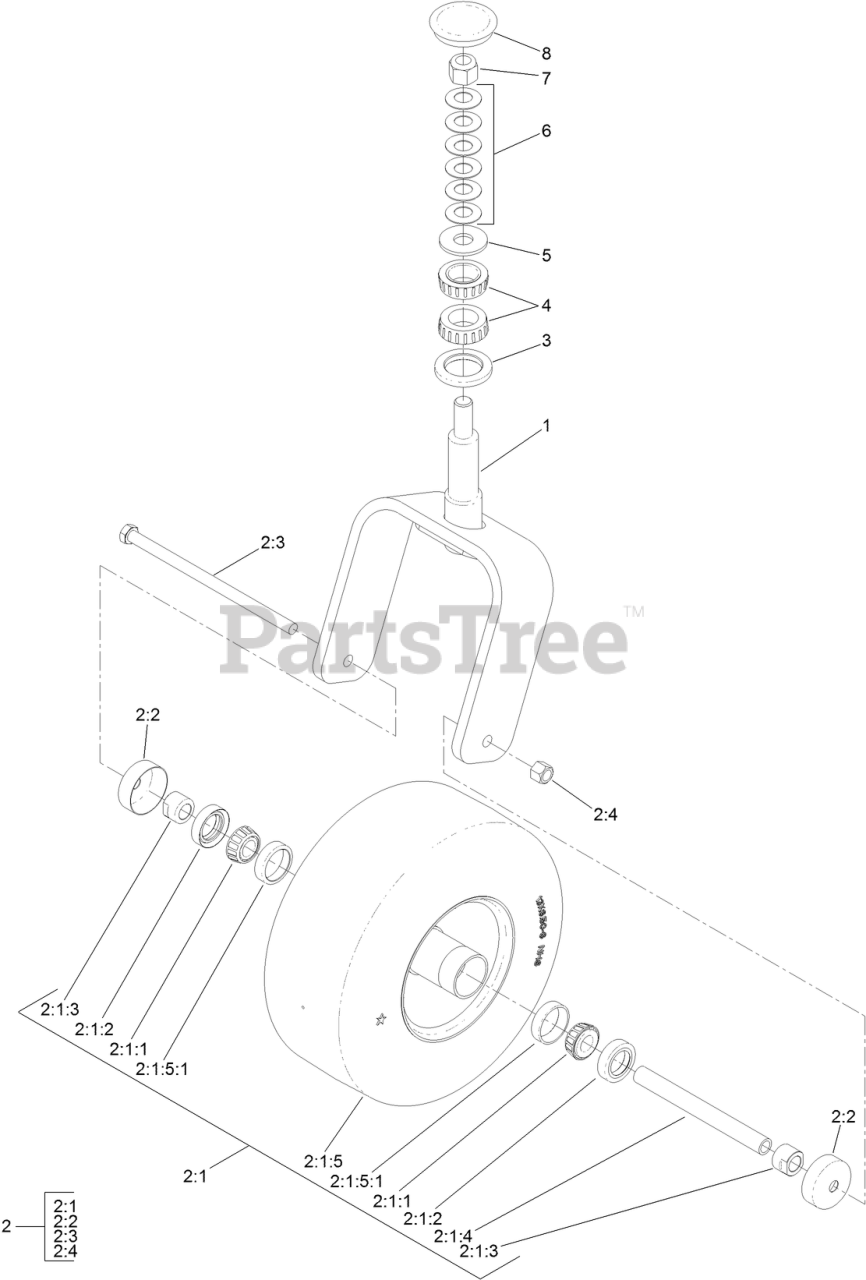

74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Caster Fork and Wheel Assembly Parts Diagram

96" Z Master Zero-Turn Mower

Caster Fork and Wheel Assembly Parts Diagram

  • Title

1

Toro 135-0750-01

FORK-CASTER

$229.99

$

Usually ships in 3-6 days

0

2

WHEEL AND AXLE ASM

Note: Not serviced separately

$

$

Not available

2:1

Toro 127-9526

WHEEL AND BEARING ASM

$

$

Not available

2:1:1

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

2:1:2

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

2:1:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$9.49

$

In Stock, Qty 20+

0

2:1:4

Toro 126-5361

AXLE CASTER ASM

$22.99

$

In Stock, Qty 9

0

2:1:5

Toro 127-9527

WHEEL AND TIRE ASM

$251.99

$

Usually ships in 3-6 days

0

2:1:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 20+

0

2:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:3

Toro 325-39

SCREW-HH

$19.99

$

In Stock, Qty 20+

0

2:4

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 135-0355

SEAL-GREASE

$9.49

$

In Stock, Qty 5

0

4

Toro 103-9028

BEARING-ROLLER, CONE TAPER

$34.99

$

In Stock, Qty 11

0

5

Toro 3256-8

WASHER-FLAT

$4.49

$

In Stock, Qty 14

0

6

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

7

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

8

Toro 126-9369

CAP-GREASE

$5.99

$

In Stock, Qty 20+

0
