74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Caster Fork and Wheel Assembly 2 Parts Diagram

96" Z Master Zero-Turn Mower

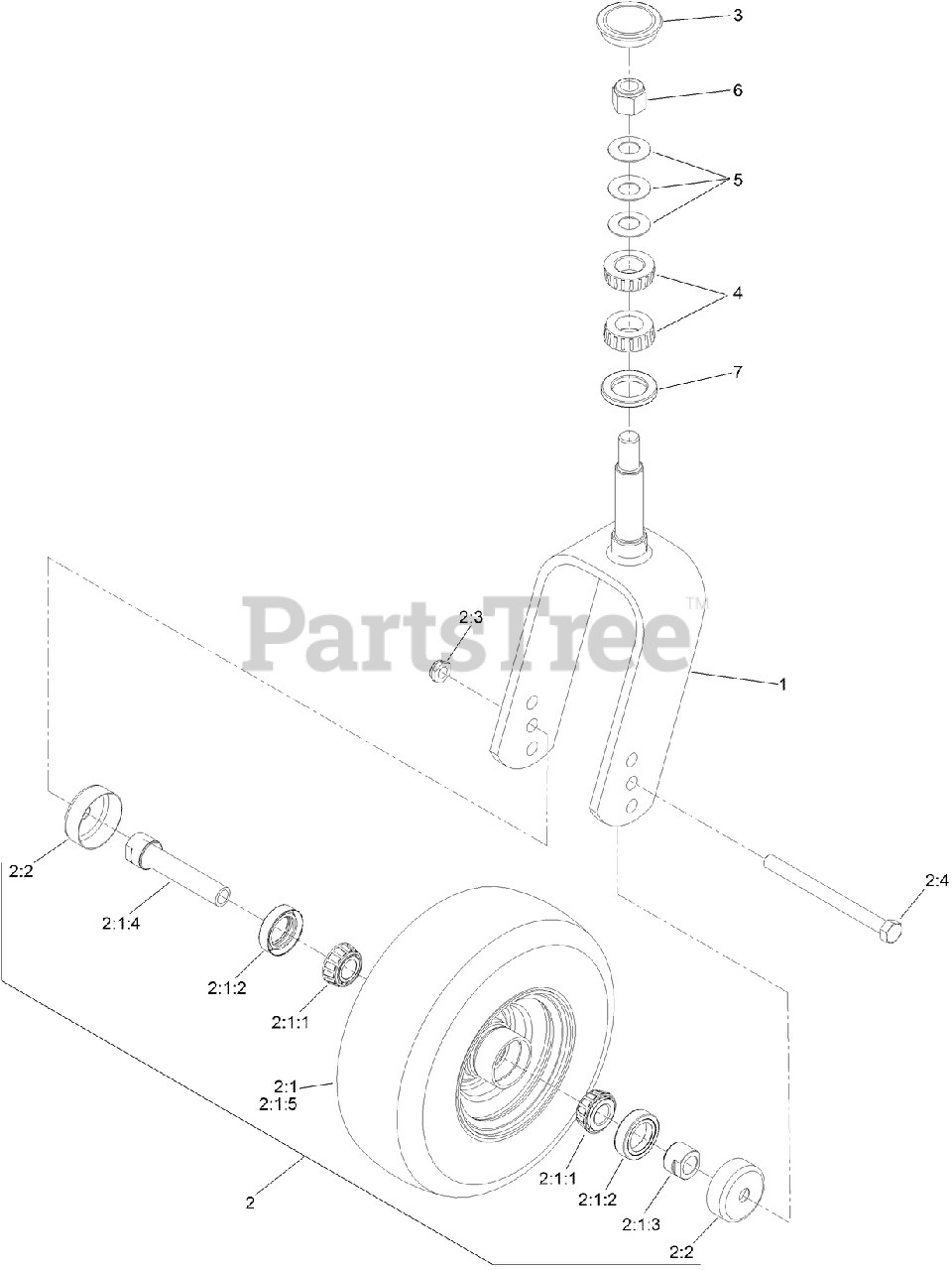

Caster Fork and Wheel Assembly 2 Parts Diagram

  • Title

1

Toro 135-3794-01

CASTER-FORK

$229.99

$

In Stock, only 4 left!

0

2

Toro 130-4558

WHEEL/TIRE AND BEARING ASM

$237.99

$

In Stock, Qty 7

0

2:1

WHEEL AND BEARING ASM

Note: Not serviced separately

$

$

Not available

2:1:1

Toro 1-633585

BEARING-CONE, TAPER

$25.99

$

In Stock, Qty 20+

0

2:1:2

Toro 103-0063

SEAL-CASTER

$10.99

$

In Stock, Qty 20+

0

2:1:3

Toro 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut

$9.49

$

In Stock, Qty 20+

0

2:1:4

Toro 126-5359

CASTER AXLE ASM

$20.99

$

In Stock, only 2 left!

0

2:1:5

Toro 130-4563

WHEEL AND TIRE ASM

$204.99

$

Usually ships in 3-6 days

0

2:2

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

2:3

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

2:4

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

3

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

4

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

5

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

7

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0
