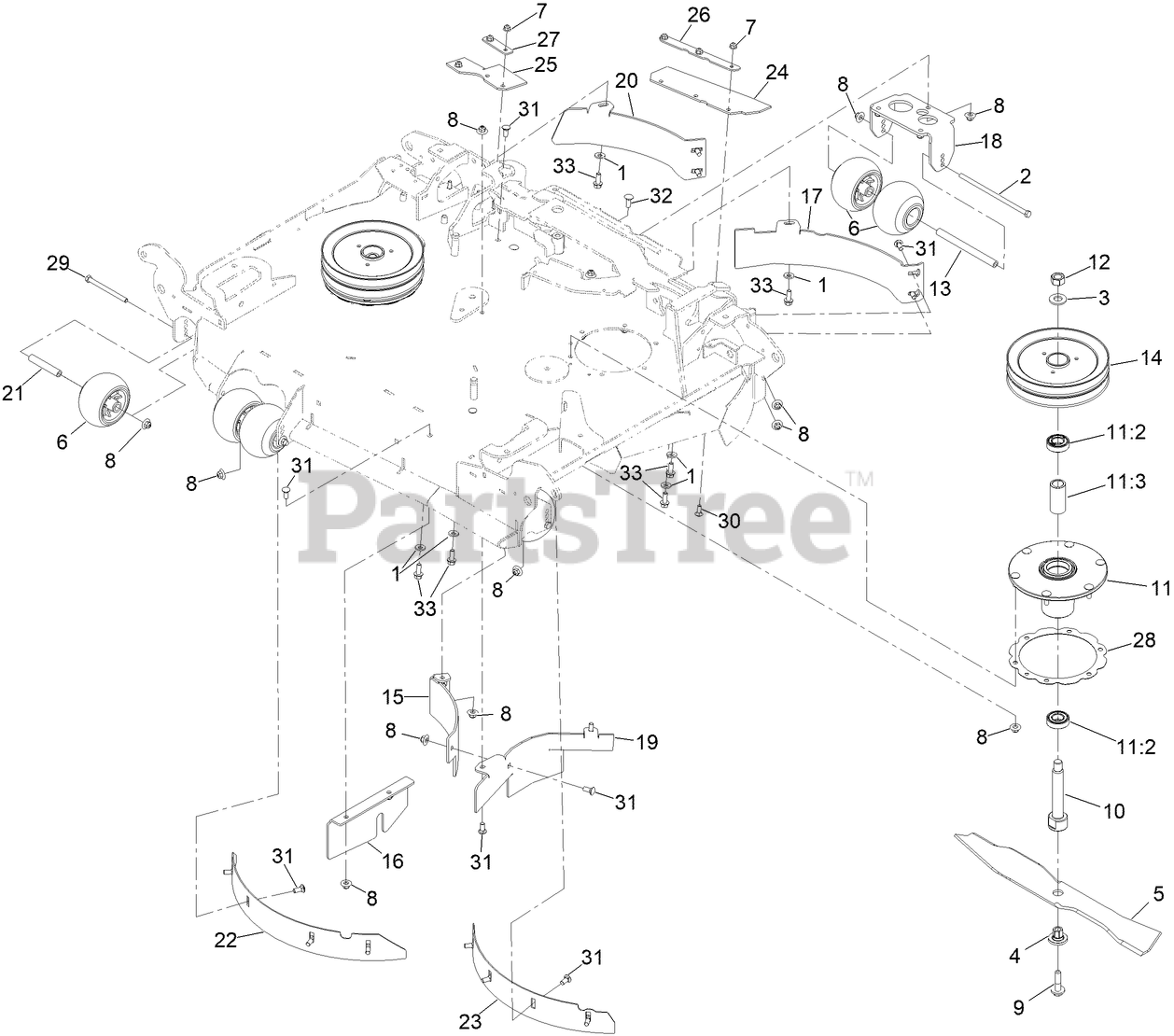

74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Center Deck Cutting Assembly Parts Diagram

96" Z Master Zero-Turn Mower

Center Deck Cutting Assembly Parts Diagram

  • Title

1

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

2

Toro 99-7203

SCREW-HH

$11.99

$

In Stock, Qty 17

0

3

Toro 103-2802

WASHER

$5.99

$

In Stock, Qty 20+

0

4

Toro 137-9787

BUSHING-HEX

$8.49

$

In Stock, Qty 20+

0

5

Toro 140-1246

BLADE-24.50 MULCH

$43.99

$

In Stock, Qty 10

0

6

Toro 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 20+

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 109-9220

SCREW-SEMS

$8.99

$

In Stock, Qty 20+

0

10

Toro 138-6045

SHAFT-SPINDLE

$49.99

$

In Stock, only 4 left!

0

11

Toro 137-9780

SPINDLE ASM

$168.99

$

In Stock, Qty 12

0

11:2

Toro 116-0720

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

11:3

Toro 138-6042

SPACER-BEARING

$10.99

$

Usually ships in 3-6 days

0

12

Toro 116-7306

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

13

Toro 126-6115

SPACER-WHEEL

$12.99

$

In Stock, Qty 9

0

14

Toro 140-1186

SHEAVE-DOUBLE BLADE DRIVE

$152.99

$

Usually ships in 3-6 days

0

15

Toro 135-0601-01

BAFFLE-CENTER, REAR (RH)

$75.99

$

Usually ships in 3-6 days

0

16

Toro 135-0603-01

PLATE-BLOCK, FRONT

$35.99

$

Usually ships in 3-6 days

0

17

Toro 135-3462-01

BAFFLE-BLOCK, LH CTR

$94.99

$

Usually ships in 3-6 days

0

18

Toro 135-1036-01

BRACKET-ANTISCALP, REAR

$61.99

$

Usually ships in 3-6 days

0

19

Toro 135-1827-01

BAFFLE-CENTER

$64.99

$

Usually ships in 3-6 days

0

20

Toro 135-3463-01

BAFFLE-BLOCK, RH CTR

$88.99

$

Usually ships in 3-6 days

0

21

Toro 126-7140

SPACER-WHEEL SHORT

$17.99

$

In Stock, Qty 11

0

22

Toro 135-2459-01

BAFFLE-DEPTH, LH

$38.99

$

Usually ships in 3-6 days

0

23

Toro 135-2460-01

BAFFLE-DEPTH, RH

$38.99

$

Usually ships in 3-6 days

0

24

Toro 135-2658

FLAP-DISCHARGE

$12.99

$

Usually ships in 3-6 days

0

25

Toro 135-2659

FLAP-DISCHARGE

$8.49

$

Usually ships in 3-6 days

0

26

Toro 135-3760-03

SUPPORT-FLAP

$10.99

$

Usually ships in 3-6 days

0

27

Toro 135-3761-03

SUPPORT-FLAP, RH

$7.49

$

Usually ships in 3-6 days

0

28

Toro 140-0986

RING-SPACER, HOUSING

$18.99

$

Usually ships in 3-6 days

0

29

Toro 323-38

SCREW-HH

$12.99

$

In Stock, Qty 20+

0

30

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

31

Toro 3231-12

BOLT-CARR

$6.99

$

In Stock, Qty 17

0

32

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

33

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0
