74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Deck Fold Assembly Parts Diagram

96" Z Master Zero-Turn Mower

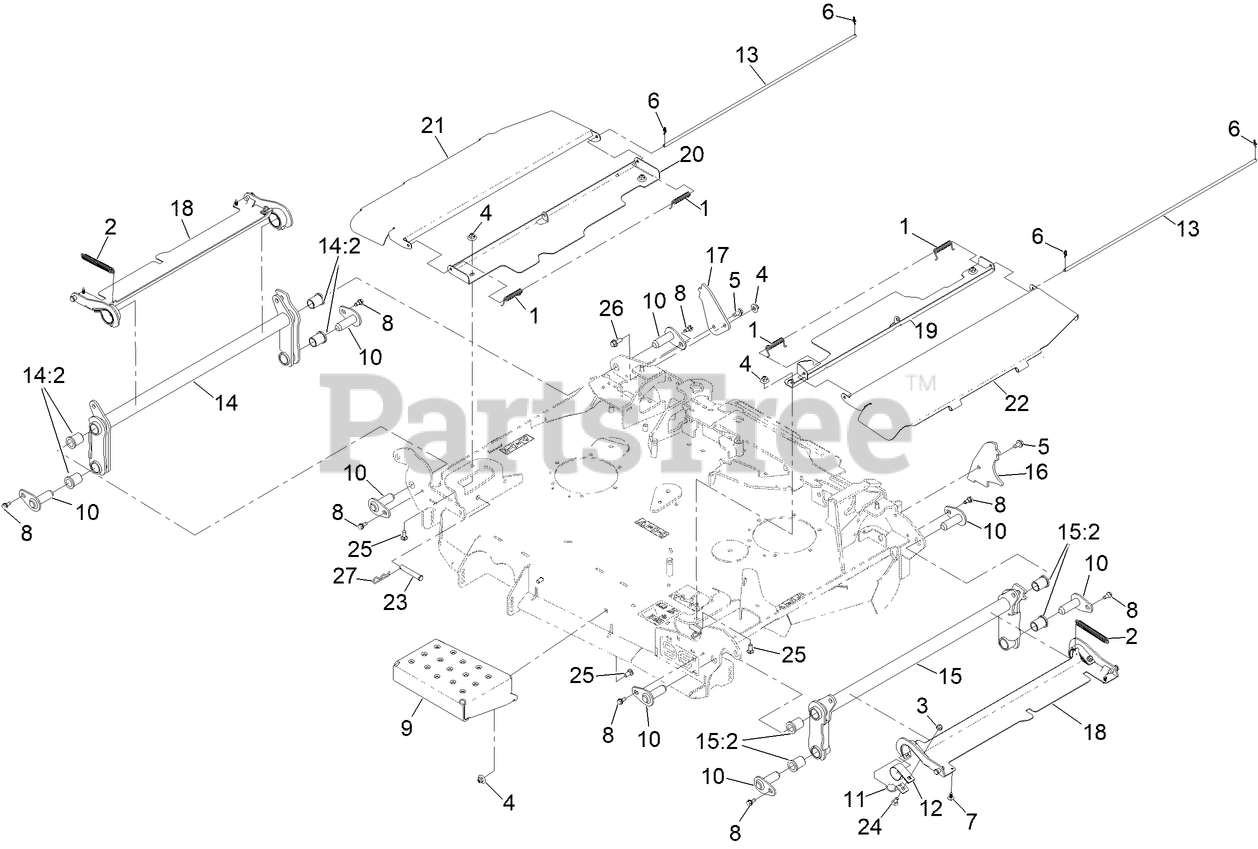

Deck Fold Assembly Parts Diagram

  • Title

1

Toro 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 15

0

2

Toro 103-4813

SPRING

$7.49

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, only 2 left!

0

6

Toro 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 3 left!

0

7

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

8

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

9

Toro 135-6903-01

PANEL-STEP

$84.99

$

Usually ships in 3-6 days

0

10

Toro 142-4813

ASM-DECK PIN

$27.99

$

In Stock, Qty 20+

0

11

Toro 126-9764

PLATE-RETAINER, BEARING

$14.99

$

Usually ships in 3-6 days

0

12

Toro 135-0584

BEARING-STRAP, NYLON

$6.99

$

In Stock, Qty 5

0

13

Toro 135-1023

COVER-ROD, PIVOT

$42.99

$

Usually ships in 3-6 days

0

14

Toro 142-5423

ASM-FOLS ARM, RH

$480.99

$

Usually ships in 3-6 days

0

14:2

Toro 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

15

Toro 142-5424

ASM-FOLD ARM, LH

$480.99

$

Usually ships in 3-6 days

0

15:2

Toro 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

16

Toro 135-2628-01

BRACKET-DECK STOP, LH

$25.99

$

Usually ships in 3-6 days

0

17

Toro 135-2629-01

BRACKET-DECK STOP, RH

$25.99

$

Usually ships in 3-6 days

0

18

Toro 135-2630-01

COVER-WING

$222.99

$

In Stock, only 1 left!

0

19

Toro 135-2651-01

SHIELD-CENTER, LH

$79.99

$

Usually ships in 3-6 days

0

20

Toro 135-2652-01

SHIELD-CENTER, RH

$65.99

$

Usually ships in 3-6 days

0

21

Toro 135-6174-03

PANEL-SHIELD HINGE, RH

$108.99

$

Usually ships in 3-6 days

0

22

Toro 135-6178-03

PANEL-SHIELD HINGE, LH

$108.99

$

Usually ships in 3-6 days

0

23

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

24

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

25

Toro 3231-12

BOLT-CARR

$6.99

$

In Stock, Qty 17

0

26

Toro 3234-42

SCREW-HHF

$3.99

$

In Stock, Qty 20+

0

27

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+
