74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Deck Lift Assembly Parts Diagram

96" Z Master Zero-Turn Mower

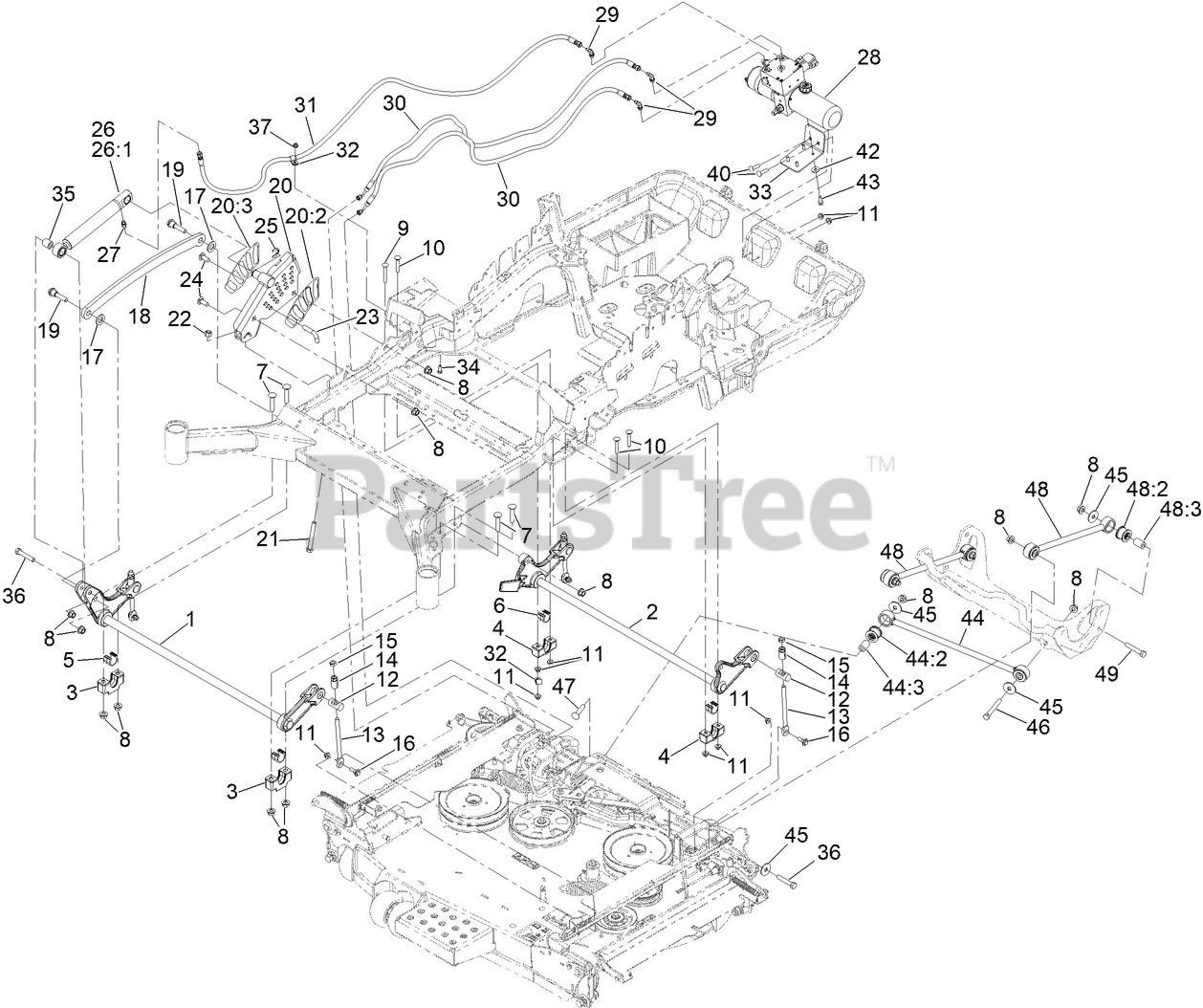

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 135-1216-03

DECKLIFT-FRONT

$451.99

$

Usually ships in 3-6 days

0

2

Toro 116-2645-03

LIFT-DECK, REAR

$451.99

$

Usually ships in 3-6 days

0

3

Toro 109-9409

SUPPORT-CROSS SHAFT, BEARING

$15.99

$

In Stock, Qty 20+

0

4

Toro 127-0553

SUPPORT-CROSS SHAFT, BEARING REAR

$15.99

$

In Stock, Qty 11

0

5

Toro 109-9410

BEARING-CROSS SHAFT, FRONT

$5.99

$

In Stock, Qty 20+

0

6

Toro 109-7173

BEARING-CROSS SHAFT, REAR

$5.99

$

In Stock, Qty 20+

0

7

Toro 116-1700

BOLT-CARR

$5.99

$

Usually ships in 3-6 days

0

8

Toro 99-5107

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

9

Toro 3231-9

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

10

Toro 3231-7

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 109-8353

TRUNNION

$15.99

$

In Stock, only 2 left!

0

13

Toro 109-8007

LINK-ADJUSTER, DECK LIFT

$17.99

$

In Stock, Qty 5

0

14

Toro 109-7840

ADJUSTER-LIFT, DECK

$8.49

$

In Stock, only 4 left!

0

15

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

16

Toro 109-9840

SCREW-SHOULDER, HHF

$5.99

$

In Stock, Qty 20+

0

17

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

18

Toro 116-0797-03

LINK-LIFT, DECK

$149.99

$

Usually ships in 3-6 days

0

19

Toro 116-2022

SCREW-HHF, SHOULDER

$10.99

$

Usually ships in 3-6 days

0

20

Toro 126-7866

HOC ASM

$354.99

$

Usually ships in 3-6 days

0

20:2

Toro 126-9275

DECAL-HEIGHT OF CUT

$18.99

$

Usually ships in 3-6 days

0

20:3

Toro 135-1432

DECAL-HEIGHT OF CUT, OUTER

$18.99

$

Usually ships in 3-6 days

0

21

Toro 116-0559

BOLT-TAP

$6.99

$

Usually ships in 3-6 days

0

22

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 116-5584

PIN-HOC

$5.49

$

In Stock, Qty 20+

0

24

Toro 3233-26

SCREW-CARR, SHORT NECK

$2.99

$

Usually ships in 3-6 days

0

25

Toro 32151-91

RING-RETAINING

$2.99

$

In Stock, Qty 12

0

26

Toro 126-7841

CYLINDER-LIFT

$601.99

$

Usually ships in 3-6 days

0

26:1

Toro 142-2767

KIT, CYL REPAIR

$136.99

$

Usually ships in 3-6 days

0

27

Toro 109-2017

Adapter, Straight

$14.99

$

Usually ships in 3-6 days

0

28

Toro 135-1582

POWER UNIT

$2007.99

$

Usually ships in 3-6 days

0

29

Toro 109-0760

Adapter, 90?

$29.99

$

Usually ships in 3-6 days

0

30

Toro 135-3330

HOSE-HYD, HP

$123.99

$

Usually ships in 3-6 days

0

31

Toro 135-3331

HOSE-HYD, HP

$123.99

$

Usually ships in 3-6 days

0

32

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

33

Toro 142-2158-03

MOUNT-POWER UNIT

$25.99

$

Usually ships in 3-6 days

0

34

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

35

Toro 135-1215

SPACER-PIVOT

$15.99

$

Usually ships in 3-6 days

0

36

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 5

0

37

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 3231-26

SCREW-CARR

$5.99

$

In Stock, only 4 left!

0

42

Toro 3290-461

WASHER-SPRING

$5.99

$

In Stock, only 1 left!

0

43

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

44

Toro 109-5013

PANHARD ROD ASM

$159.99

$

In Stock, Qty 5

0

44:2

Toro 109-5009

BUSHING-SUSPENSION, RUBBER

$5.99

$

In Stock, Qty 20+

0

44:3

Toro 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

45

Toro 86-1990

WASHER-THRUST

$4.49

$

In Stock, only 2 left!

0

46

Toro 325-17

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

47

Toro 3233-34

SCREW-CARR

$10.99

$

In Stock, Qty 5

0

48

Toro 142-3269

ASM, DECK STRUT

$47.99

$

Usually ships in 3-6 days

0

48:2

Toro 135-2466

BUSHING-RUBBER

$8.49

$

Usually ships in 3-6 days

0

48:3

Toro 109-5010

SPACER

$14.99

$

In Stock, Qty 20+

0

49

Toro 325-12

SCREW-HH

$6.99

$

In Stock, Qty 20+

0
