74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Electrical Assembly Parts Diagram

96" Z Master Zero-Turn Mower

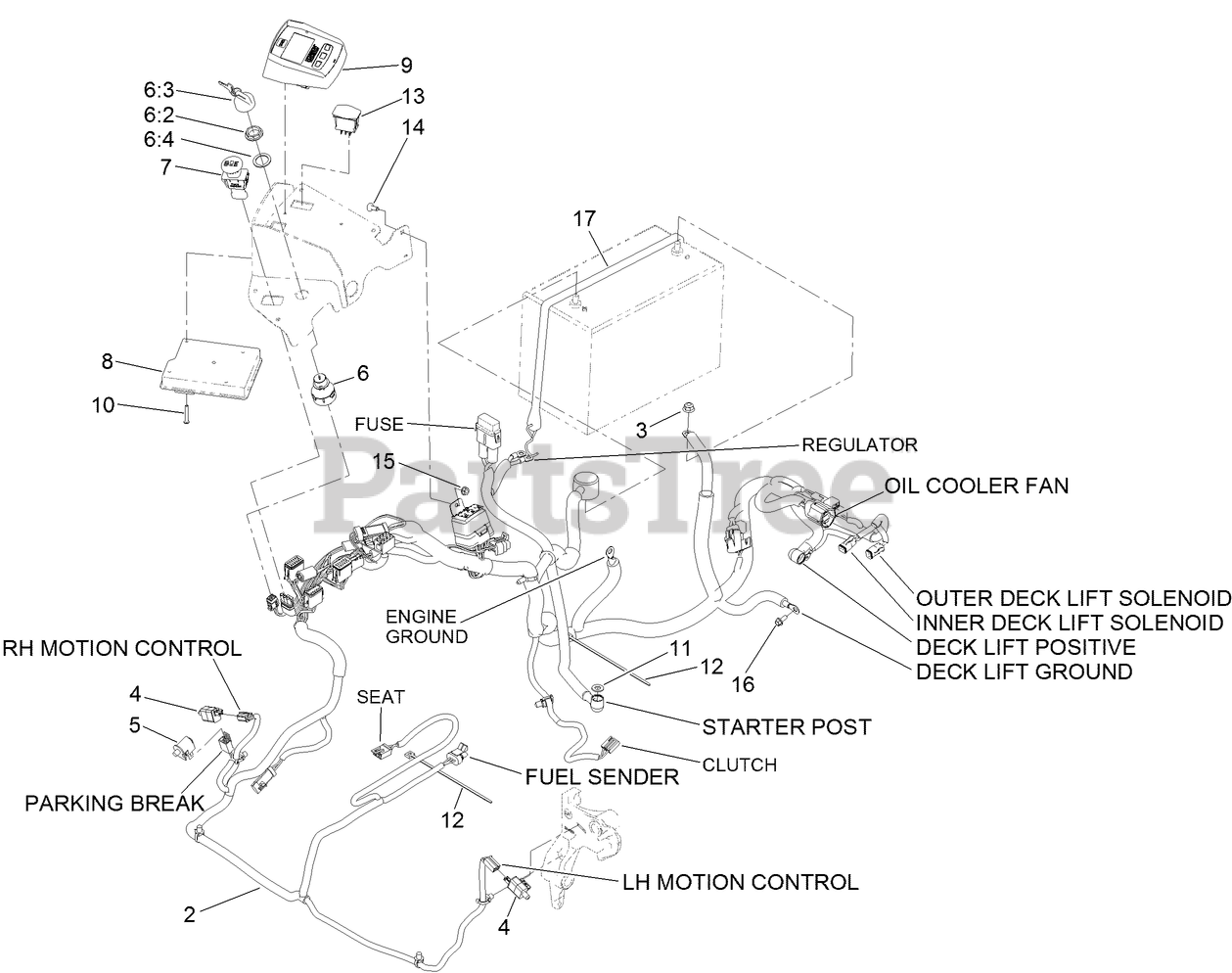

Electrical Assembly Parts Diagram

  • Title

2

Toro 142-8168

HARNESS-WIRE

$1286.99

$

Usually ships in 3-6 days

0

3

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 110-6765

SWITCH

$14.99

$

In Stock, Qty 20+

0

5

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

6

Toro 126-6285

IGNITION SWITCH ASM

$59.99

$

In Stock, Qty 20+

0

6:2

Toro 108-8660

NUT-MOUNTING

$38.99

$

Usually ships in 3-6 days

0

6:3

Toro 106-5270

IGNITION KEY SET

$25.99

$

Usually ships in 3-6 days

0

6:4

Toro 108-8659

WASHER-BACKUP

$16.99

$

Usually ships in 3-6 days

0

7

Toro 126-6187

SWITCH-PTO, SEALED

$59.99

$

In Stock, Qty 6

0

8

Toro 135-3427

MODULE-MCU

$422.99

$

Usually ships in 3-6 days

0

9

Toro 126-9976

MODULE-HORIZON

$640.99

$

Usually ships in 3-6 days

0

10

Toro 126-5092

SCREW-PPH

$3.99

$

Usually ships in 3-6 days

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 100-1535

SWITCH

$99.99

$

In Stock, only 4 left!

0

14

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

16

Toro 99-6810

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Toro 135-4440

STRAP

$26.99

$

Usually ships in 3-6 days

0
