74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 413000000 - 414087803) Rear Caster Wheel Assembly Parts Diagram

96" Z Master Zero-Turn Mower

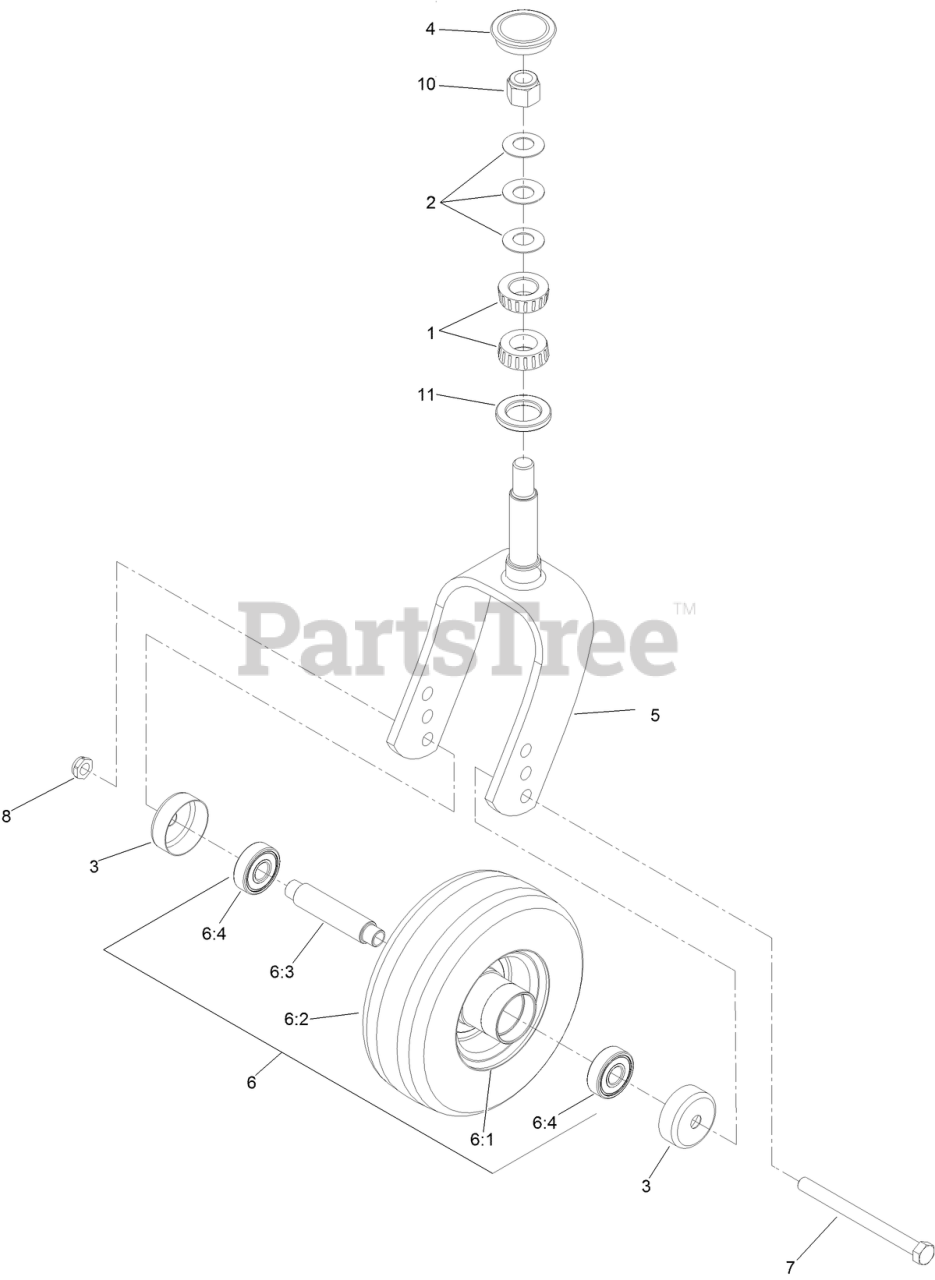

Rear Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 1-543509

BEARING-ROLLER, TAPERED

$15.99

$

In Stock, Qty 20+

0

2

Toro 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

3

Toro 135-3218

GUARD, SEAL

$6.49

$

In Stock, only 2 left!

0

4

Toro 103-4882

CAP-GREASE

$8.99

$

In Stock, Qty 20+

0

5

Toro 135-3793-01

FORK-CASTER 9"

$207.99

$

In Stock, only 2 left!

0

6

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

6:1

Toro 135-2646

WHEEL
(Superseded to 135-2645)

$121.99

$

In Stock, only 1 left!

0

6:2

Toro 112-7065

TIRE

$

$

Currently unavailable

6:3

Toro 126-7904

AXLE-CASTER

$27.99

$

In Stock, only 1 left!

0

6:4

Toro 116-4004

BEARING

$22.99

$

In Stock, Qty 11

0

7

Toro 325-20

SCREW-HH

$8.49

$

In Stock, Qty 10

0

8

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

10

Toro 3296-51

NUT-LOCK, NI

$7.49

$

In Stock, Qty 20+

0

11

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0
