74090 (7500-G) - Toro 96" Z Master Zero-Turn Mower (SN: 418000000 - 999999999) Center Deck Fold Assembly Parts Diagram

96" Z Master Zero-Turn Mower

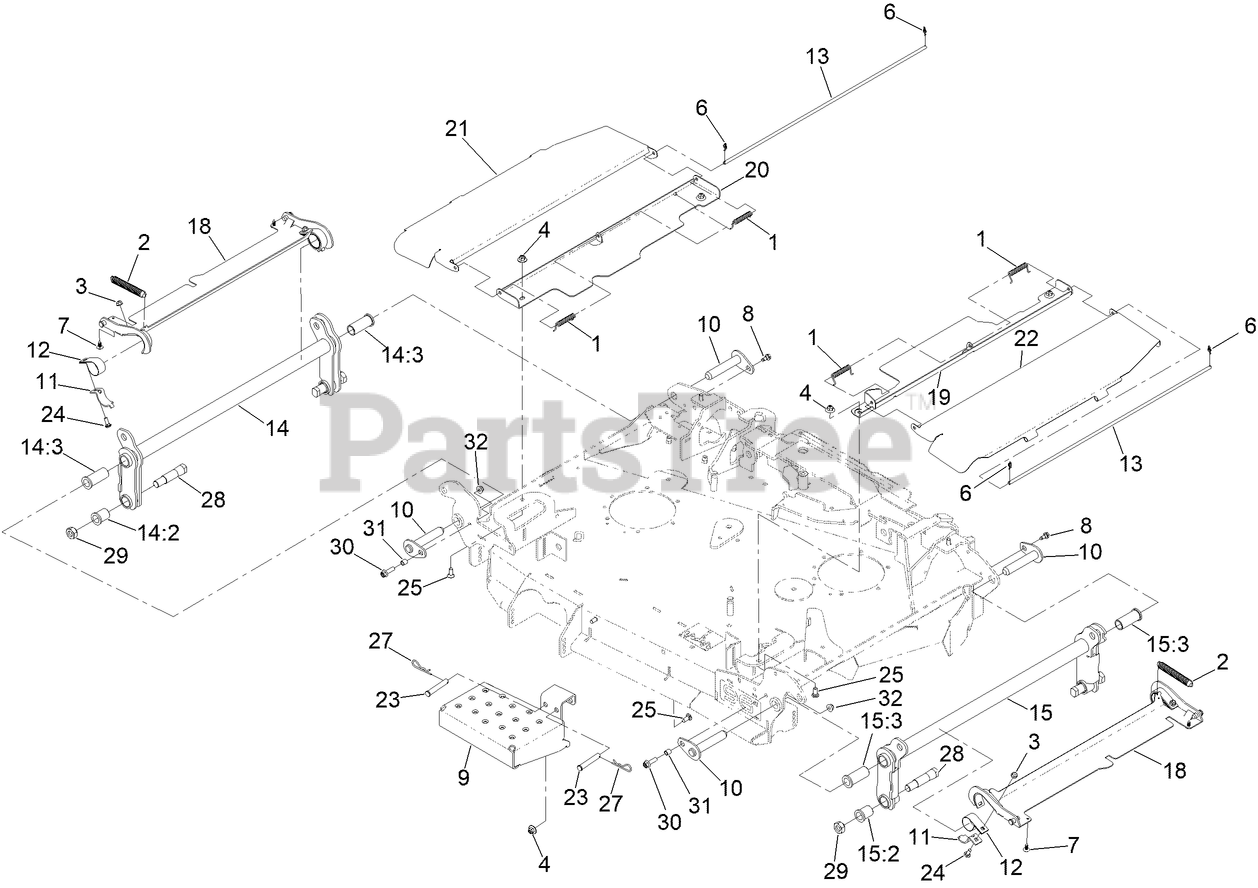

Center Deck Fold Assembly Parts Diagram

  • Title

1

Toro 99-5293

SPRING-TORSION

$11.99

$

In Stock, Qty 15

0

2

Toro 103-4813

SPRING

$7.49

$

In Stock, only 2 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 116-6639

PIN-COTTER, LOCKING

$1.49

$

In Stock, only 3 left!

0

7

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

8

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

9

Toro 146-4898-01

PLATE-STEP

$142.99

$

Usually ships in 3-6 days

0

10

Toro 146-2595

ASM-DECK PIN

$42.99

$

Usually ships in 3-6 days

0

11

Toro 126-9764

PLATE-RETAINER, BEARING

$14.99

$

Usually ships in 3-6 days

0

12

Toro 135-0584

BEARING-STRAP, NYLON

$6.99

$

In Stock, Qty 5

0

13

Toro 135-1023

COVER-ROD, PIVOT

$42.99

$

Usually ships in 3-6 days

0

14

Toro 142-6419

ASM-RH FOLD ARM

$900.99

$

Usually ships in 3-6 days

0

14:2

Toro 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

14:3

Toro 142-8114

BUSHING-FLANGE

$

$

Not available

15

Toro 142-6428

ASM-LH FOLD ARM

$900.99

$

Usually ships in 3-6 days

0

15:2

Toro 142-4794

BUSHING-FLANGED

$17.99

$

In Stock, Qty 20+

0

15:3

Toro 142-8114

BUSHING-FLANGE

$

$

Not available

18

Toro 135-2630-01

COVER-WING

$222.99

$

In Stock, only 1 left!

0

19

Toro 135-2651-01

SHIELD-CENTER, LH

$79.99

$

Usually ships in 3-6 days

0

20

Toro 135-2652-01

SHIELD-CENTER, RH

$65.99

$

Usually ships in 3-6 days

0

21

Toro 135-6174-03

PANEL-SHIELD HINGE, RH

$108.99

$

Usually ships in 3-6 days

0

22

Toro 135-6178-03

PANEL-SHIELD HINGE, LH

$108.99

$

Usually ships in 3-6 days

0

23

Toro 283-55

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

24

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

25

Toro 3231-12

BOLT-CARR

$6.99

$

In Stock, Qty 17

0

27

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

28

Toro 146-2893

BOLT-PIVOT PIN

$39.99

$

Usually ships in 3-6 days

0

29

Toro 146-3191

NUT-LUG

$16.99

$

Usually ships in 3-6 days

0

30

Toro 135-4712

SCREW, HHF

$

$

Currently unavailable

31

Toro 103-1166

SPACER-TUBE, PUMP LINK

$7.49

$

In Stock, only 1 left!

0

32

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
