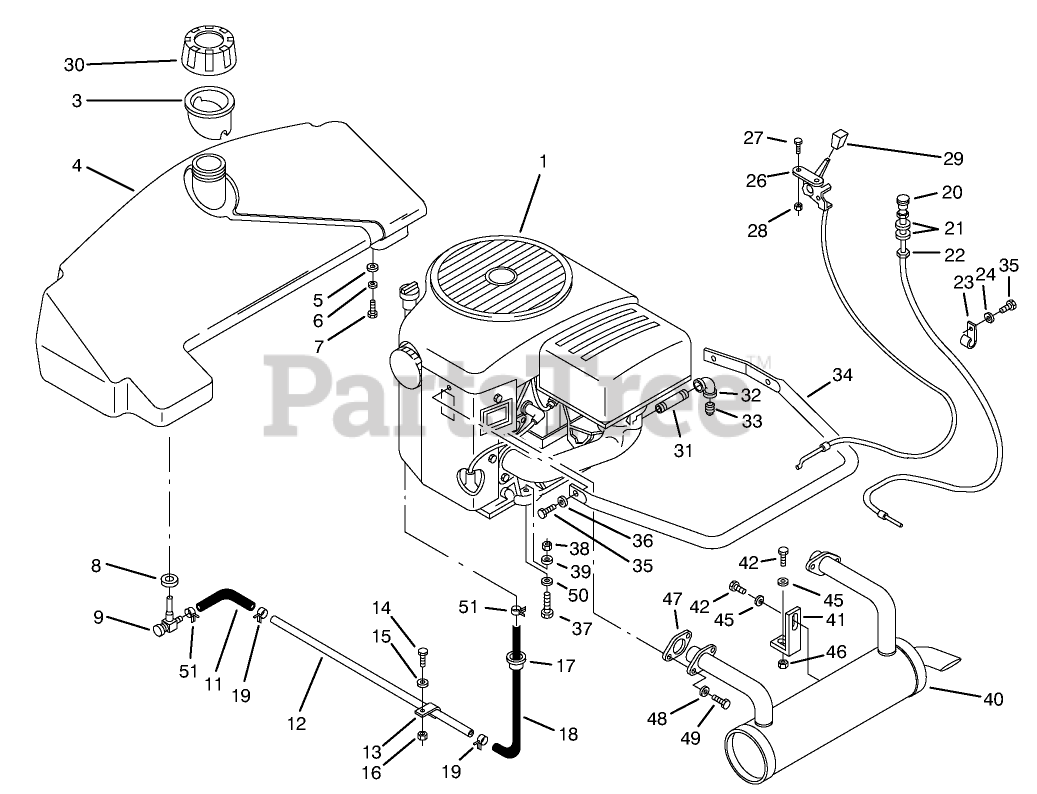

74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) Engine Fuel System Assembly Parts Diagram

Zero-Turn Mower, Drive Unit Only

Engine Fuel System Assembly Parts Diagram

  • Title

1

Toro 79-5230

See Supercession: NN10766
(Superseded to NN10766)

$10051.99

$

Usually ships in 3-6 days

0

Toro 79-5240

See Supercession: 94-1813
(Superseded to 94-1813)

Note: Not illustrated

$

$

Not available

3

Toro 115741

FUNNEL-FUEL TANK

$

$

Not available

4

Toro 116363

TANK-FUEL ASS'Y

$565.99

$

Usually ships in 3-6 days

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

9

Toro 104048

VALVE-FUEL

$41.99

$

In Stock, Qty 15

0

11

Toro 47-2966

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

12

Toro 115780

TUBE FUEL LINE

$

$

Not available

13

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

18

Toro 47-2968

Hose-18" Fuel

$

$

Currently unavailable

19

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 20+

0

20

Toro 116289

CONTROL-CHOKE

$129.99

$

Usually ships in 3-6 days

0

21

Toro 3256-46

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

22

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 2 left!

0

23

Toro 8830

CLIP

$

$

Not available

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 78-2790

CONTROL-THROTTLE

$168.99

$

Usually ships in 3-6 days

0

27

Toro 3250-14

SCREW-PPH

$7.49

$

Usually ships in 3-6 days

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 66-0120

KNOB

$6.49

$

In Stock, only 3 left!

0

30

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

31

Toro 116159

NIPPLE-3/8 X 2.5

$

$

Not available

32

Toro 114764

ELBOW 3/8 90 DEG

$17.99

$

Usually ships in 3-6 days

0

33

Toro 943420

See Supercession: 281-2
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0

34

Toro 116708

GUARD-AIR CLEANER

$254.99

$

Usually ships in 3-6 days

0

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

37

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 116030

EXHAUST-MUFFLER

$956.99

$

Usually ships in 3-6 days

0

41

Toro 116029

BRACKET-MUFFLER

$

$

Not available

42

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

45

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

46

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

47

Toro 57-9210

GASKET

$42.99

$

In Stock, only 2 left!

0

48

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

49

Toro 3274-10

SCREW-HSH

$11.99

$

In Stock, Qty 20+

0

50

Toro 116531

WASHER

$

$

Not available

51

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0
