74101 (620-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) Pto Electric Clutch Drive Assembly Parts Diagram

Zero-Turn Mower, Drive Unit Only

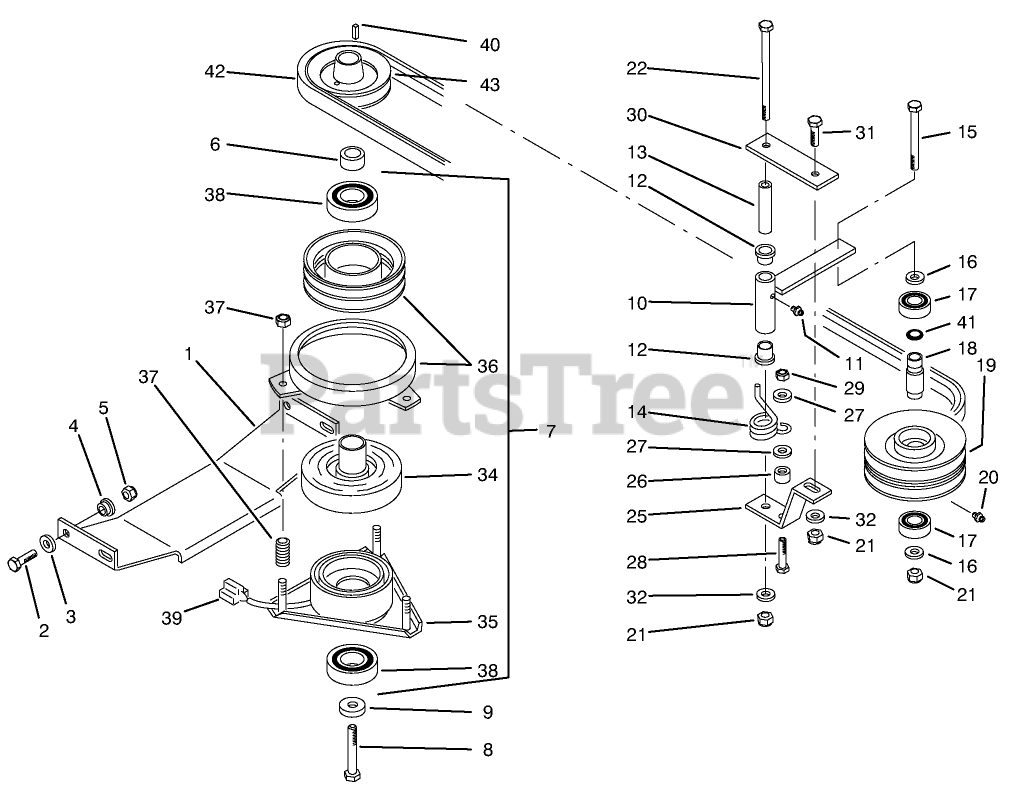

Pto Electric Clutch Drive Assembly Parts Diagram

  • Title

1

Toro 116422

BRACKET CLUTCH ST *R

$155.99

$

Usually ships in 3-6 days

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 17

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

5

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 115335

SPACER

$

$

Not available

7

Toro 116277

DISCONTINUED

$

$

Not available

8

Toro 3212-11

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

9

Toro 112843

WASHER

$3.99

$

In Stock, only 4 left!

0

10

Toro 115437

See Supercession: 116181
(Superseded to 116181)

$

$

Not available

11

Toro 111420

See Supercession: 302-11
(Superseded to 302-11)

$1.99

$

In Stock, Qty 5

0

12

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

13

Toro 109950

SPACER

$

$

Not available

14

Toro 108177

SPRING-TORSION

$20.99

$

Usually ships in 3-6 days

0

15

Toro 323-15

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 920241

See Supercession: 9202414
(Superseded to 9202414)

$5.99

$

Usually ships in 3-6 days

0

17

Toro 109966

BEARING-BALL

$17.99

$

In Stock, Qty 11

0

18

Toro 115682

SPACER-PTO IDLER

$

$

Not available

19

Toro 116184

PULLEY 2- GROOVE

$

$

Not available

20

Toro 302-5

FITTING-GREASE

$3.99

$

In Stock, Qty 20+

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

22

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

25

Toro 115440

Bracket-Idler
(Superseded to 115440-01)

$

$

Not available

26

Toro 100304

BEARING CAM ROLLER

$8.49

$

Usually ships in 3-6 days

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 116253

See Supercession: 116253-01
(Superseded to 116253-01)

$

$

Not available

31

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

32

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 117194

DISCONTINUED

$

$

Not available

35

Toro 117193

DISCONTINUED

$

$

Not available

36

Toro 117195

DISCONTINUED

$

$

Not available

Toro 93-9817

Rotor Armature Assembly (Incl. Ref. #34 36)

$

$

Currently unavailable

37

Toro 113823

ACCESS SPRING & NUT

$

$

Not available

38

Toro 114064

BEARING-ELEC CLUTCH

$90.99

$

Usually ships in 3-6 days

0

39

Toro 110459

CONNECTOR BODY *B

$1.99

$

In Stock, only 2 left!

0

40

Toro 105453

KEY

$2.49

$

In Stock, only 2 left!

0

41

Toro 971015

O RING

$2.49

$

In Stock, Qty 8

0

42

Toro 116183

V-BELT

$65.99

$

Usually ships in 3-6 days

0

43

Toro 119270

DISCONTINUED

$

$

Not available
