74105 (Z 118) - Toro Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) Engine Fuel System Parts Diagram

Zero-Turn Mower, Drive Unit Only

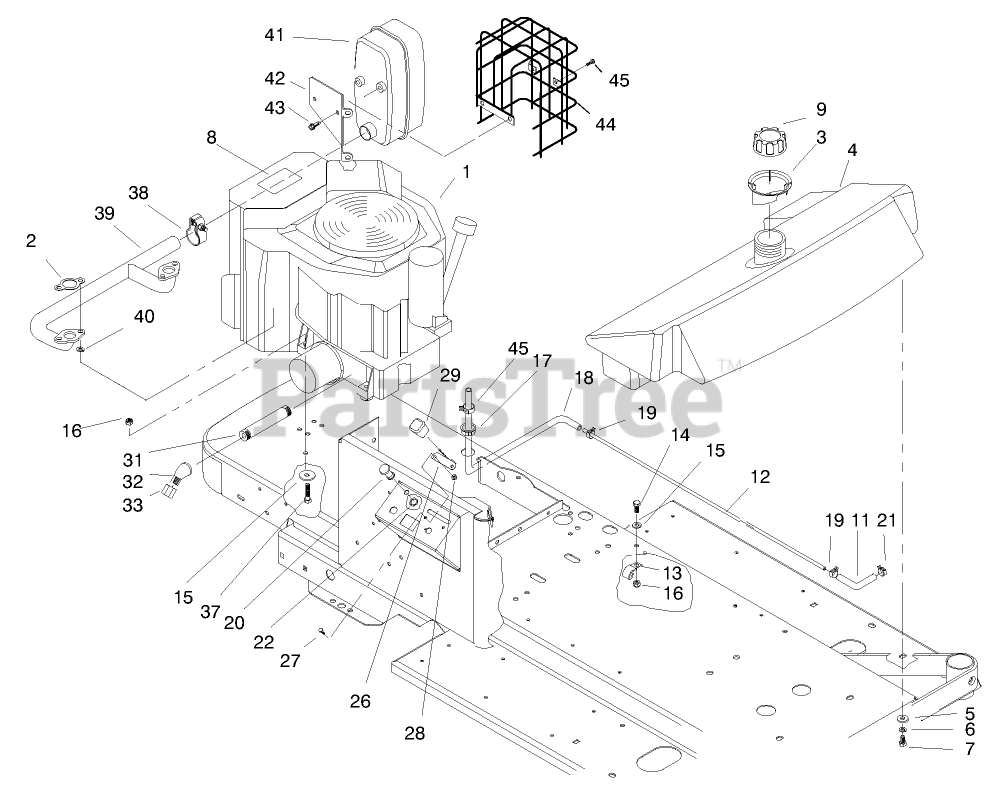

Engine Fuel System Parts Diagram

  • Title

1

Toro 94-3331

DISCONTINUED

$

$

Not available

2

Toro 93-0350

See Supercession: 110-6697
(Superseded to 110-6697)

$7.49

$

Usually ships in 3-6 days

0

3

Toro 115741

FUNNEL-FUEL TANK

$

$

Not available

4

Toro 116363

TANK-FUEL ASS'Y

$565.99

$

Usually ships in 3-6 days

0

4:1

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

4:2

Toro 104048

VALVE-FUEL

$41.99

$

In Stock, Qty 14

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

8

Toro 95-2823

DISCONTINUED

$

$

Not available

9

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

11

Toro 47-2966

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

12

Toro 115780

TUBE FUEL LINE

$

$

Not available

13

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available

18

Toro 94-9682

See Supercession: 109-0275
(Superseded to 109-0275)

$14.99

$

In Stock, only 1 left!

0

19

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 20+

0

20

Toro 94-9693

CONTROL-CHOKE

$104.99

$

Usually ships in 3-6 days

0

21

Toro 2412-98

CLAMP-HOSE
(Superseded to 702355)

$107.99

$

Usually ships in 3-6 days

0

22

Toro 109530

NUT-HEX PALNUT

$1.49

$

In Stock, only 2 left!

0

26

Toro 94-9692

CONTROL-THROTTLE

$143.99

$

Usually ships in 3-6 days

0

27

Toro 32105-23

SCREW

$1.49

$

In Stock, only 3 left!

0

28

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 66-0120

KNOB

$6.49

$

In Stock, only 3 left!

0

31

Toro 289-19

NIPPLE

$

$

Not available

32

Toro 2811-3

ELBOW

$

$

Not available

33

Toro 288-4

CAP-PIPE

$23.99

$

Usually ships in 3-6 days

0

37

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 94-9681

1.25" CLAMP ASM

$

$

Not available

39

Toro 94-9662

MANIFOLD - EXHAUST

$

$

Not available

40

Toro 92-6780

See Supercession: 33004-00
(Superseded to 33004-00)

$0.99

$

In Stock, Qty 6

0

41

Toro 94-9667

MUFFLER - Z118

$713.99

$

Usually ships in 3-6 days

0

42

Toro 94-9661

See Supercession: 94-9661-03
(Superseded to 94-9661-03)

$

$

Not available

43

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

44

Toro 94-9689

GUARD - MUFFLER

$430.99

$

Usually ships in 3-6 days

0

45

Toro 32144-42

SCREW-THD FORM, HWH

$1.49

$

Usually ships in 3-6 days

0
