74120 (616-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 059000001 - 059999999) (1995) Gearcase Ignition Assembly Parts Diagram

Zero-Turn Mower, Drive Unit Only

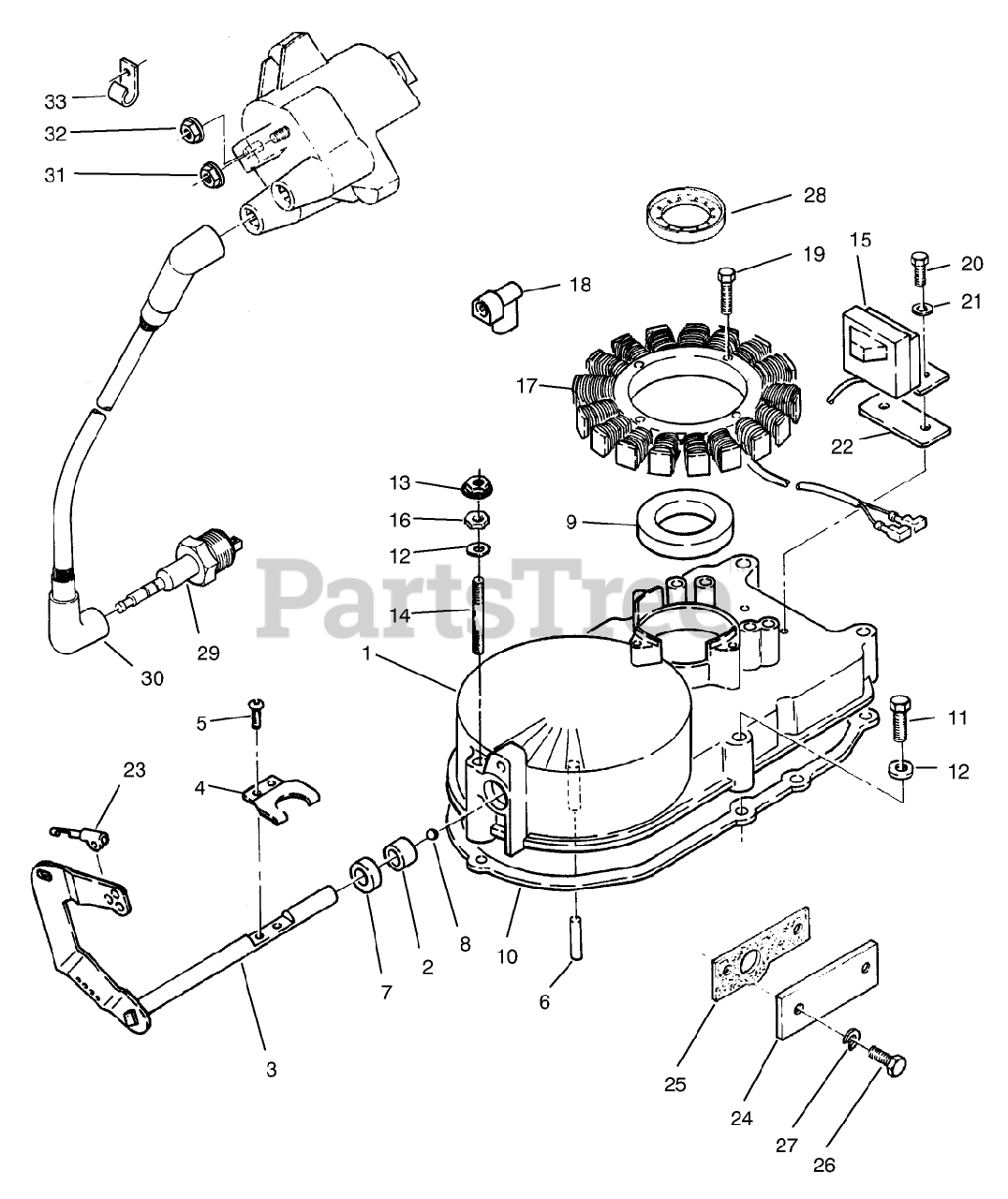

Gearcase Ignition Assembly Parts Diagram

  • Title

1

Toro NN10559

GEAR-CASE KIT

$

$

Not available

2

Toro 57-9650

DISCONTINUED

$

$

Not available

3

Toro NN10510

DISCONTINUED

$

$

Not available

4

Toro 59-0420

DISCONTINUED

$

$

Not available

5

Toro 59-0950

SCREW-PAN HD

$

$

Not available

6

Toro NN10335

See Supercession: 59-0740
(Superseded to 59-0740)

$6.49

$

Usually ships in 3-6 days

0

7

Toro 57-9570

DISCONTINUED

$

$

Not available

8

Toro 57-9630

BALL

$

$

Not available

9

Toro 57-9580

SEAL

$

$

Not available

10

Toro NN10549

DISCONTINUED
(Superseded to 71-6360)

$

$

Not available

11

Toro 82-1410

DISCONTINUED
(Superseded to NN10545)

$

$

Not available

12

Toro 57-9750

WASHER

$

$

Not available

13

Toro NN10430

See Supercession: 82-1690
(Superseded to 82-1690)

$

$

Not available

14

Toro NN10352

See Supercession: 59-0790
(Superseded to 59-0790)

$

$

Not available

15

Toro NN10444

See Supercession: 71-6380
(Superseded to 71-6380)

$499.99

$

Usually ships in 3-6 days

0

16

Toro 59-1130

NUT-GEAR COVER

$

$

Not available

17

Toro 57-9440

See Supercession: 92-0967
(Superseded to 92-0967)

$923.99

$

Usually ships in 3-6 days

0

18

Toro NN10291

DISCONTINUED

$

$

Not available

19

Toro NN10389

See Supercession: 71-6390
(Superseded to 71-6390)

$

$

Not available

20

Toro NN10394

See Supercession: 71-6400
(Superseded to 71-6400)

$

$

Not available

21

Toro NN10424

See Supercession: 82-1660
(Superseded to 82-1660)

$

$

Not available

22

Toro NN10516

See Supercession: 71-6410
(Superseded to 71-6410)

$

$

Not available

23

Toro 57-9700

CLIP

$

$

Not available

24

Toro NN10515

See Supercession: 71-5990
(Superseded to 71-5990)

$

$

Not available

25

Toro 57-9260

GASKET

$

$

Not available

26

Toro NN10368

See Supercession: 82-1360
(Superseded to 82-1360)

$

$

Not available

27

Toro NN10542

See Supercession: 82-1340
(Superseded to 82-1340)

$

$

Not available

28

Toro NN10247

See Supercession: 71-6010
(Superseded to 71-6010)

$250.99

$

Usually ships in 3-6 days

0

29

Toro 57-9340

SPARK PLUG

$21.99

$

In Stock, Qty 16

0

30

Toro NN10253

See Supercession: 57-9350
(Superseded to 57-9350)

$217.99

$

Usually ships in 3-6 days

0

Toro NN10254

See Supercession: 57-9350
(Superseded to 57-9350)

Note: Not illustrated

$217.99

$

Usually ships in 3-6 days

0

31

Toro NN10249

See Supercession: 71-6440
(Superseded to 71-6440)

$

$

Not available

32

Toro NN10248

See Supercession: 71-6430
(Superseded to 71-6430)

$

$

Not available

33

Toro NN10348

See Supercession: 71-6220
(Superseded to 71-6220)

$

$

Not available
