74142 TE (2000) - Toro 48" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 314000001 - 314999999) (2014) Engine, Muffler and Control Panel Assembly Parts Diagram

48" Z Master Zero-Turn Mower, Side-Discharge Deck

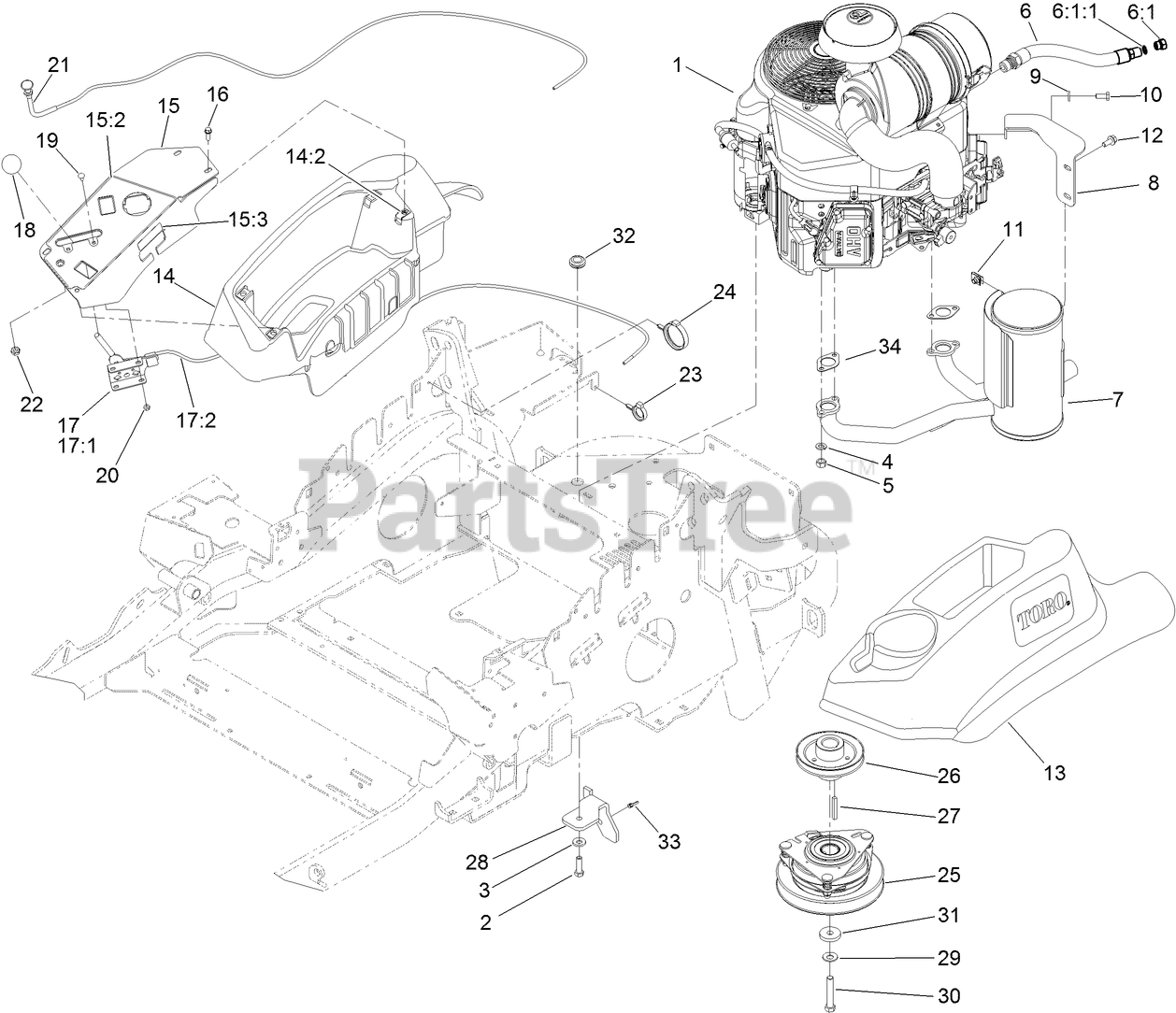

Engine, Muffler and Control Panel Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FX651V-S10-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1

ENGINE-KAWASAKI, FX651V-S10-R

Note: Not serviced separately

$

$

Not available

2

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

4

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

5

Toro 114-3549

NUT

$2.49

$

In Stock, Qty 20+

0

6

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

$42.99

$

In Stock, Qty 6

0

6:1

Toro 353-508

PLUG-HH

$9.49

$

In Stock, only 2 left!

0

6:1:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

7

Toro 119-2645

MUFFLER

$327.99

$

Usually ships in 3-6 days

0

8

Toro 119-2659

BRACKET-MUFFLER

$34.99

$

Usually ships in 3-6 days

0

9

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 20+

0

10

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

11

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 11

0

12

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

13

Toro 119-2602

CONSOLE-LH

$159.99

$

Usually ships in 3-6 days

0

14

Toro 119-2603

RH CONSOLE ASM

$159.99

$

Usually ships in 3-6 days

0

14:2

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 119-2694

CONTROL PANEL ASM

$

$

Not available

15:2

Toro 119-2501

DECAL-PANEL, CONTROL

$29.99

$

Usually ships in 3-6 days

0

15:3

Toro 114-4466

DECAL-FUSES

$6.99

$

Usually ships in 3-6 days

0

16

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

17

Toro 110-5727

THROTTLE CONTROL ASM

$96.99

$

In Stock, only 2 left!

0

17:1

Toro 112-2334

LEVER-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

17:2

Toro 110-5728

See Supercession: 110-5727
(Superseded to 110-5727)

$96.99

$

In Stock, only 2 left!

0

18

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 3 left!

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 115-2753

CONTROL-CHOKE

$71.99

$

In Stock, only 2 left!

0

22

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

23

Toro 105-1853

CLAMP-HOSE

$5.99

$

In Stock, only 2 left!

0

24

Toro 117-7817

CLAMP-HARNESS

$8.99

$

Usually ships in 3-6 days

0

25

Toro 119-2595

CLUTCH

$

$

Not available

26

Toro 119-9915

PULLEY-ENGINE

$88.99

$

Usually ships in 3-6 days

0

27

Toro 608006

KEY-SQUARE

$5.99

$

In Stock, only 2 left!

0

28

Toro 119-2658-01

BRACKET-STOP, CLUTCH

$27.99

$

Usually ships in 3-6 days

0

29

Toro 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

30

Toro 3212-10

SCREW-HH

$6.99

$

In Stock, Qty 11

0

31

Toro 107-4136

WASHER
(Superseded to 1-543610)

$6.99

$

In Stock, Qty 20+

0

32

Toro 112-7069

GROMMET

$3.99

$

Usually ships in 3-6 days

0

33

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

34

Toro 1-653313

GASKET-EXHAUST

$5.99

$

Usually ships in 3-6 days

0
